Century Spring

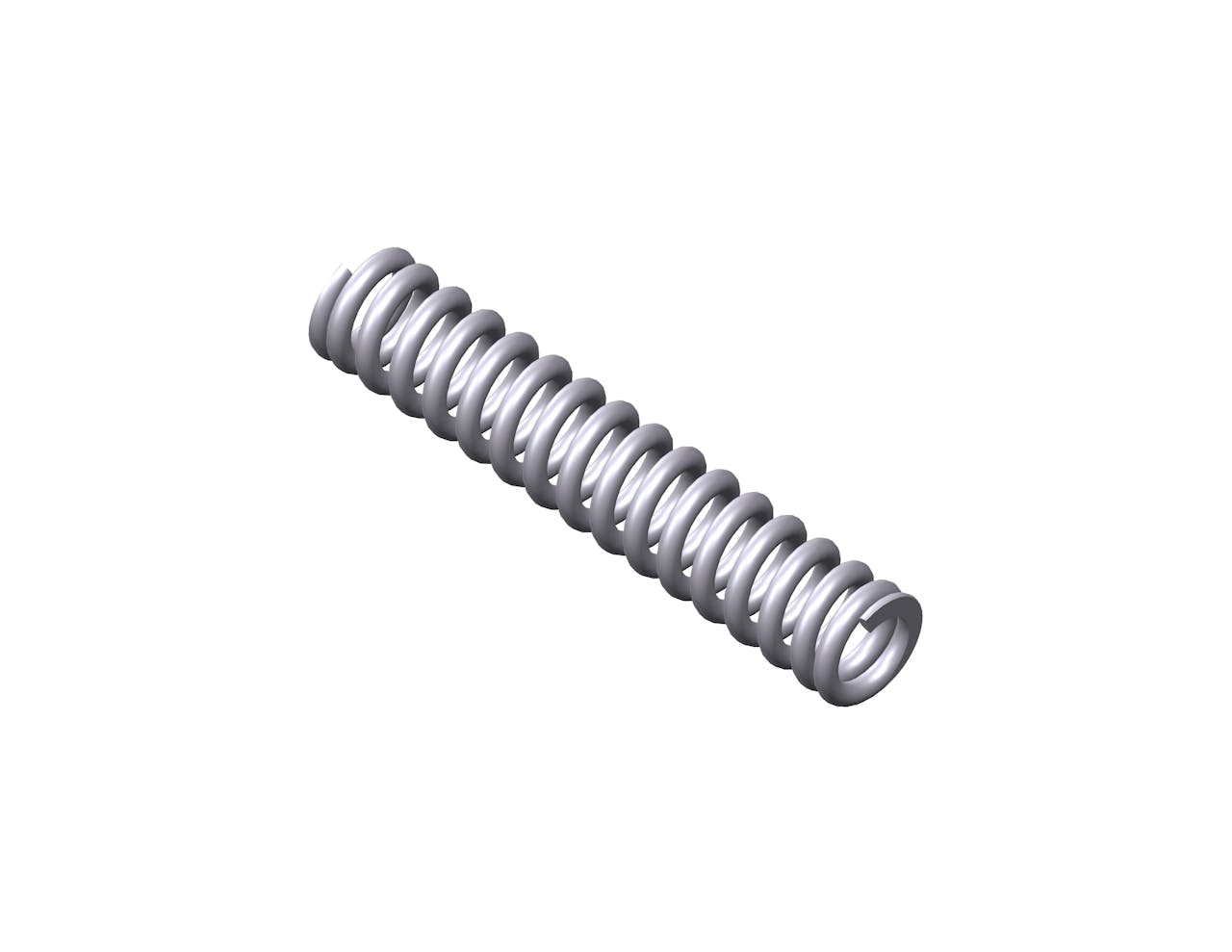

60471SCS - 0.625" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 17 coils and closed & ground ends. This spring features an O.D. of 0.12", and an I.D. of 0.076".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60471S
Ends Closed & Ground
Finish Passivated
Free Length 0.625 in
Inside Diameter 0.076 in
Material 316 Stainless Steel
Outside Diameter 0.12 in
Part Type Standard
Rate 20.83 lbs/in
SKU 60471SCS
Solid Length 0.374 in
Suggested Max Deflection 0.127 in
Suggested Max Load 2.644 lbf
Total Coils 17
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 60471S
Ends Closed & Ground
Finish Passivated
Free Length 15.88 mm
Inside Diameter 1.93 mm
Material 316 Stainless Steel
Outside Diameter 3.05 mm
Part Type Standard
Rate 3.65 N/mm
SKU 60471SCS
Solid Length 9.5 mm
Suggested Max Deflection 3.23 mm
Suggested Max Load 11.76 N
Total Coils 17
Wire Diameter 0.56 mm
The 60471SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.022" diameter 316 stainless steel, the 60471S spring design exhibits reliable strength across its 17 active coils, withstanding repeated compression cycles with a maximum load of 2.644 lbf without succumbing to fatigue.

We manufacture the 60471S design to provide a compression spring that is 0.625" long at rest and provides a consistent rate of 20.83 lbs/in along its recommended maximum of 0.127" deflection. For best results, your application should fully accommodate the inner (0.076") and outer (0.12") diameters of this spring and be designed for its closed & ground end configuration.
