Century Spring

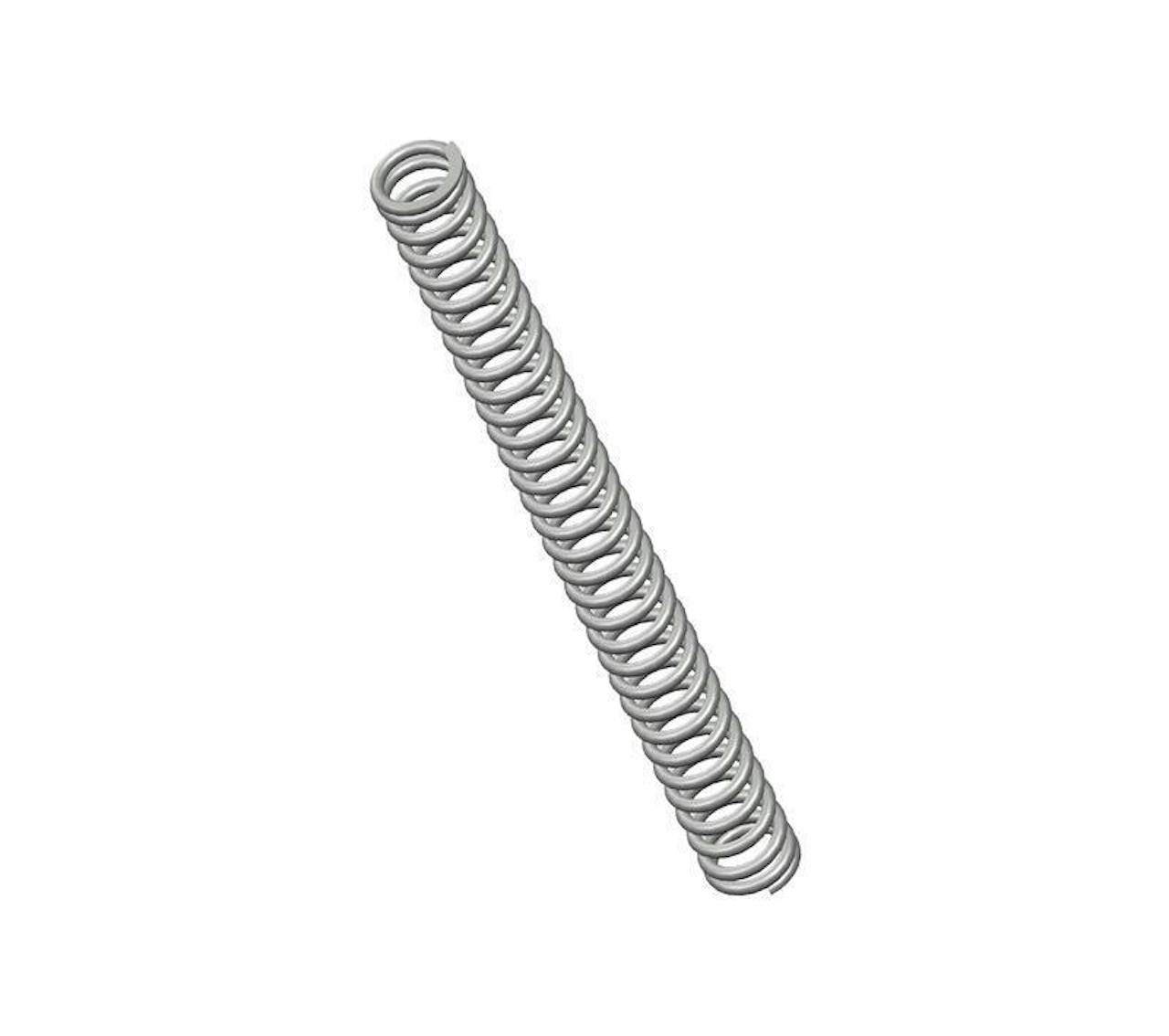

70406CS - 2" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 32.3 coils and closed & ground ends. This spring features an O.D. of 0.18", and an I.D. of 0.128".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 70406
Ends Closed & Ground
Finish None
Free Length 2 in
Inside Diameter 0.128 in
Material Music Wire
Outside Diameter 0.18 in
Part Type Standard
Rate 6 lbs/in
SKU 70406CS
Solid Length 0.84 in
Suggested Max Deflection 0.89 in
Suggested Max Load 5.3 lbf
Total Coils 32.3
Wire Diameter 0.026 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 70406
Ends Closed & Ground
Finish None
Free Length 50.8 mm
Inside Diameter 3.25 mm
Material Music Wire
Outside Diameter 4.57 mm
Part Type Standard
Rate 1.05 N/mm
SKU 70406CS
Solid Length 21.34 mm
Suggested Max Deflection 22.61 mm
Suggested Max Load 23.57 N
Total Coils 32.3
Wire Diameter 0.66 mm
The 70406CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.026" diameter music wire, the 70406 spring design exhibits reliable strength across its 32.3 active coils, withstanding repeated compression cycles with a maximum load of 5.3 lbf without succumbing to fatigue.

We manufacture the 70406 design to provide a compression spring that is 2" long at rest and provides a consistent rate of 6 lbs/in along its recommended maximum of 0.89" deflection. For best results, your application should fully accommodate the inner (0.128") and outer (0.18") diameters of this spring and be designed for its closed & ground end configuration.
