Century Spring

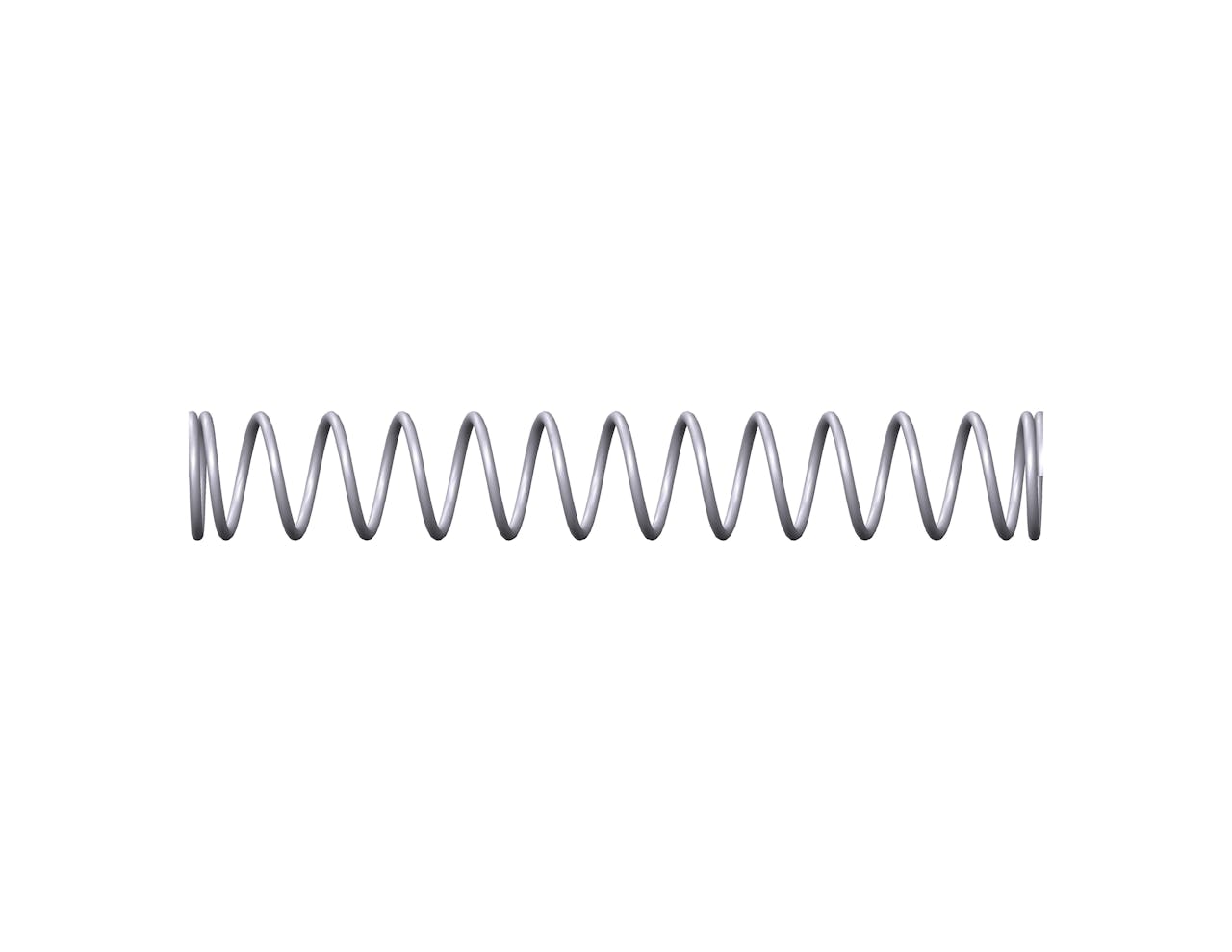

75661SCS - 3.563" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 14.5 coils and closed & ground ends. This spring features an O.D. of 0.541", and an I.D. of 0.441".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75661S
Ends Closed & Ground
Finish None
Free Length 3.563 in
Inside Diameter 0.441 in
Material 302/304 Stainless Steel
Outside Diameter 0.541 in
Part Type Metric
Rate 4.921 lbs/in
SKU 75661SCS
Solid Length 0.714 in
Suggested Max Deflection 1.58 in
Suggested Max Load 7.775 lbf
Total Coils 14.5
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75661S
Ends Closed & Ground
Finish None
Free Length 90.5 mm
Inside Diameter 11.2 mm
Material 302/304 Stainless Steel
Outside Diameter 13.74 mm
Part Type Metric
Rate 0.86 N/mm
SKU 75661SCS
Solid Length 18.14 mm
Suggested Max Deflection 40.13 mm
Suggested Max Load 34.58 N
Total Coils 14.5
Wire Diameter 1.27 mm
The 75661SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.05" diameter 302/304 stainless steel, the 75661S spring design exhibits reliable strength across its 14.5 active coils, withstanding repeated compression cycles with a maximum load of 7.775 lbf without succumbing to fatigue.

We manufacture the 75661S design to provide a compression spring that is 3.563" long at rest and provides a consistent rate of 4.921 lbs/in along its recommended maximum of 1.58" deflection. For best results, your application should fully accommodate the inner (0.441") and outer (0.541") diameters of this spring and be designed for its closed & ground end configuration.
