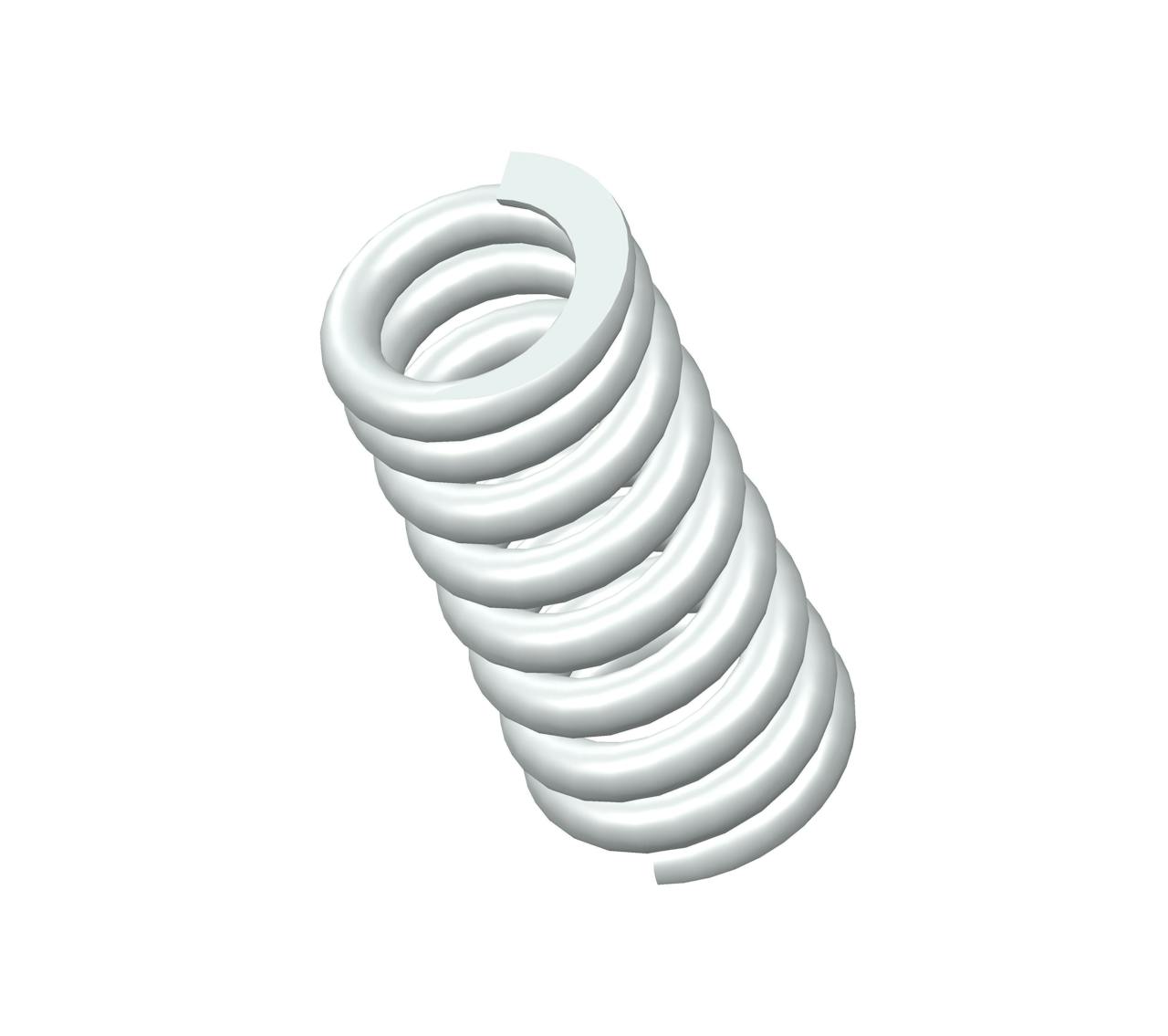

LL-69CS - 0.31" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 8.5 coils and closed & ground ends. This spring features an O.D. of 0.14", and an I.D. of 0.09".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | LL-69 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.31 in |
| Inside Diameter | 0.09 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.14 in |
| Part Type | Standard |
| Rate | 49 lbs/in |
| SKU | LL-69CS |
| Solid Length | 0.21 in |
| Suggested Max Deflection | 0.08 in |
| Suggested Max Load | 4 lbf |
| Total Coils | 8.5 |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | LL-69 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 7.87 mm |
| Inside Diameter | 2.29 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.56 mm |
| Part Type | Standard |
| Rate | 8.58 N/mm |
| SKU | LL-69CS |
| Solid Length | 5.33 mm |
| Suggested Max Deflection | 2.03 mm |
| Suggested Max Load | 17.79 N |
| Total Coils | 8.5 |
| Wire Diameter | 0.64 mm |
The compression spring LL-69CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the LL-69 compression spring design exhibits exceptional tensile strength and resilience.
The LL-69 design is manufactured with a free length of 0.31", with an outer diameter of 0.14", an inner diameter of 0.09", and a total of 8.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 49 lbs/in.
The LL-69CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring LL-69 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The LL-69 design is manufactured with a free length of 0.31", with an outer diameter of 0.14", an inner diameter of 0.09", and a total of 8.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 49 lbs/in.
The LL-69CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring LL-69 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
