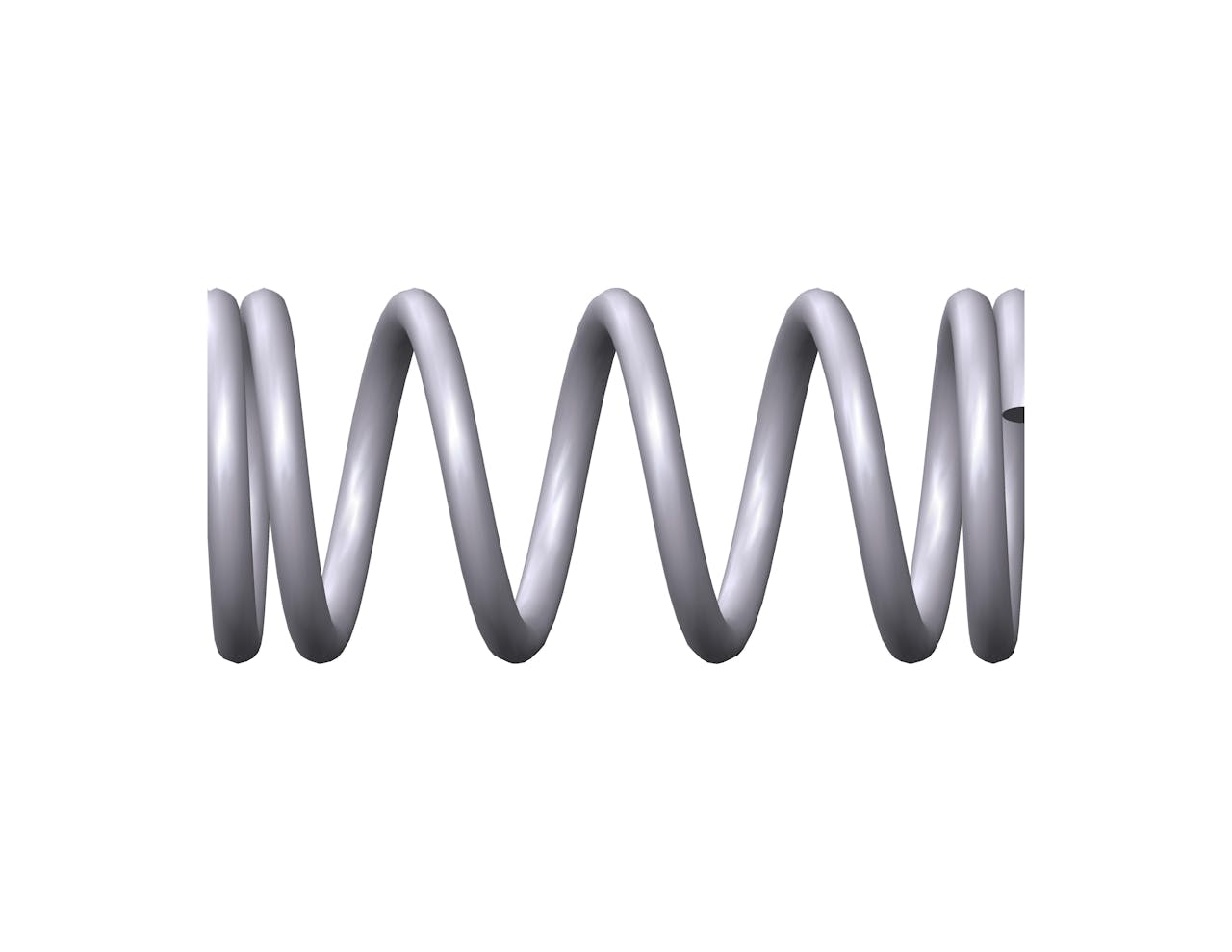

75189SCS - 0.256" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 6.38 coils and closed & ground ends. This spring features an O.D. of 0.118", and an I.D. of 0.09".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75189S
Ends Closed & Ground
Finish None
Free Length 0.256 in
Inside Diameter 0.09 in
Material 302/304 Stainless Steel
Outside Diameter 0.118 in
Part Type Metric
Rate 9.063 lbs/in
SKU 75189SCS
Solid Length 0.094 in
Suggested Max Deflection 0.108 in
Suggested Max Load 0.979 lbf
Total Coils 6.38
Wire Diameter 0.014 in
The compression spring 75189SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 75189S compression spring design exhibits exceptional tensile strength and resilience.

The 75189S design is manufactured with a free length of 0.256", with an outer diameter of 0.118", an inner diameter of 0.09", and a total of 6.38 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.063 lbs/in.

The 75189SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 75189S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
