Century Spring

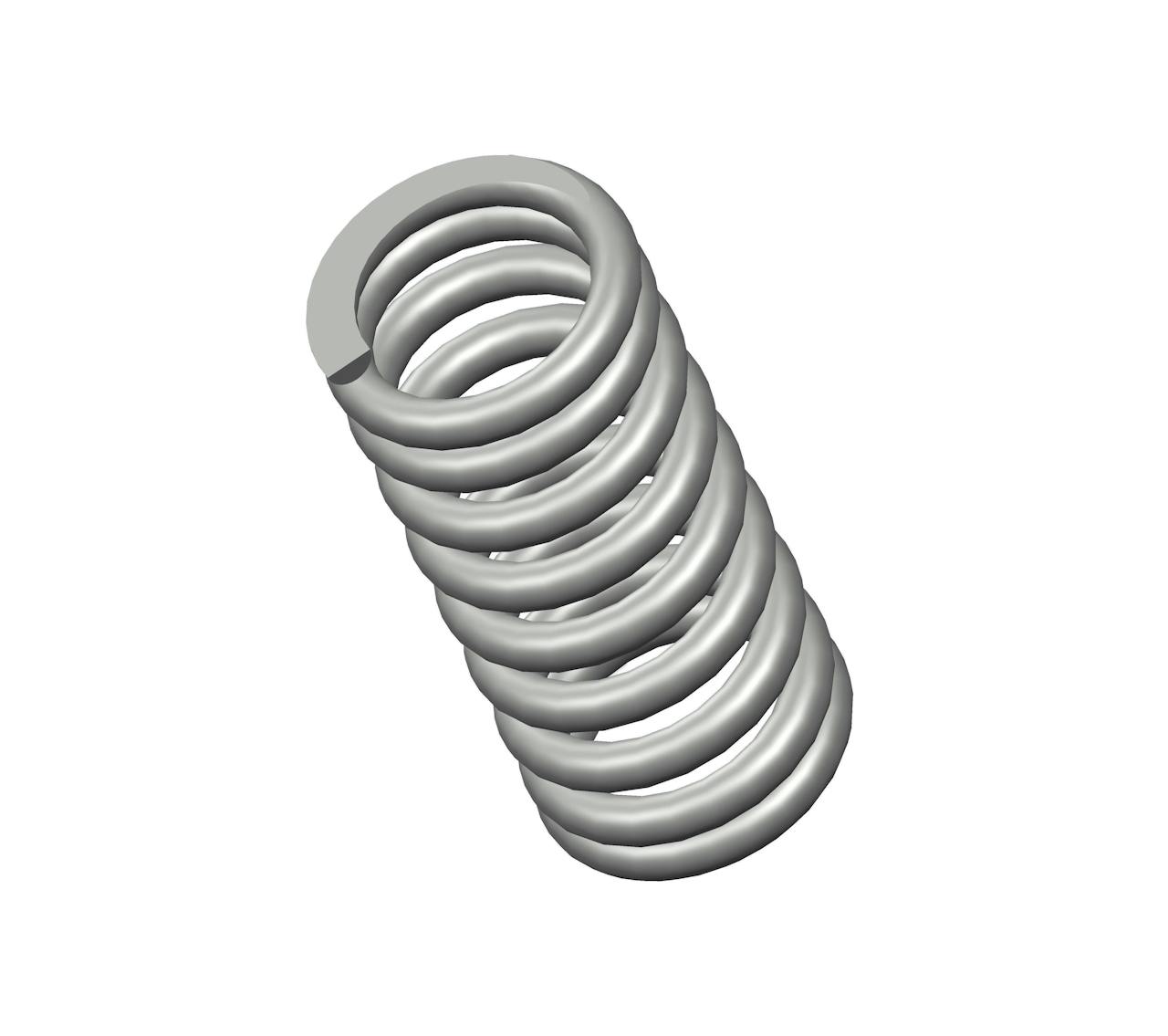

B18-174CS - 3.31" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 9.25 coils and closed & ground ends. This spring features an O.D. of 1.5", and an I.D. of 1.05".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B18-174
Ends Closed & Ground
Finish None
Free Length 3.31 in
Inside Diameter 1.05 in
Material Spring Steel
Outside Diameter 1.5 in
Part Type Standard
Rate 245 lbs/in
SKU B18-174CS
Solid Length 2.08 in
Suggested Max Deflection 0.83 in
Suggested Max Load 203 lbf
Total Coils 9.25
Wire Diameter 0.225 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B18-174
Ends Closed & Ground
Finish None
Free Length 84.07 mm
Inside Diameter 26.67 mm
Material Spring Steel
Outside Diameter 38.1 mm
Part Type Standard
Rate 42.9 N/mm
SKU B18-174CS
Solid Length 52.83 mm
Suggested Max Deflection 21.08 mm
Suggested Max Load 902.94 N
Total Coils 9.25
Wire Diameter 5.72 mm
The B18-174CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.225" diameter spring steel, the B18-174 spring design exhibits reliable strength across its 9.25 active coils, withstanding repeated compression cycles with a maximum load of 203 lbf without succumbing to fatigue.

We manufacture the B18-174 design to provide a compression spring that is 3.31" long at rest and provides a consistent rate of 245 lbs/in along its recommended maximum of 0.83" deflection. For best results, your application should fully accommodate the inner (1.05") and outer (1.5") diameters of this spring and be designed for its closed & ground end configuration.
