Century Spring

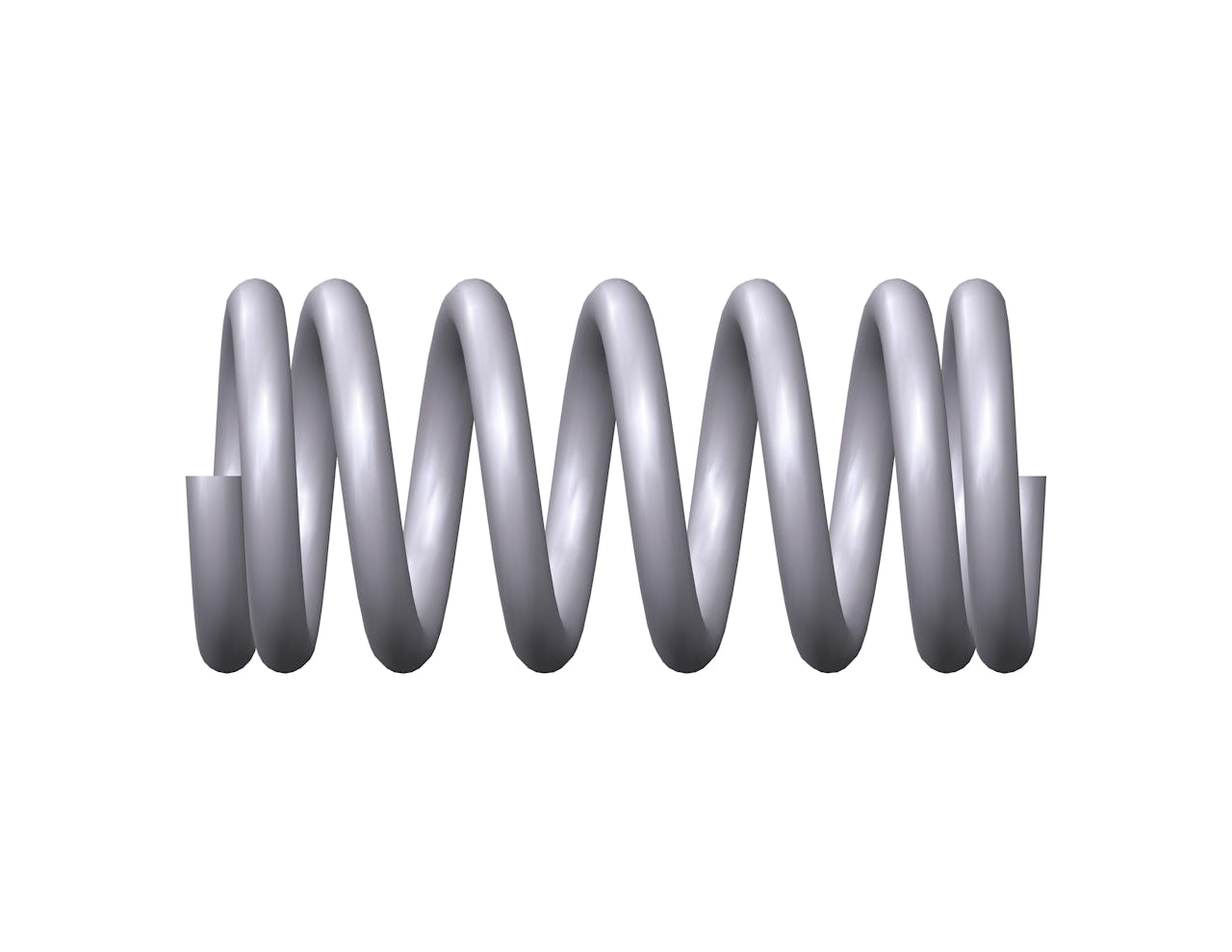

75170SCS - 0.248" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed ends. This spring features an O.D. of 0.114", and an I.D. of 0.082".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75170S
Ends Closed
Finish None
Free Length 0.248 in
Inside Diameter 0.082 in
Material 302/304 Stainless Steel
Outside Diameter 0.114 in
Part Type Metric
Rate 14.66 lbs/in
SKU 75170SCS
Solid Length 0.134 in
Suggested Max Deflection 0.092 in
Suggested Max Load 1.349 lbf
Total Coils 7.5
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75170S
Ends Closed
Finish None
Free Length 6.3 mm
Inside Diameter 2.08 mm
Material 302/304 Stainless Steel
Outside Diameter 2.9 mm
Part Type Metric
Rate 2.57 N/mm
SKU 75170SCS
Solid Length 3.4 mm
Suggested Max Deflection 2.34 mm
Suggested Max Load 6 N
Total Coils 7.5
Wire Diameter 0.41 mm
The 75170S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75170SCS compression spring is designed with a free length of 0.248" total of 7.5 coils, and a rate of 17.592 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75170S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
