76315CS - 1.969" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

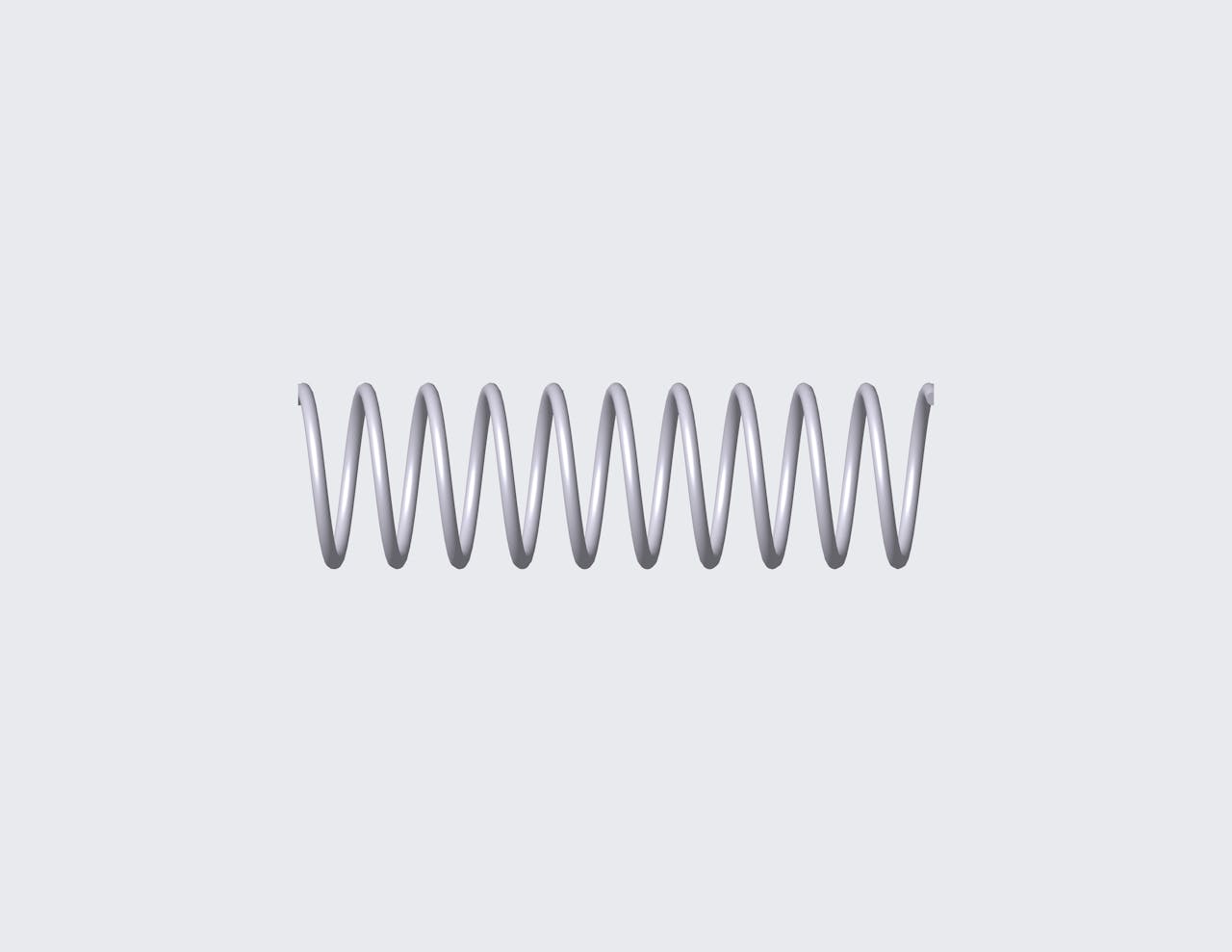

Compression spring manufactured from music wire with 9.9 coils and closed & ground ends. This spring features an O.D. of 0.579", and an I.D. of 0.484".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76315
Ends Closed & Ground
Finish None
Free Length 1.969 in
Inside Diameter 0.484 in
Material Music Wire
Outside Diameter 0.579 in
Part Type Metric
Rate 6.038 lbs/in
SKU 76315CS
Solid Length 0.468 in
Suggested Max Deflection 1.591 in
Suggested Max Load 9.603 lbf
Total Coils 9.9
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76315
Ends Closed & Ground
Finish None
Free Length 50.01 mm
Inside Diameter 12.29 mm
Material Music Wire
Outside Diameter 14.71 mm
Part Type Metric
Rate 1.06 N/mm
SKU 76315CS
Solid Length 11.89 mm
Suggested Max Deflection 40.41 mm
Suggested Max Load 42.71 N
Total Coils 9.9
Wire Diameter 1.19 mm
The 76315CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter music wire, the 76315 spring design exhibits reliable strength across its 9.9 active coils, withstanding repeated compression cycles with a maximum load of 9.603 lbf without succumbing to fatigue.

We manufacture the 76315 design to provide a compression spring that is 1.969" long at rest and provides a consistent rate of 6.038 lbs/in along its recommended maximum of 1.591" deflection. For best results, your application should fully accommodate the inner (0.484") and outer (0.579") diameters of this spring and be designed for its closed & ground end configuration.
