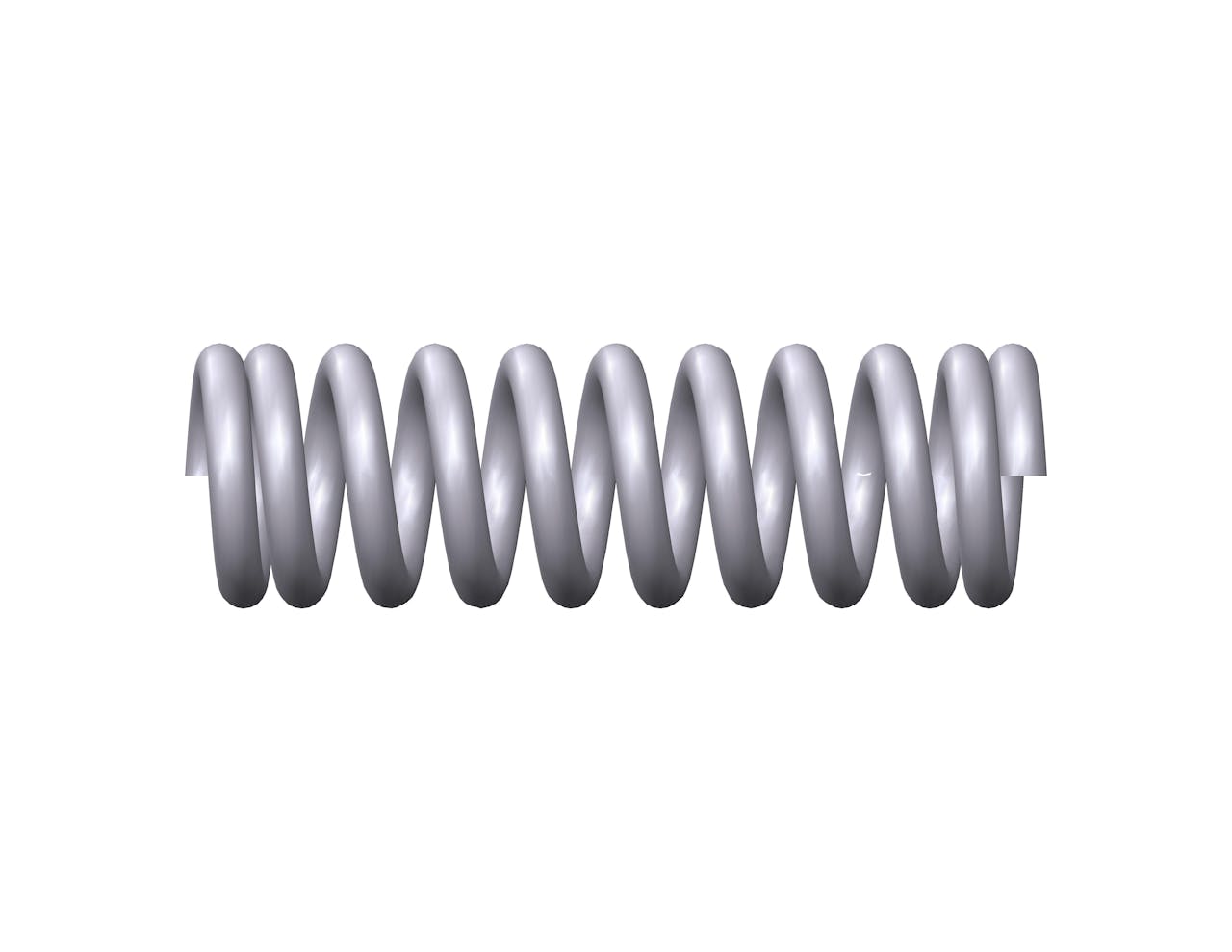

75097SCS - 0.185" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10.5 coils and closed ends. This spring features an O.D. of 0.057", and an I.D. of 0.037".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75097S |
| Ends | Closed |
| Finish | None |
| Free Length | 0.185 in |
| Inside Diameter | 0.037 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.057 in |
| Part Type | Metric |
| Rate | 13.088 lbs/in |
| SKU | 75097SCS |
| Solid Length | 0.113 in |
| Suggested Max Deflection | 0.051 in |
| Suggested Max Load | 0.667 lbf |
| Total Coils | 10.5 |
| Wire Diameter | 0.01 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75097S |
| Ends | Closed |
| Finish | None |
| Free Length | 4.7 mm |
| Inside Diameter | 0.94 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.45 mm |
| Part Type | Metric |
| Rate | 2.29 N/mm |
| SKU | 75097SCS |
| Solid Length | 2.87 mm |
| Suggested Max Deflection | 1.3 mm |
| Suggested Max Load | 2.97 N |
| Total Coils | 10.5 |
| Wire Diameter | 0.25 mm |
The 75097SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.01" diameter 302/304 stainless steel, the 75097S spring design exhibits reliable strength across its 10.5 active coils, withstanding repeated compression cycles with a maximum load of 0.667 lbf without succumbing to fatigue.
We manufacture the 75097S design to provide a compression spring that is 0.185" long at rest and provides a consistent rate of 13.088 lbs/in along its recommended maximum of 0.051" deflection. For best results, your application should fully accommodate the inner (0.037") and outer (0.057") diameters of this spring and be designed for its closed end configuration.
