Century Spring

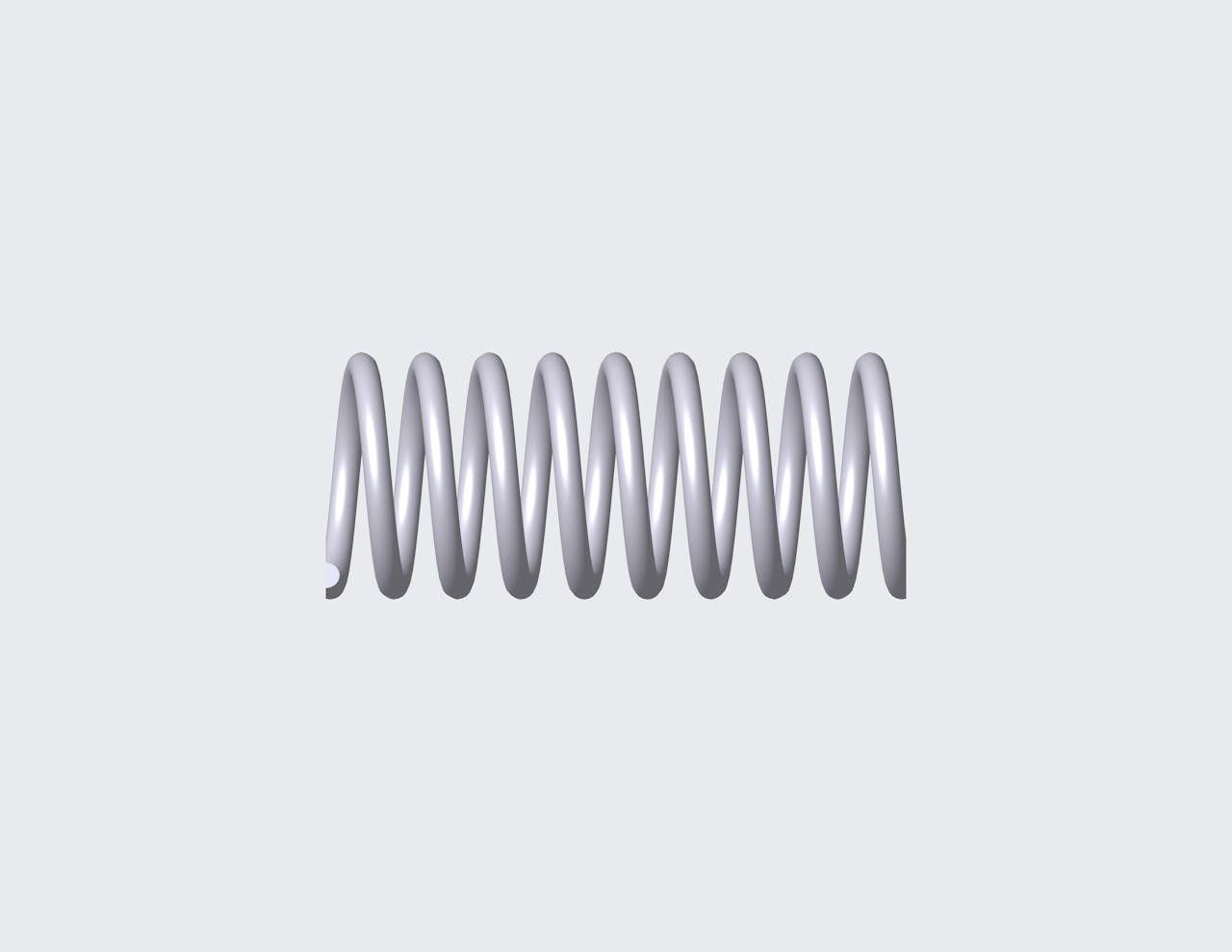

50293SCS - 0.984" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 8.7 coils and closed & ground ends. This spring features an O.D. of 0.419", and an I.D. of 0.325".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50293S
Ends Closed & Ground
Finish Passivated
Free Length 0.984 in
Inside Diameter 0.325 in
Material 316 Stainless Steel
Outside Diameter 0.419 in
Rate 18.048 lbs/in
SKU 50293SCS
Solid Length 0.411 in
Suggested Max Deflection 0.409 in
Suggested Max Load 7.377 lbf
Total Coils 8.7
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50293S
Ends Closed & Ground
Finish Passivated
Free Length 24.99 mm
Inside Diameter 8.26 mm
Material 316 Stainless Steel
Outside Diameter 10.64 mm
Rate 3.16 N/mm
SKU 50293SCS
Solid Length 10.44 mm
Suggested Max Deflection 10.39 mm
Suggested Max Load 32.81 N
Total Coils 8.7
Wire Diameter 1.19 mm
The 50293SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter 316 stainless steel, the 50293S spring design exhibits reliable strength across its 8.7 active coils, withstanding repeated compression cycles with a maximum load of 7.377 lbf without succumbing to fatigue.

We manufacture the 50293S design to provide a compression spring that is 0.984" long at rest and provides a consistent rate of 18.048 lbs/in along its recommended maximum of 0.409" deflection. For best results, your application should fully accommodate the inner (0.325") and outer (0.419") diameters of this spring and be designed for its closed & ground end configuration.
