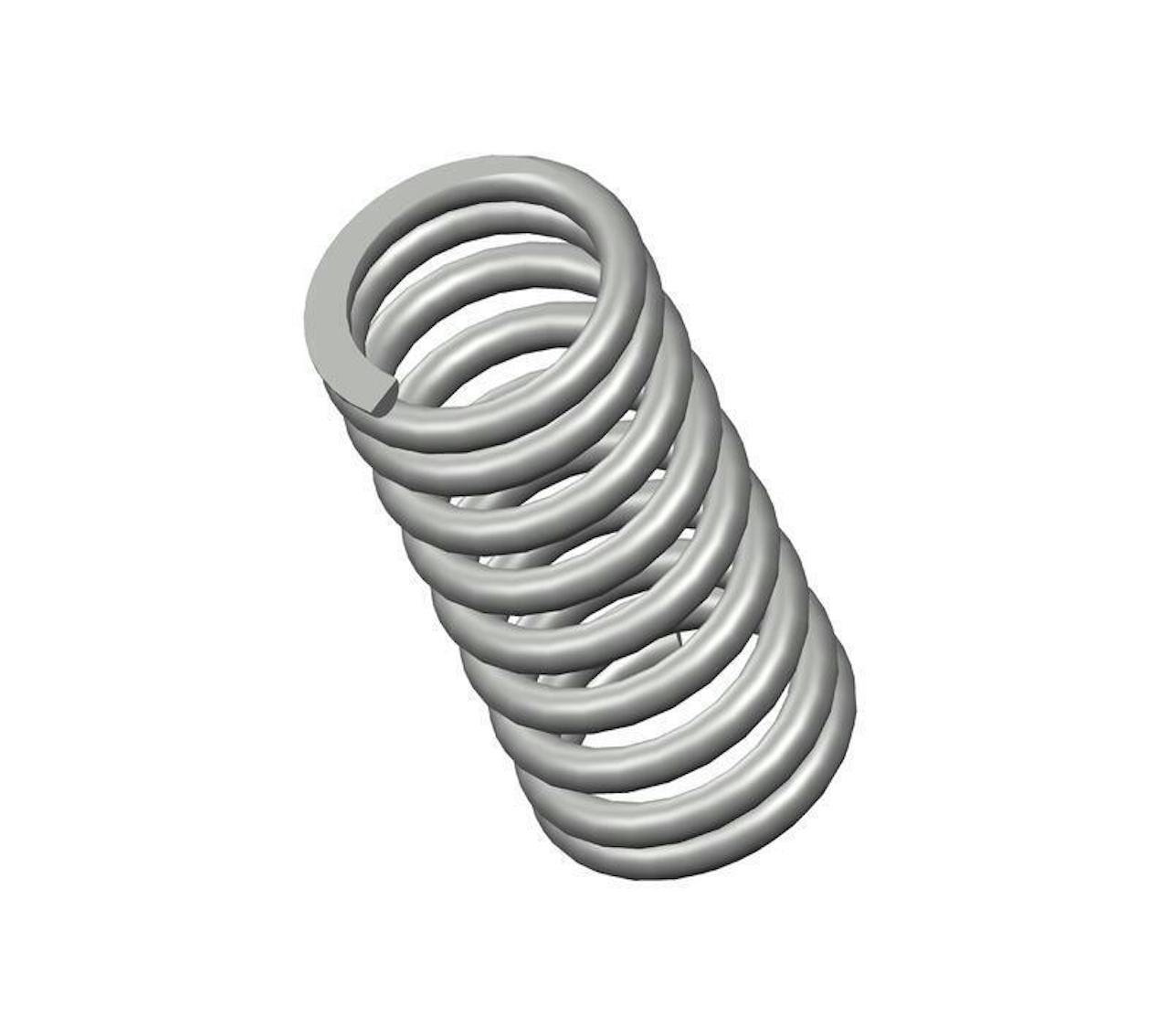

73629CS - 10" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 9.38 coils and closed & ground ends. This spring features an O.D. of 4.687", and an I.D. of 3.437".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73629
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 3.437 in
Material Oil Tempered
Outside Diameter 4.687 in
Part Type Standard
Rate 444 lbs/in
SKU 73629CS
Solid Length 5.86 in
Suggested Max Deflection 2.9 in
Suggested Max Load 1294 lbf
Total Coils 9.38
Wire Diameter 0.625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73629
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 87.3 mm
Material Oil Tempered
Outside Diameter 119.05 mm
Part Type Standard
Rate 77.74 N/mm
SKU 73629CS
Solid Length 148.84 mm
Suggested Max Deflection 73.66 mm
Suggested Max Load 5755.71 N
Total Coils 9.38
Wire Diameter 15.88 mm
The compression spring 73629CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73629 compression spring design exhibits exceptional tensile strength and resilience.

The 73629 design is manufactured with a free length of 10", with an outer diameter of 4.687", an inner diameter of 3.437", and a total of 9.38 coils, expertly designed to deliver consistent compression characteristics including a rate of 444 lbs/in.

The 73629CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73629 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
