Century Spring

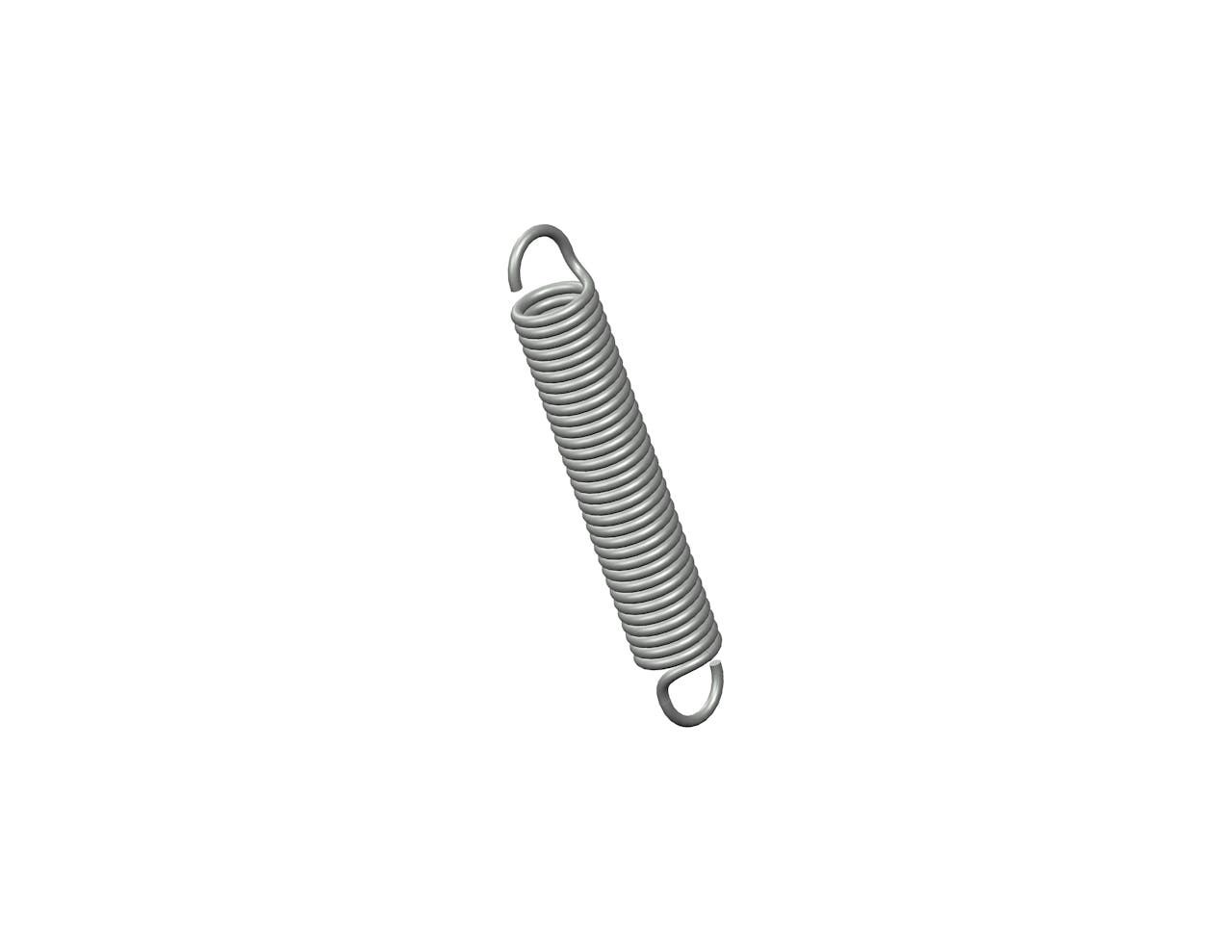

626CS - 8 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 1.25 Inch and an initial tension of 33 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 626
Ends Machine Hook
Finish Zinc
Initial Tension 33 lb
Length 8 in
Material High Carbon Steel
Outside Diameter 1.25 in
Part Type Standard
Rate 32 lbs/in
SKU 626CS
Sugg Max Deflection 3.2 in
Sugg Max Load 134 lbf
Wind Direction Left
Wire Diameter 0.177 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 626
Ends Machine Hook
Finish Zinc
Initial Tension 14.97 kg
Length 203.2 mm
Material High Carbon Steel
Outside Diameter 31.75 mm
Part Type Standard
Rate 5.6 N/mm
SKU 626CS
Sugg Max Deflection 81.28 mm
Sugg Max Load 596.03 N
Wind Direction Left
Wire Diameter 4.5 mm
