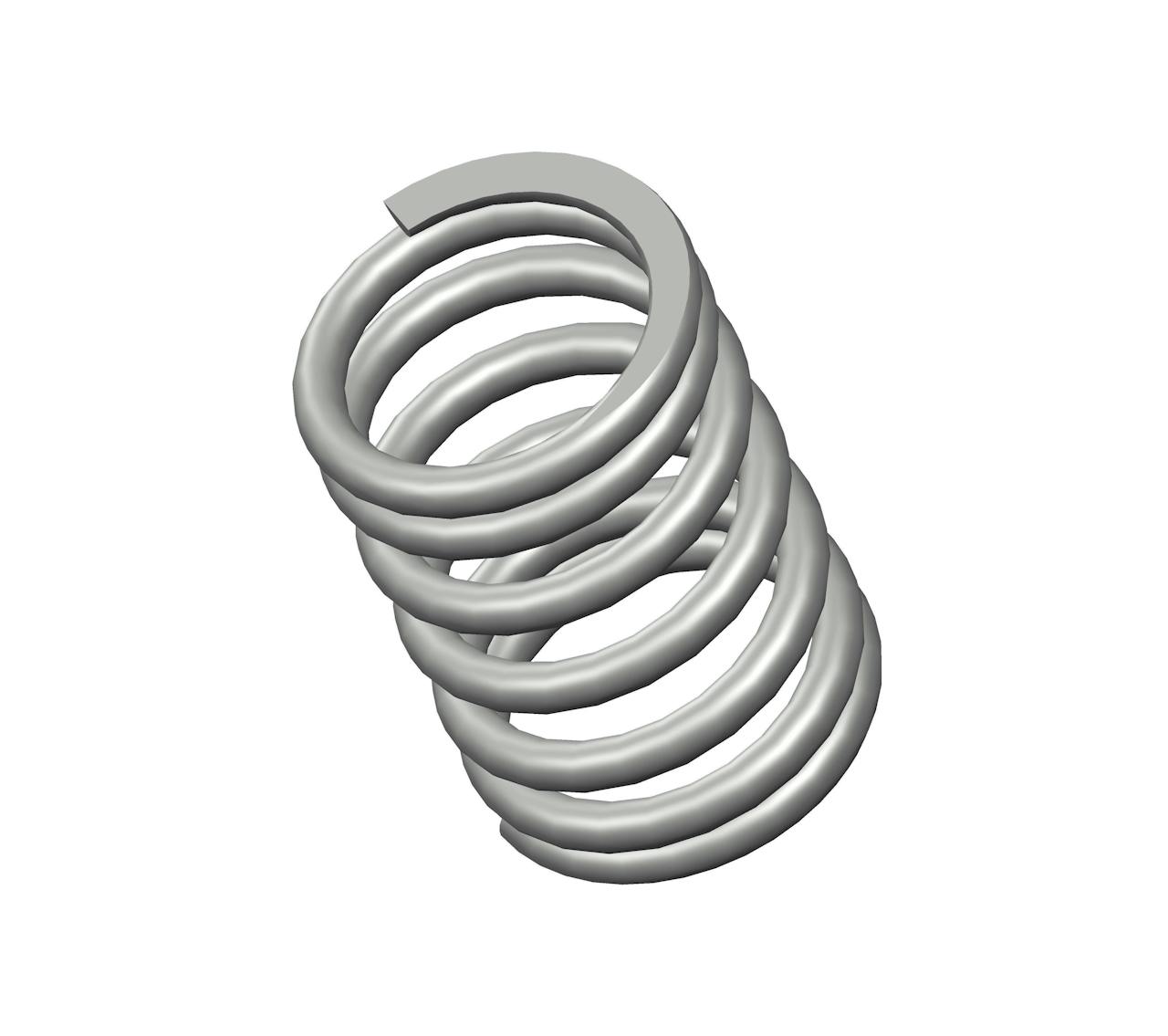

73513CS - 6" Oil Tempered Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from oil tempered with 6.75 coils and closed & ground ends. This spring features an O.D. of 4.156", and an I.D. of 3.156".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73513 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 6 in |
| Inside Diameter | 3.156 in |
| Material | Oil Tempered |
| Outside Diameter | 4.156 in |
| Part Type | Standard |
| Rate | 387 lbs/in |
| SKU | 73513CS |
| Solid Length | 3.38 in |
| Suggested Max Deflection | 2 in |
| Suggested Max Load | 778 lbf |
| Total Coils | 6.75 |
| Wire Diameter | 0.5 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73513 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 152.4 mm |
| Inside Diameter | 80.16 mm |
| Material | Oil Tempered |
| Outside Diameter | 105.56 mm |
| Part Type | Standard |
| Rate | 67.76 N/mm |
| SKU | 73513CS |
| Solid Length | 85.85 mm |
| Suggested Max Deflection | 50.8 mm |
| Suggested Max Load | 3460.54 N |
| Total Coils | 6.75 |
| Wire Diameter | 12.7 mm |
The 73513 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 73513CS compression spring is designed with a free length of 16" total of 15.3 coils, and a rate of 104 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 73513 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 73513CS compression spring is designed with a free length of 16" total of 15.3 coils, and a rate of 104 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 73513 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
