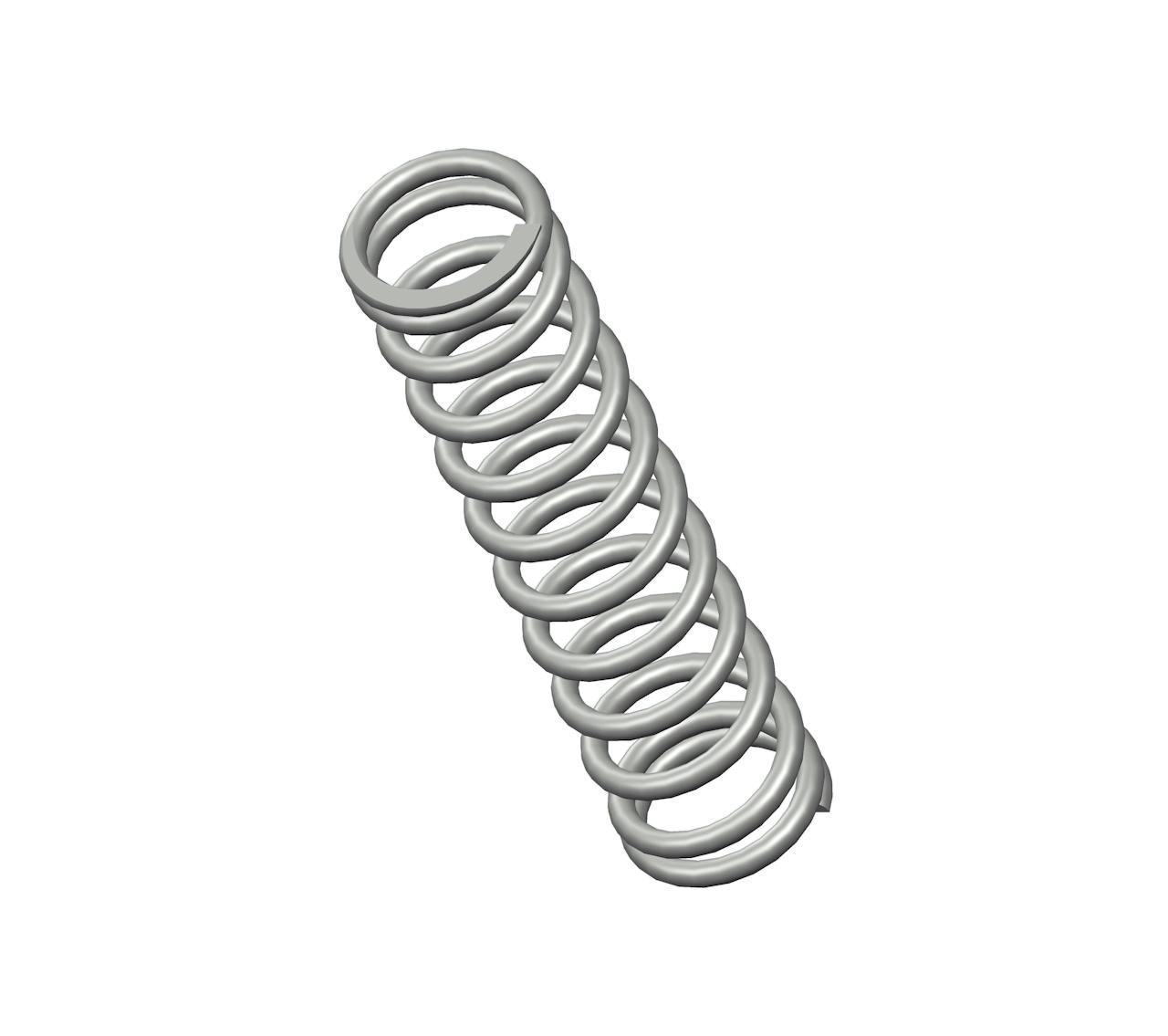

3259CS - 8.88" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 12 coils and closed & ground ends. This spring features an O.D. of 2.062", and an I.D. of 1.538".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3259
Ends Closed & Ground
Finish Zinc
Free Length 8.88 in
Inside Diameter 1.538 in
Material Oil Tempered
Outside Diameter 2.062 in
Part Type Standard
Rate 116 lbs/in
SKU 3259CS
Solid Length 3.14 in
Suggested Max Deflection 2.2 in
Suggested Max Load 258 lbf
Total Coils 12
Wire Diameter 0.262 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3259
Ends Closed & Ground
Finish Zinc
Free Length 225.55 mm
Inside Diameter 39.07 mm
Material Oil Tempered
Outside Diameter 52.37 mm
Part Type Standard
Rate 20.31 N/mm
SKU 3259CS
Solid Length 79.76 mm
Suggested Max Deflection 55.88 mm
Suggested Max Load 1147.58 N
Total Coils 12
Wire Diameter 6.65 mm
The 3259CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.262" diameter oil tempered, the 3259 spring design exhibits reliable strength across its 12 active coils, withstanding repeated compression cycles with a maximum load of 258 lbf without succumbing to fatigue.

We manufacture the 3259 design to provide a compression spring that is 8.88" long at rest and provides a consistent rate of 116 lbs/in along its recommended maximum of 2.2" deflection. For best results, your application should fully accommodate the inner (1.538") and outer (2.062") diameters of this spring and be designed for its closed & ground end configuration.
