Century Spring

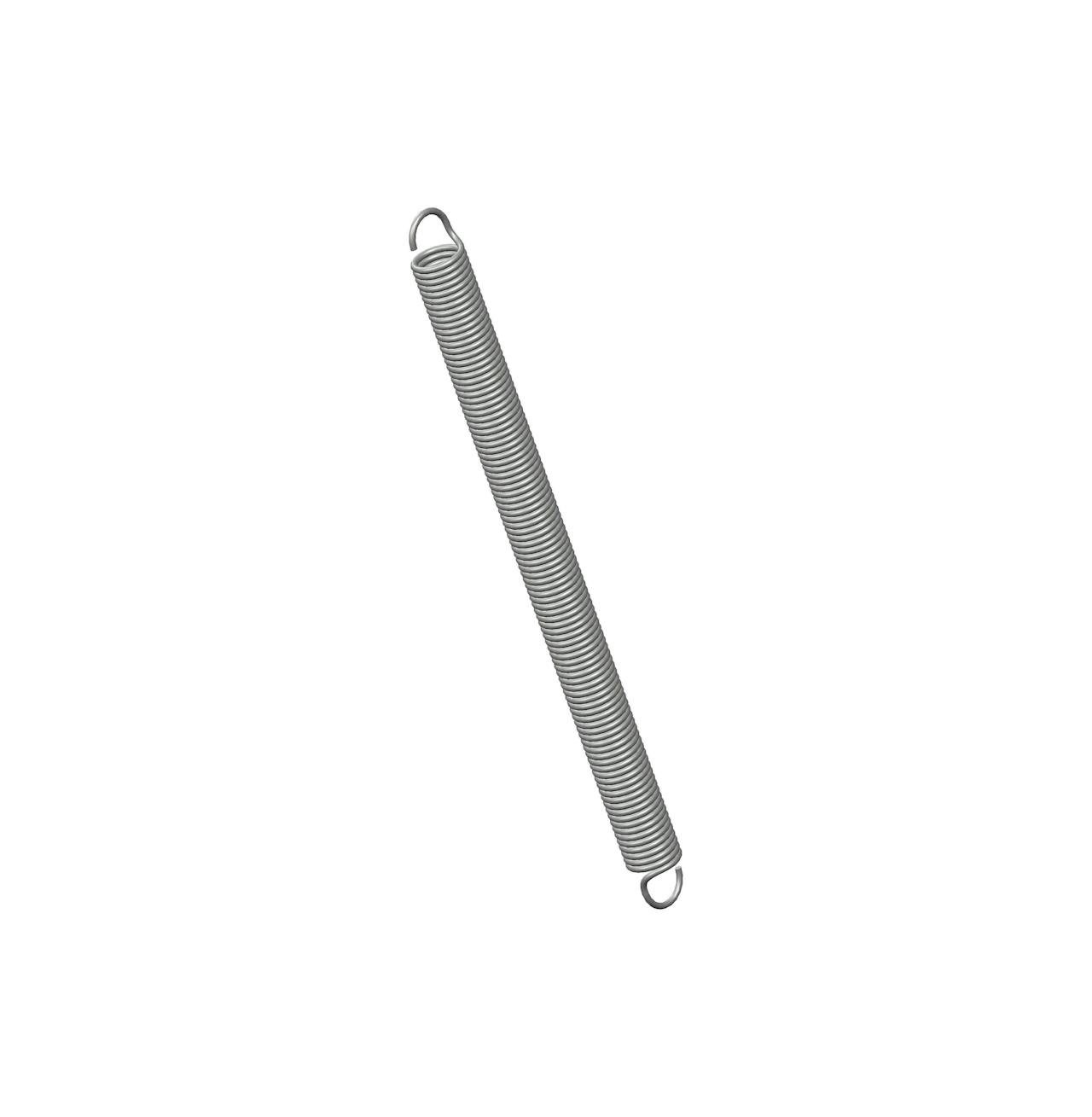

5191CS - 3.94 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.281 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5191
Ends Machine Hook
Finish Zinc
Initial Tension 1 lb
Length 3.94 in
Material Music Wire
Outside Diameter 0.281 in
Part Type Standard
Rate 1.5 lbs/in
SKU 5191CS
Sugg Max Deflection 4.4 in
Sugg Max Load 7.4 lbf
Wind Direction Left
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5191
Ends Machine Hook
Finish Zinc
Initial Tension 0.45 kg
Length 100.08 mm
Material Music Wire
Outside Diameter 7.14 mm
Part Type Standard
Rate 0.26 N/mm
SKU 5191CS
Sugg Max Deflection 111.76 mm
Sugg Max Load 32.92 N
Wind Direction Left
Wire Diameter 0.89 mm
