73223CS - 10" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

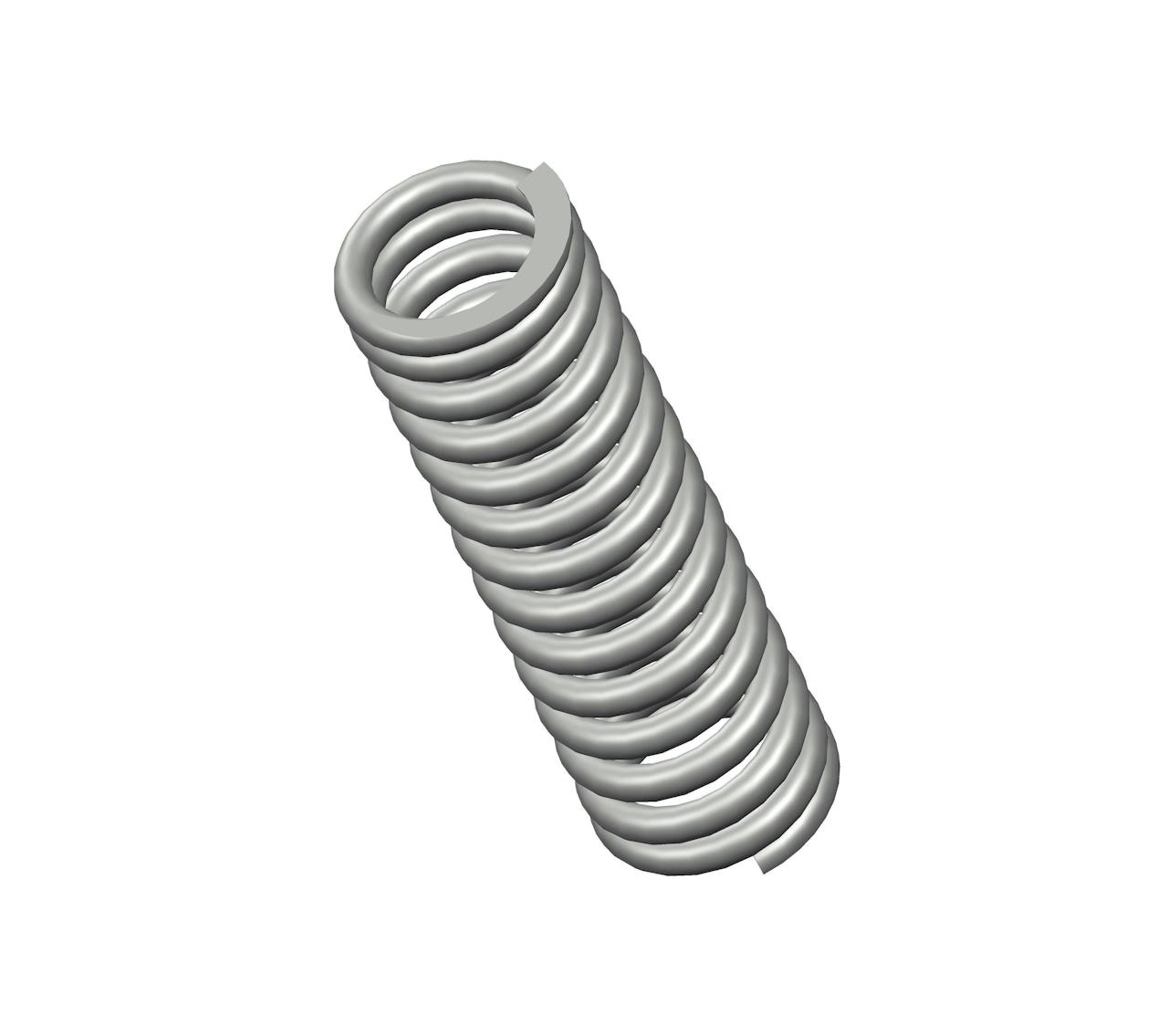

Compression spring manufactured from oil tempered with 14.3 coils and closed & ground ends. This spring features an O.D. of 2.906", and an I.D. of 2.032".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73223
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 2.032 in
Material Oil Tempered
Outside Diameter 2.906 in
Part Type Standard
Rate 284 lbs/in
SKU 73223CS
Solid Length 6.23 in
Suggested Max Deflection 2.7 in
Suggested Max Load 757 lbf
Total Coils 14.3
Wire Diameter 0.437 in
The 73223CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.437" diameter oil tempered, the 73223 spring design exhibits reliable strength across its 14.3 active coils, withstanding repeated compression cycles with a maximum load of 757 lbf without succumbing to fatigue.

We manufacture the 73223 design to provide a compression spring that is 10" long at rest and provides a consistent rate of 284 lbs/in along its recommended maximum of 2.7" deflection. For best results, your application should fully accommodate the inner (2.032") and outer (2.906") diameters of this spring and be designed for its closed & ground end configuration.
