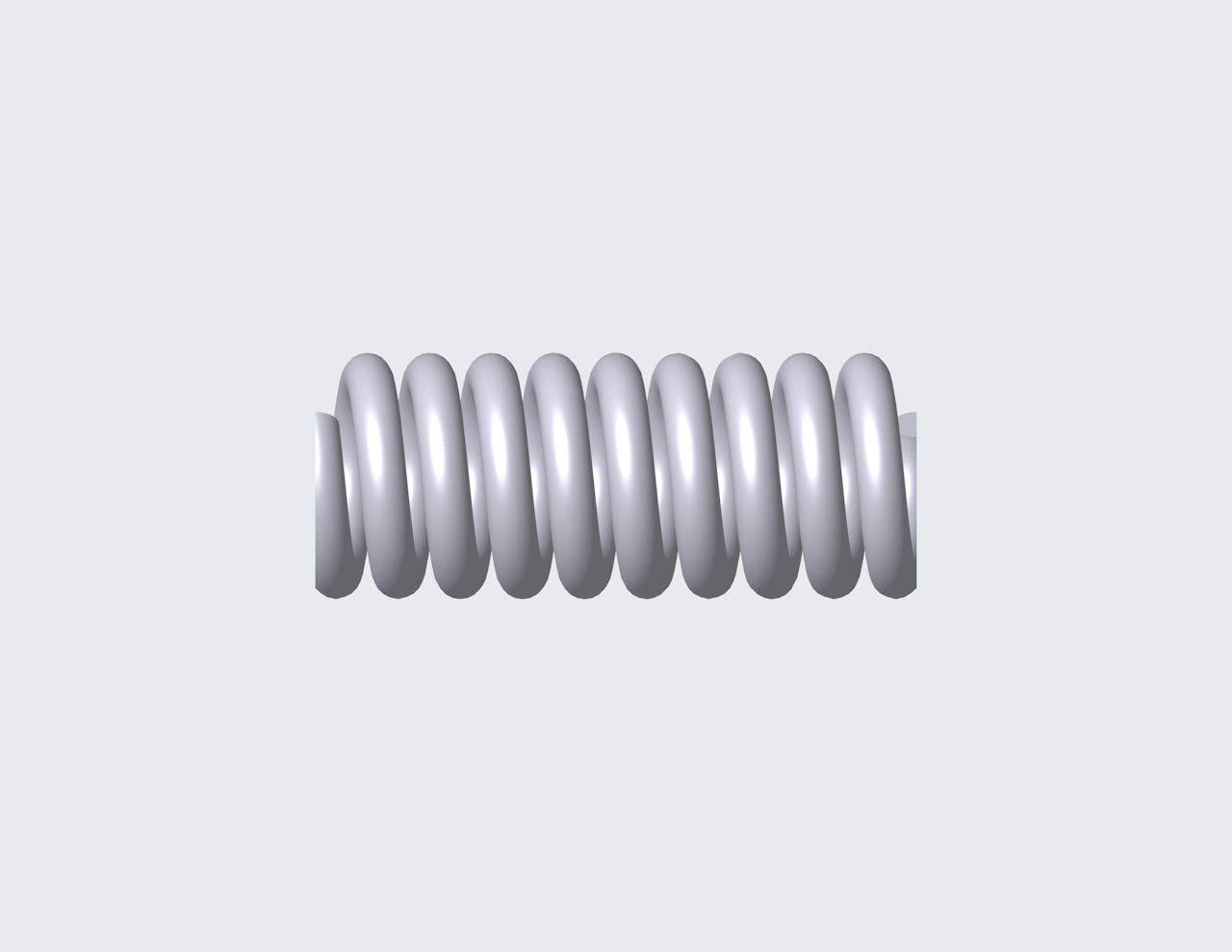

76120CS - 0.984" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 8.9 coils and closed & ground ends. This spring features an O.D. of 0.404", and an I.D. of 0.246".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76120 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.984 in |
| Inside Diameter | 0.246 in |
| Material | Music Wire |
| Outside Diameter | 0.404 in |
| Part Type | Metric |
| Rate | 233.714 lbs/in |
| SKU | 76120CS |
| Solid Length | 0.701 in |
| Suggested Max Deflection | 0.232 in |
| Suggested Max Load | 54.301 lbf |
| Total Coils | 8.9 |
| Wire Diameter | 0.079 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76120 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 24.99 mm |
| Inside Diameter | 6.25 mm |
| Material | Music Wire |
| Outside Diameter | 10.26 mm |
| Part Type | Metric |
| Rate | 40.92 N/mm |
| SKU | 76120CS |
| Solid Length | 17.81 mm |
| Suggested Max Deflection | 5.89 mm |
| Suggested Max Load | 241.53 N |
| Total Coils | 8.9 |
| Wire Diameter | 2.01 mm |
The 76120CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.079" diameter music wire, the 76120 spring design exhibits reliable strength across its 8.9 active coils, withstanding repeated compression cycles with a maximum load of 54.301 lbf without succumbing to fatigue.
We manufacture the 76120 design to provide a compression spring that is 0.984" long at rest and provides a consistent rate of 233.714 lbs/in along its recommended maximum of 0.232" deflection. For best results, your application should fully accommodate the inner (0.246") and outer (0.404") diameters of this spring and be designed for its closed & ground end configuration.
We manufacture the 76120 design to provide a compression spring that is 0.984" long at rest and provides a consistent rate of 233.714 lbs/in along its recommended maximum of 0.232" deflection. For best results, your application should fully accommodate the inner (0.246") and outer (0.404") diameters of this spring and be designed for its closed & ground end configuration.
