Century Spring

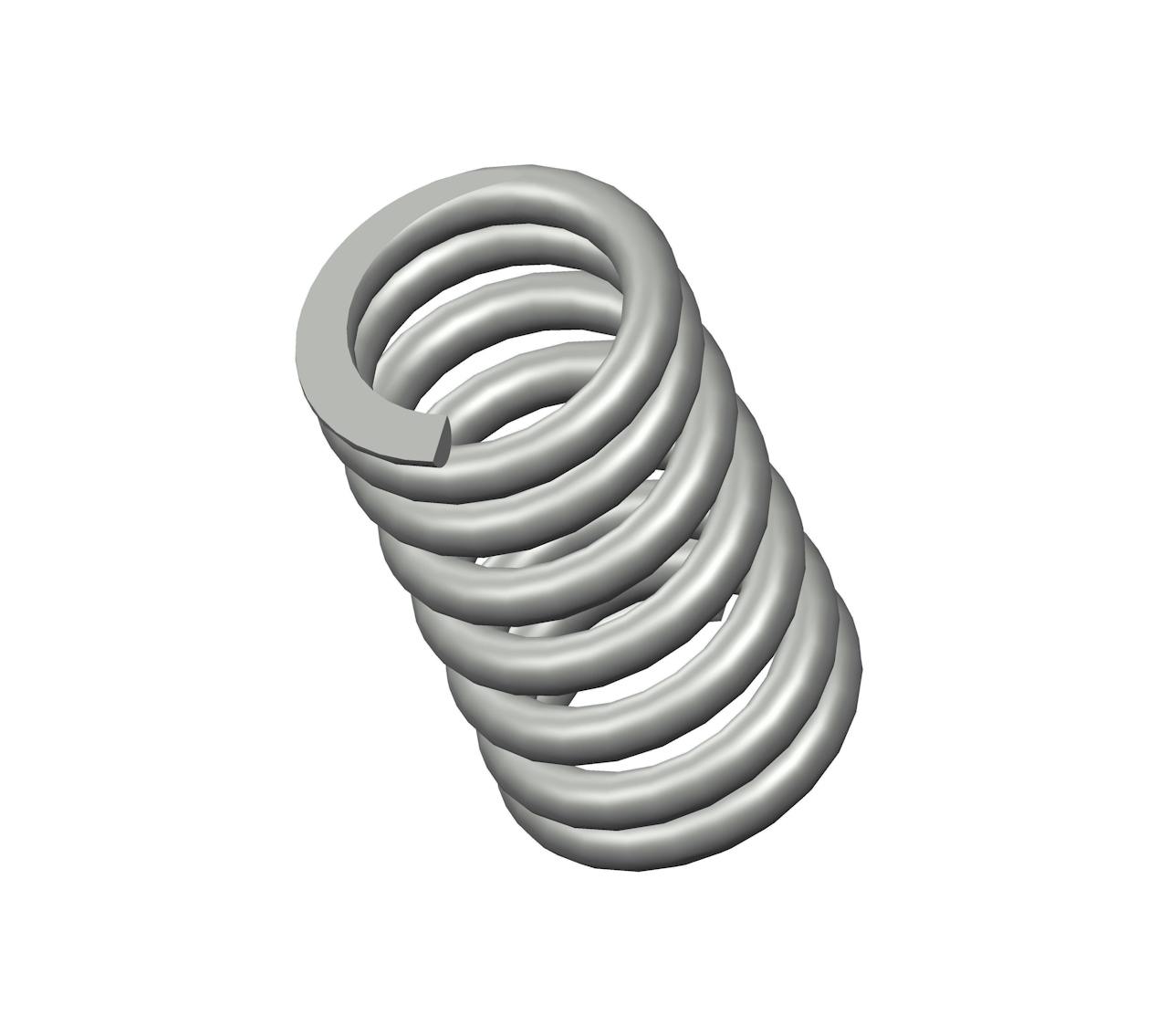

73219CS - 5" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 7.5 coils and closed & ground ends. This spring features an O.D. of 2.906", and an I.D. of 2.032".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73219
Ends Closed & Ground
Finish None
Free Length 5 in
Inside Diameter 2.032 in
Material Oil Tempered
Outside Diameter 2.906 in
Part Type Standard
Rate 633 lbs/in
SKU 73219CS
Solid Length 3.28 in
Suggested Max Deflection 1.2 in
Suggested Max Load 757 lbf
Total Coils 7.5
Wire Diameter 0.437 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73219
Ends Closed & Ground
Finish None
Free Length 127 mm
Inside Diameter 51.61 mm
Material Oil Tempered
Outside Diameter 73.81 mm
Part Type Standard
Rate 110.84 N/mm
SKU 73219CS
Solid Length 83.31 mm
Suggested Max Deflection 30.48 mm
Suggested Max Load 3367.14 N
Total Coils 7.5
Wire Diameter 11.1 mm
The 73219 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73219CS compression spring is designed with a free length of 12" total of 17.3 coils, and a rate of 163 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73219 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
