TO-5205RCS - 315 Degree, 0.0392 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory:
Estimated Lead Time

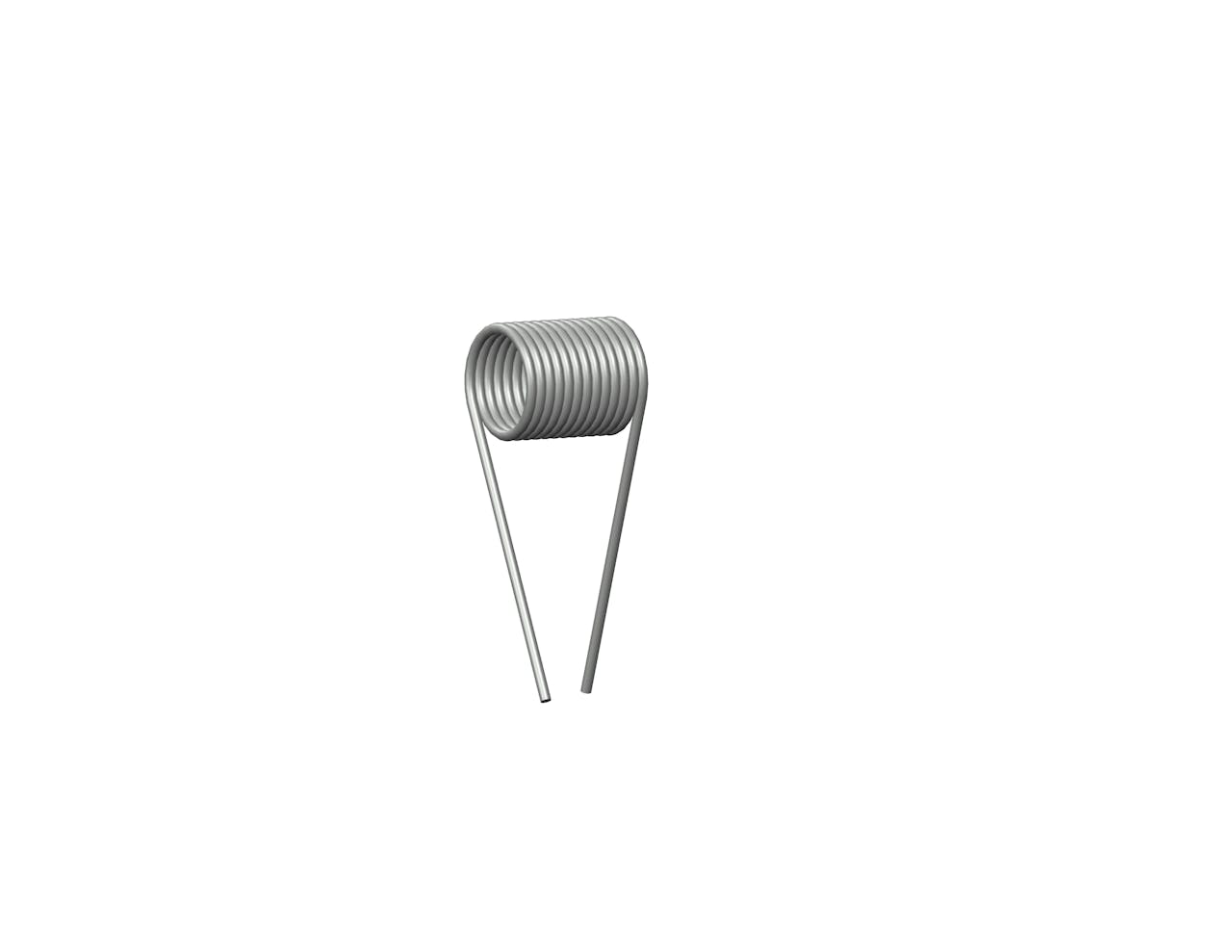

Torsion spring in Music Wire with 12.625 total coils and 2.5 Inch legs. This spring features an O.D. of 0.927 Inch, an I.D. of 0.757 Inch, and a spring rate of 0.0392 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 315 deg
Body Length 1.27 in
Brand Century Spring
Display Name TO-5205R
Finish None
Inside Diameter 0.757 in
Leg Length 2.5 in
Mandrel Diameter 0.6 in
Material Music Wire
Max Deflection (deg) (suggested) 301
Max Torque (suggested) 12 lbs-in
Measurement Units Standard
Outside Diameter 0.927 in
Rate 0.0392 lbf-in/deg
SKU TO-5205RCS
Total Coils 12.625
Wind Direction Right
Wire Diameter 0.085 in
Specs (in metric)
Label Value
Angle Between Legs 315 deg
Body Length 32.26 mm
Brand Century Spring
Display Name TO-5205R
Finish None
Inside Diameter 19.23 mm
Leg Length 63.5 mm
Mandrel Diameter 15.24 mm
Material Music Wire
Max Deflection (deg) (suggested) 301
Max Torque (suggested) 2.1 N-mm
Measurement Units Standard
Outside Diameter 23.55 mm
Rate 4.43 N-mm/deg
SKU TO-5205RCS
Total Coils 12.63
Wind Direction Right
Wire Diameter 2.16 mm
