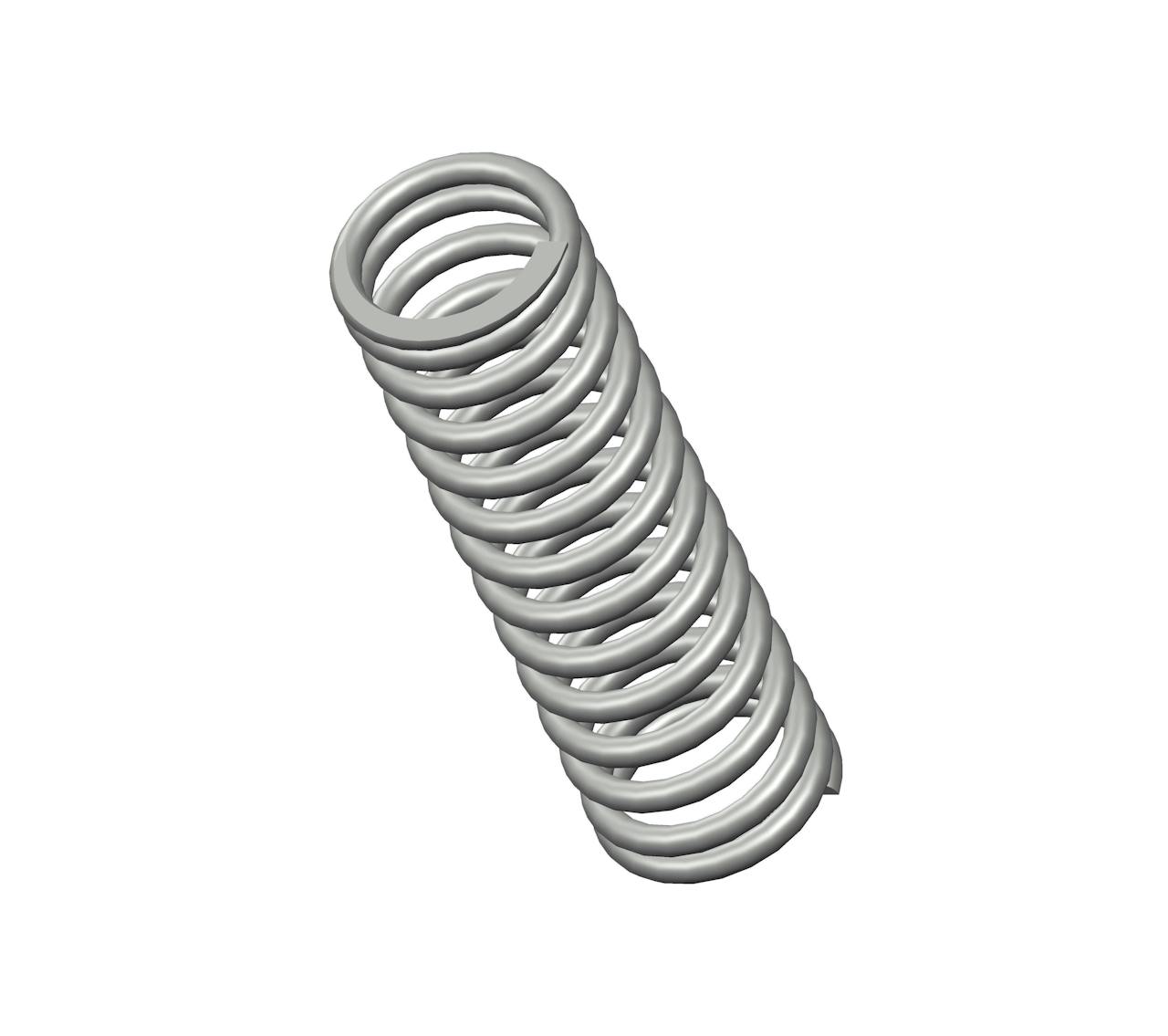

73200CS - 10" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 14 coils and closed & ground ends. This spring features an O.D. of 2.906", and an I.D. of 2.182".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73200
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 2.182 in
Material Oil Tempered
Outside Diameter 2.906 in
Part Type Standard
Rate 125 lbs/in
SKU 73200CS
Solid Length 5.07 in
Suggested Max Deflection 3.7 in
Suggested Max Load 459 lbf
Total Coils 14
Wire Diameter 0.362 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73200
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 55.42 mm
Material Oil Tempered
Outside Diameter 73.81 mm
Part Type Standard
Rate 21.89 N/mm
SKU 73200CS
Solid Length 128.78 mm
Suggested Max Deflection 93.98 mm
Suggested Max Load 2041.63 N
Total Coils 14
Wire Diameter 9.19 mm
The compression spring 73200CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73200 compression spring design exhibits exceptional tensile strength and resilience.

The 73200 design is manufactured with a free length of 10", with an outer diameter of 2.906", an inner diameter of 2.182", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 125 lbs/in.

The 73200CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73200 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
