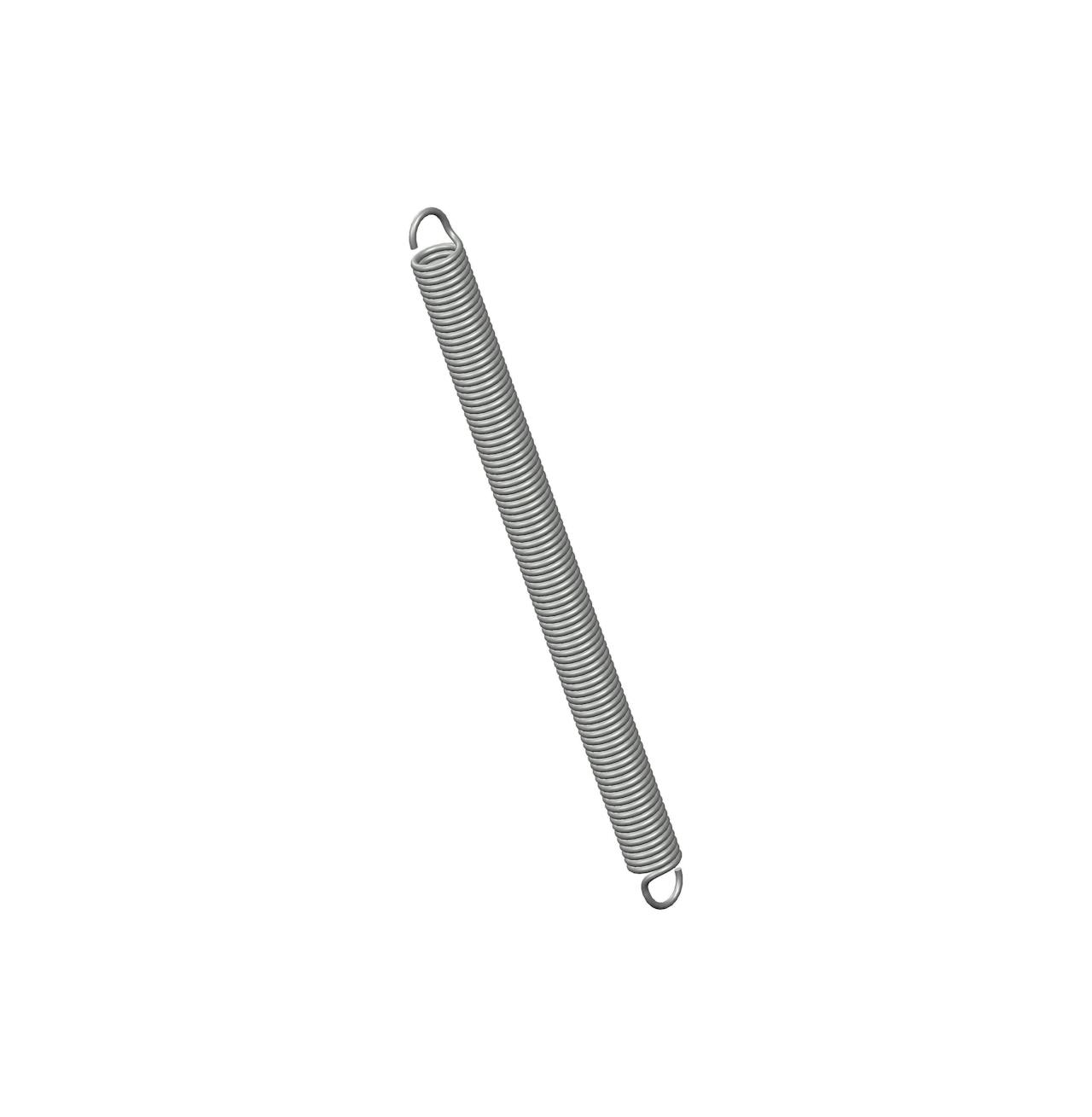

86CS - 4.25 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.296 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 86
Ends Machine Hook
Finish Zinc
Initial Tension 2 lb
Length 4.25 in
Material Spring Steel
Outside Diameter 0.296 in
Part Type Standard
Rate 2.6 lbs/in
SKU 86CS
Sugg Max Deflection 2.7 in
Sugg Max Load 8.6 lbf
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 86
Ends Machine Hook
Finish Zinc
Initial Tension 0.91 kg
Length 107.95 mm
Material Spring Steel
Outside Diameter 7.52 mm
Part Type Standard
Rate 0.46 N/mm
SKU 86CS
Sugg Max Deflection 68.58 mm
Sugg Max Load 38.25 N
Wire Diameter 1.04 mm
