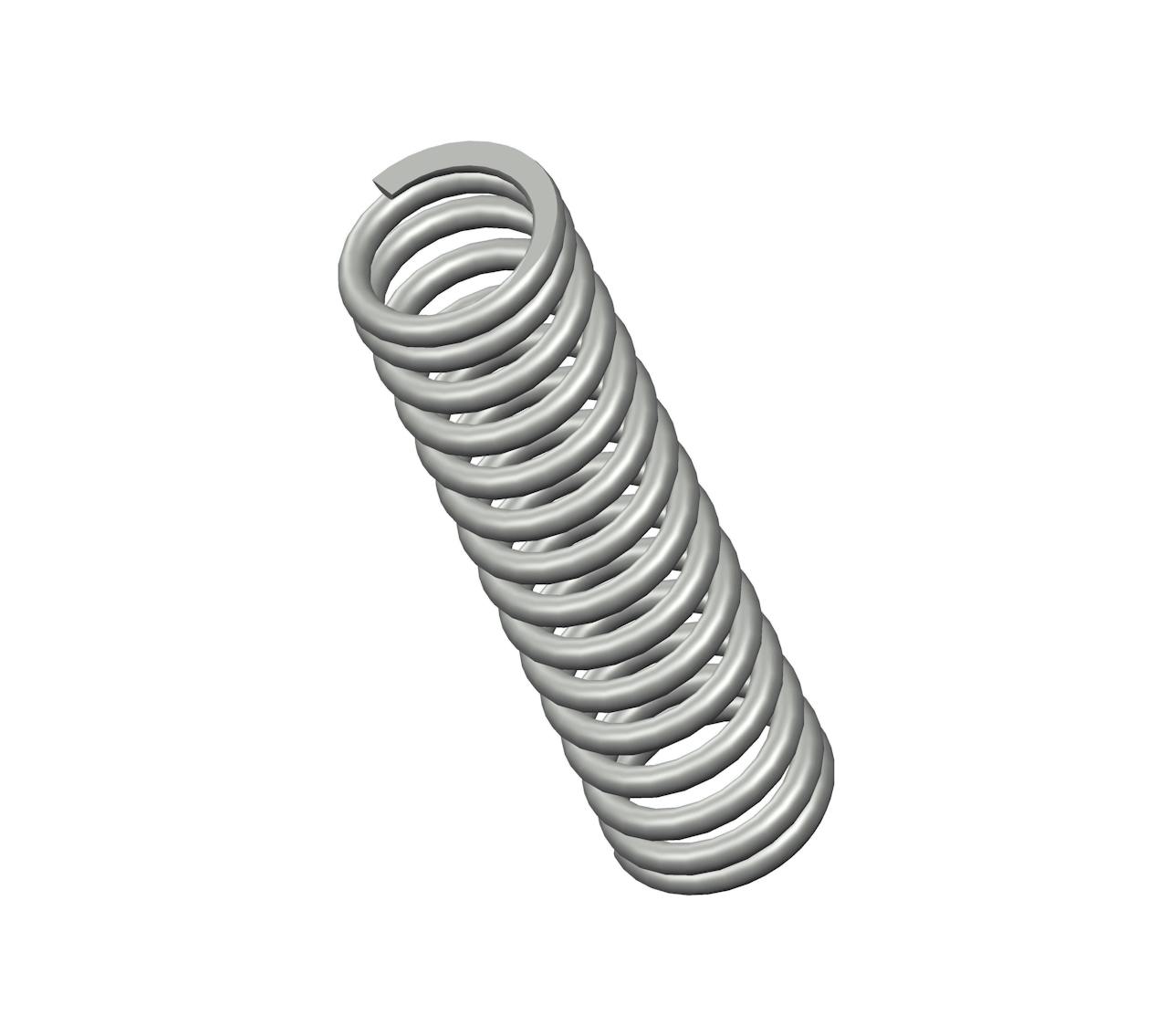

73141CS - 10" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 14.8 coils and closed & ground ends. This spring features an O.D. of 2.687", and an I.D. of 1.963".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73141
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 1.963 in
Material Oil Tempered
Outside Diameter 2.687 in
Part Type Standard
Rate 154 lbs/in
SKU 73141CS
Solid Length 5.34 in
Suggested Max Deflection 3.2 in
Suggested Max Load 494 lbf
Total Coils 14.8
Wire Diameter 0.362 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73141
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 49.86 mm
Material Oil Tempered
Outside Diameter 68.25 mm
Part Type Standard
Rate 26.97 N/mm
SKU 73141CS
Solid Length 135.64 mm
Suggested Max Deflection 81.28 mm
Suggested Max Load 2197.31 N
Total Coils 14.8
Wire Diameter 9.19 mm
The 73141 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73141CS compression spring is designed with a free length of 9" total of 13.4 coils, and a rate of 173 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73141 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
