TO-5101LSCS - 0 Degree, 0.0023 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

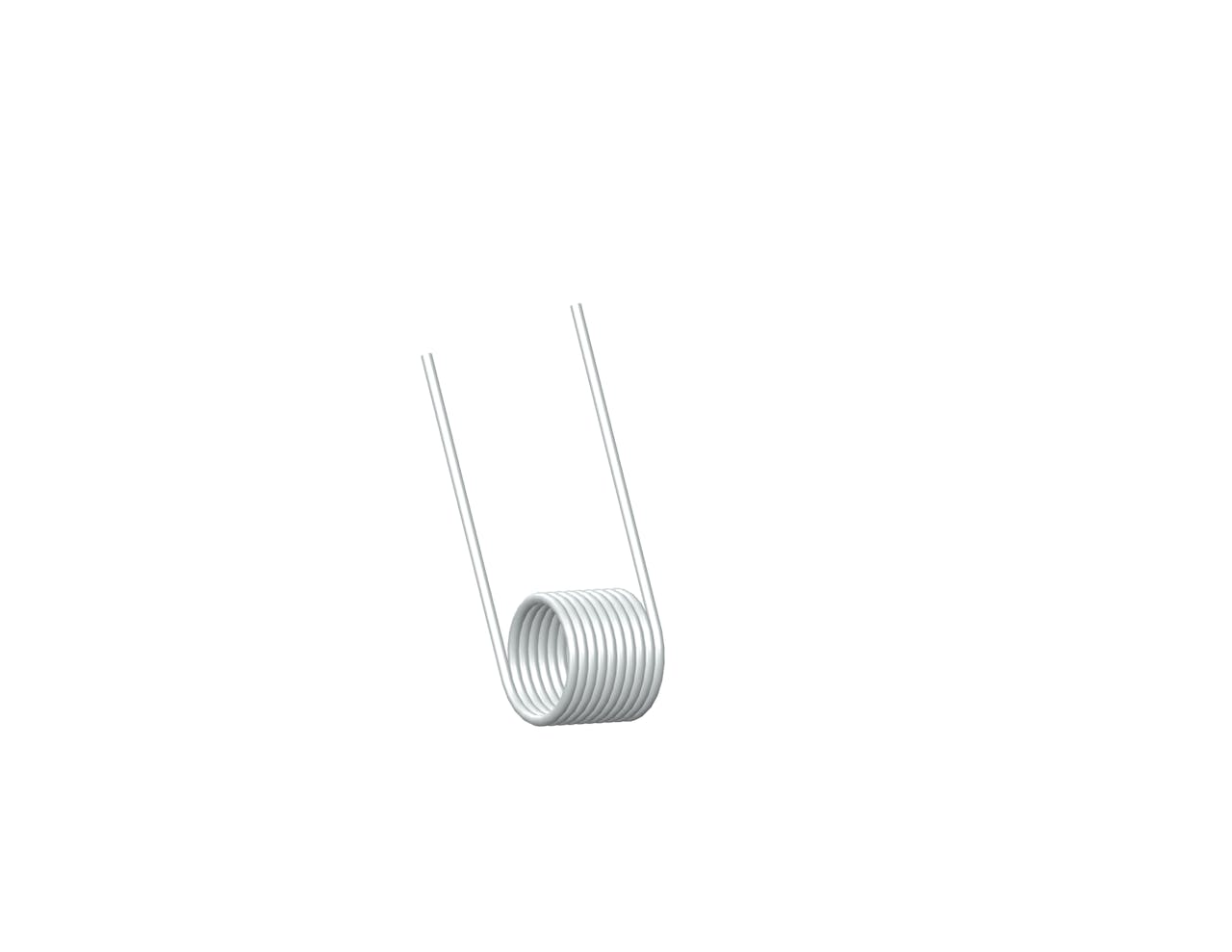

Torsion spring in 302/304 Stainless Steel with 9.5 total coils and 1 Inch legs. This spring features an O.D. of 0.382 Inch, an I.D. of 0.318 Inch, and a spring rate of 0.0023 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 0.37 in
Brand Century Spring
Display Name TO-5101LS
Finish None
Inside Diameter 0.318 in
Leg Length 1 in
Mandrel Diameter 0.25 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 282
Max Torque (suggested) 0.64 lbs/in
Measurement Units Standard
Outside Diameter 0.382 in
Rate 0.0023 lbf-in/deg
SKU TO-5101LSCS
Total Coils 9.5
Wind Direction Left
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 9.4 mm
Brand Century Spring
Display Name TO-5101LS
Finish None
Inside Diameter 8.08 mm
Leg Length 25.4 mm
Mandrel Diameter 6.35 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 282
Max Torque (suggested) 0.11 N-mm
Measurement Units Standard
Outside Diameter 9.7 mm
Rate 0.26 N-mm/deg
SKU TO-5101LSCS
Total Coils 9.5
Wind Direction Left
Wire Diameter 0.81 mm
