Century Spring

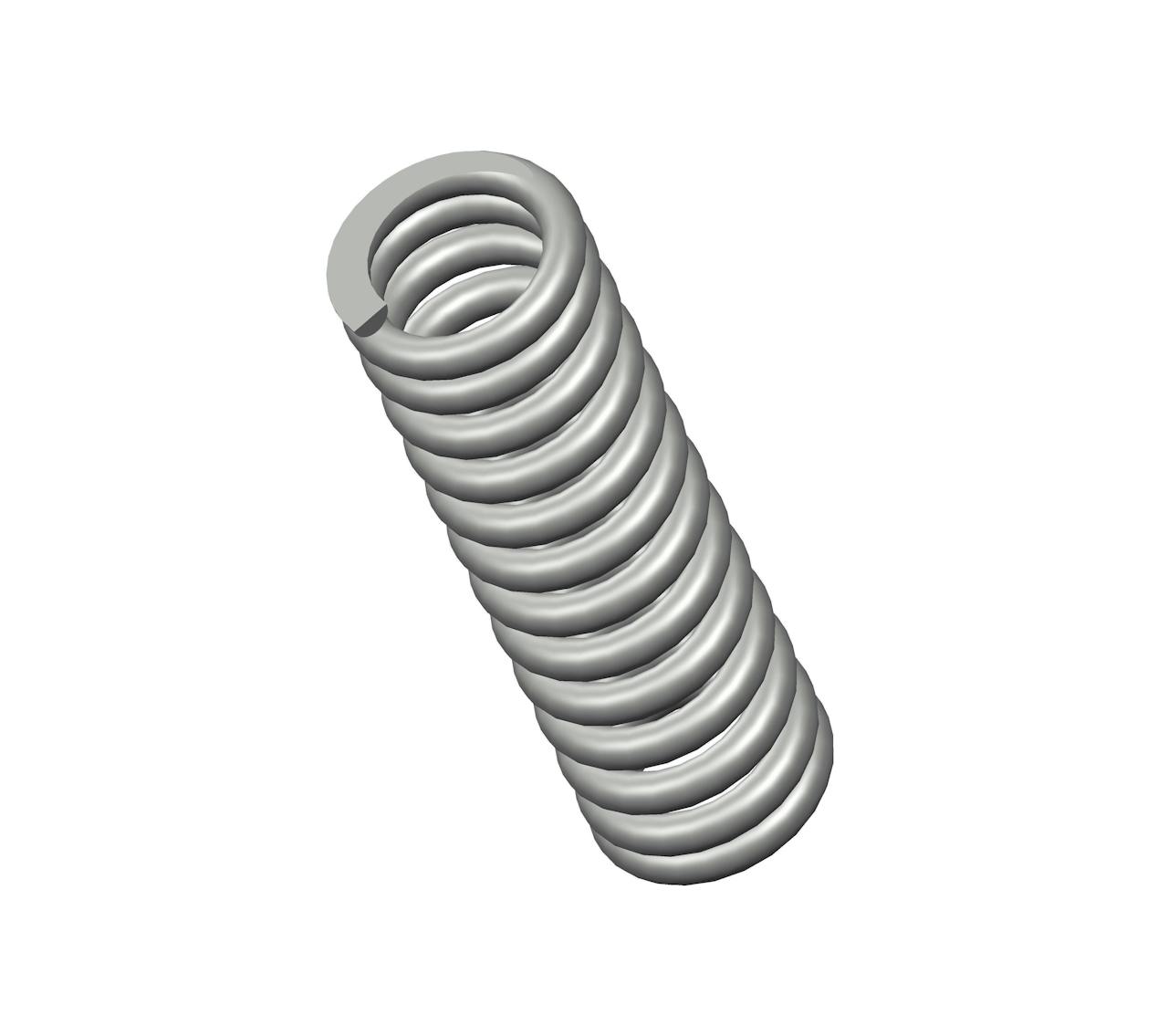

73113CS - 8" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 13.3 coils and closed & ground ends. This spring features an O.D. of 2.437", and an I.D. of 1.625".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73113
Ends Closed & Ground
Finish None
Free Length 8 in
Inside Diameter 1.625 in
Material Oil Tempered
Outside Diameter 2.437 in
Part Type Standard
Rate 414 lbs/in
SKU 73113CS
Solid Length 5.38 in
Suggested Max Deflection 1.8 in
Suggested Max Load 733 lbf
Total Coils 13.3
Wire Diameter 0.406 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73113
Ends Closed & Ground
Finish None
Free Length 203.2 mm
Inside Diameter 41.28 mm
Material Oil Tempered
Outside Diameter 61.9 mm
Part Type Standard
Rate 72.49 N/mm
SKU 73113CS
Solid Length 136.65 mm
Suggested Max Deflection 45.72 mm
Suggested Max Load 3260.38 N
Total Coils 13.3
Wire Diameter 10.31 mm
The compression spring 73113CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73113 compression spring design exhibits exceptional tensile strength and resilience.

The 73113 design is manufactured with a free length of 8", with an outer diameter of 2.437", an inner diameter of 1.625", and a total of 13.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 414 lbs/in.

The 73113CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73113 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
