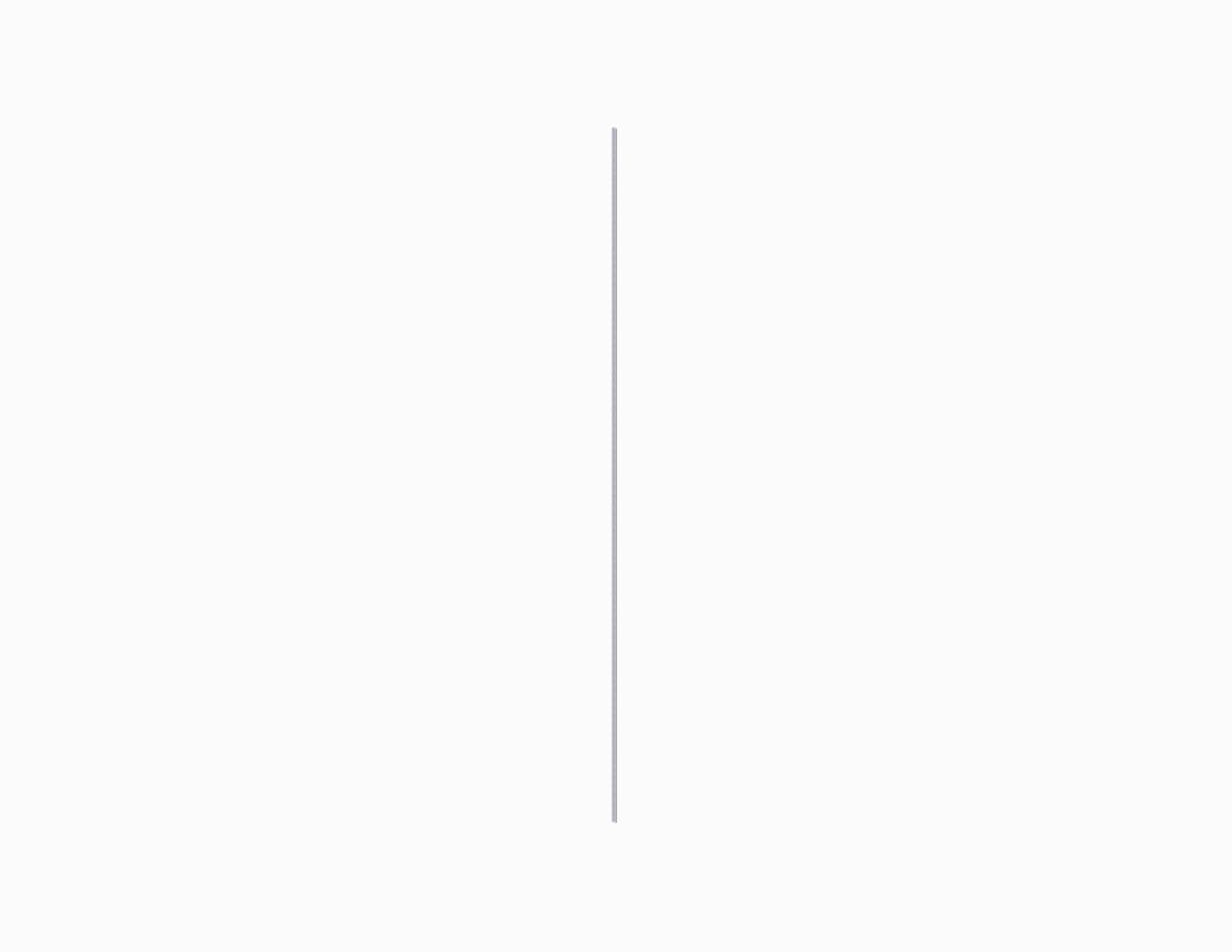

ST2-20CS - 0.125 Inch O.D. Long Compression Spring

Inventory:
Estimated Lead Time

Long-length compression spring in 302/304 Stainless Steel. This spring features an O.D. of 0.125 Inch, and an I.D. of 0.085 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ST2-20
Finish None
Inside Diameter 0.085 in
Length 20 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.125 in
Pitch 0.033 in
Product Image ST2_20CS
Rate 5.7996 lbs/in
Rate Constant 0.4833 lbf
SKU ST2-20CS
Solid Length Constant 0.61 in
Solid Length Per 0.61 lb
Suggested Max Load 2.8 lbf
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ST2-20
Finish None
Inside Diameter 2.16 mm
Length 508 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 3.18 mm
Pitch 0.84 mm
Product Image ST2_20CS
Rate 1.02 N-mm
Rate Constant 84.64 N
SKU ST2-20CS
Solid Length Constant 15.49 mm
Solid Length Per 0.28 kg
Suggested Max Load 12.45 N
Wire Diameter 0.51 mm
