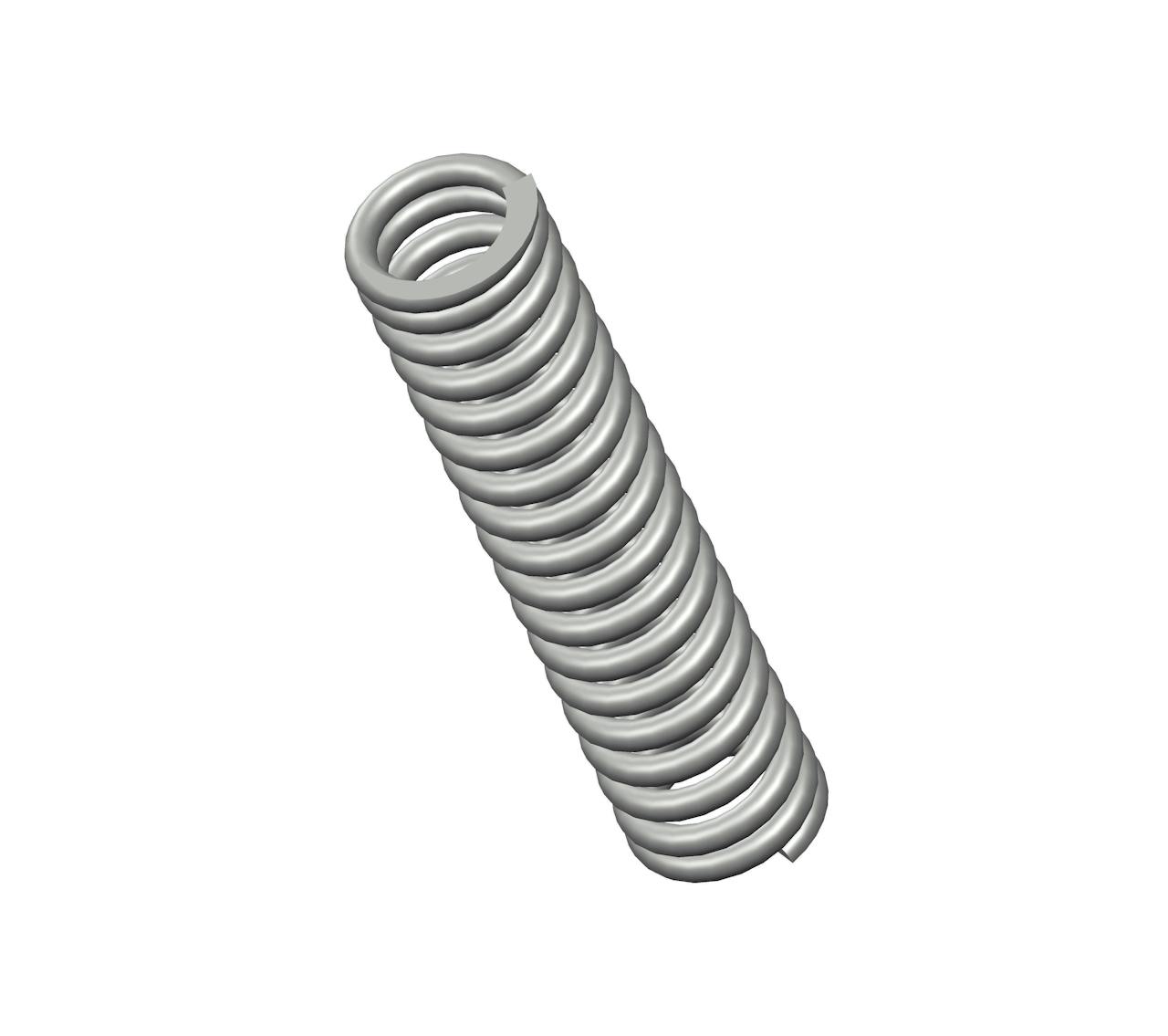

73058CS - 10" Oil Tempered Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from oil tempered with 18.2 coils and closed & ground ends. This spring features an O.D. of 2.187", and an I.D. of 1.501".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73058 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 10 in |
| Inside Diameter | 1.501 in |
| Material | Oil Tempered |
| Outside Diameter | 2.187 in |
| Part Type | Standard |
| Rate | 195 lbs/in |
| SKU | 73058CS |
| Solid Length | 6.26 in |
| Suggested Max Deflection | 2.6 in |
| Suggested Max Load | 508 lbf |
| Total Coils | 18.2 |
| Wire Diameter | 0.343 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73058 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 254 mm |
| Inside Diameter | 38.13 mm |
| Material | Oil Tempered |
| Outside Diameter | 55.55 mm |
| Part Type | Standard |
| Rate | 34.14 N/mm |
| SKU | 73058CS |
| Solid Length | 159 mm |
| Suggested Max Deflection | 66.04 mm |
| Suggested Max Load | 2259.58 N |
| Total Coils | 18.2 |
| Wire Diameter | 8.71 mm |
The 73058CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.343" diameter oil tempered, the 73058 spring design exhibits reliable strength across its 18.2 active coils, withstanding repeated compression cycles with a maximum load of 508 lbf without succumbing to fatigue.
We manufacture the 73058 design to provide a compression spring that is 10" long at rest and provides a consistent rate of 195 lbs/in along its recommended maximum of 2.6" deflection. For best results, your application should fully accommodate the inner (1.501") and outer (2.187") diameters of this spring and be designed for its closed & ground end configuration.
