Century Spring

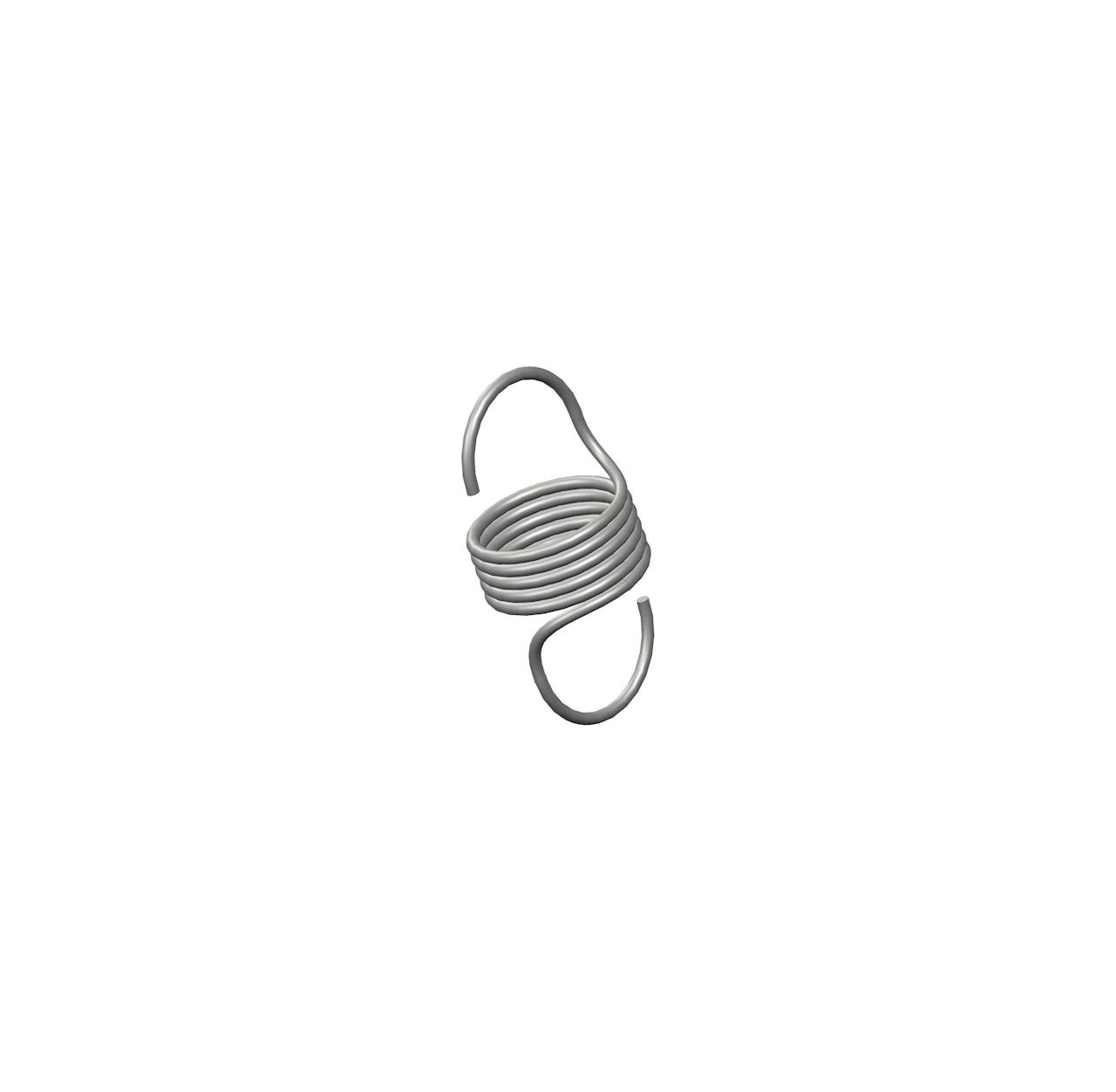

5452CS - 0.81 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.343 Inch and an initial tension of 0.2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5452
Ends Machine Hook
Finish None
Initial Tension 0.2 lb
Length 0.81 in
Material Music Wire
Outside Diameter 0.343 in
Part Type Standard
Rate 1.6 lbs/in
SKU 5452CS
Sugg Max Deflection 1.7 in
Sugg Max Load 2.8 lbf
Wind Direction Left
Wire Diameter 0.027 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5452
Ends Machine Hook
Finish None
Initial Tension 0.09 kg
Length 20.57 mm
Material Music Wire
Outside Diameter 8.71 mm
Part Type Standard
Rate 0.28 N/mm
SKU 5452CS
Sugg Max Deflection 43.18 mm
Sugg Max Load 12.45 N
Wind Direction Left
Wire Diameter 0.69 mm
