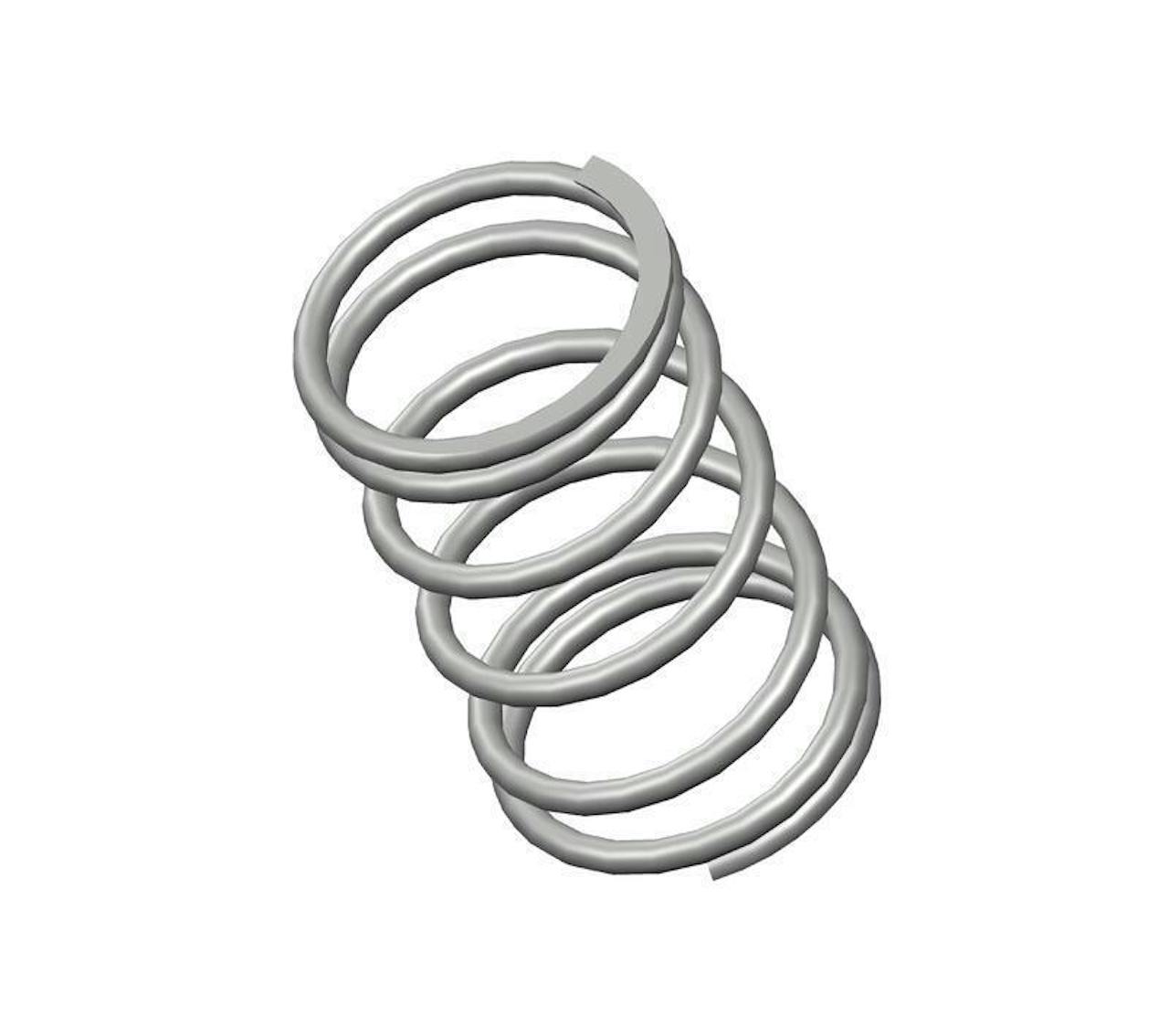

72796CS - 2.5" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 6.38 coils and closed & ground ends. This spring features an O.D. of 1.46", and an I.D. of 1.21".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72796
Ends Closed & Ground
Finish None
Free Length 2.5 in
Inside Diameter 1.21 in
Material Music Wire
Outside Diameter 1.46 in
Part Type Standard
Rate 34 lbs/in
SKU 72796CS
Solid Length 0.8 in
Suggested Max Deflection 1.7 in
Suggested Max Load 57 lbf
Total Coils 6.38
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72796
Ends Closed & Ground
Finish None
Free Length 63.5 mm
Inside Diameter 30.73 mm
Material Music Wire
Outside Diameter 37.08 mm
Part Type Standard
Rate 5.95 N/mm
SKU 72796CS
Solid Length 20.32 mm
Suggested Max Deflection 43.18 mm
Suggested Max Load 253.54 N
Total Coils 6.38
Wire Diameter 3.18 mm
The 72796CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.125" diameter music wire, the 72796 spring design exhibits reliable strength across its 6.38 active coils, withstanding repeated compression cycles with a maximum load of 57 lbf without succumbing to fatigue.

We manufacture the 72796 design to provide a compression spring that is 2.5" long at rest and provides a consistent rate of 34 lbs/in along its recommended maximum of 1.7" deflection. For best results, your application should fully accommodate the inner (1.21") and outer (1.46") diameters of this spring and be designed for its closed & ground end configuration.
