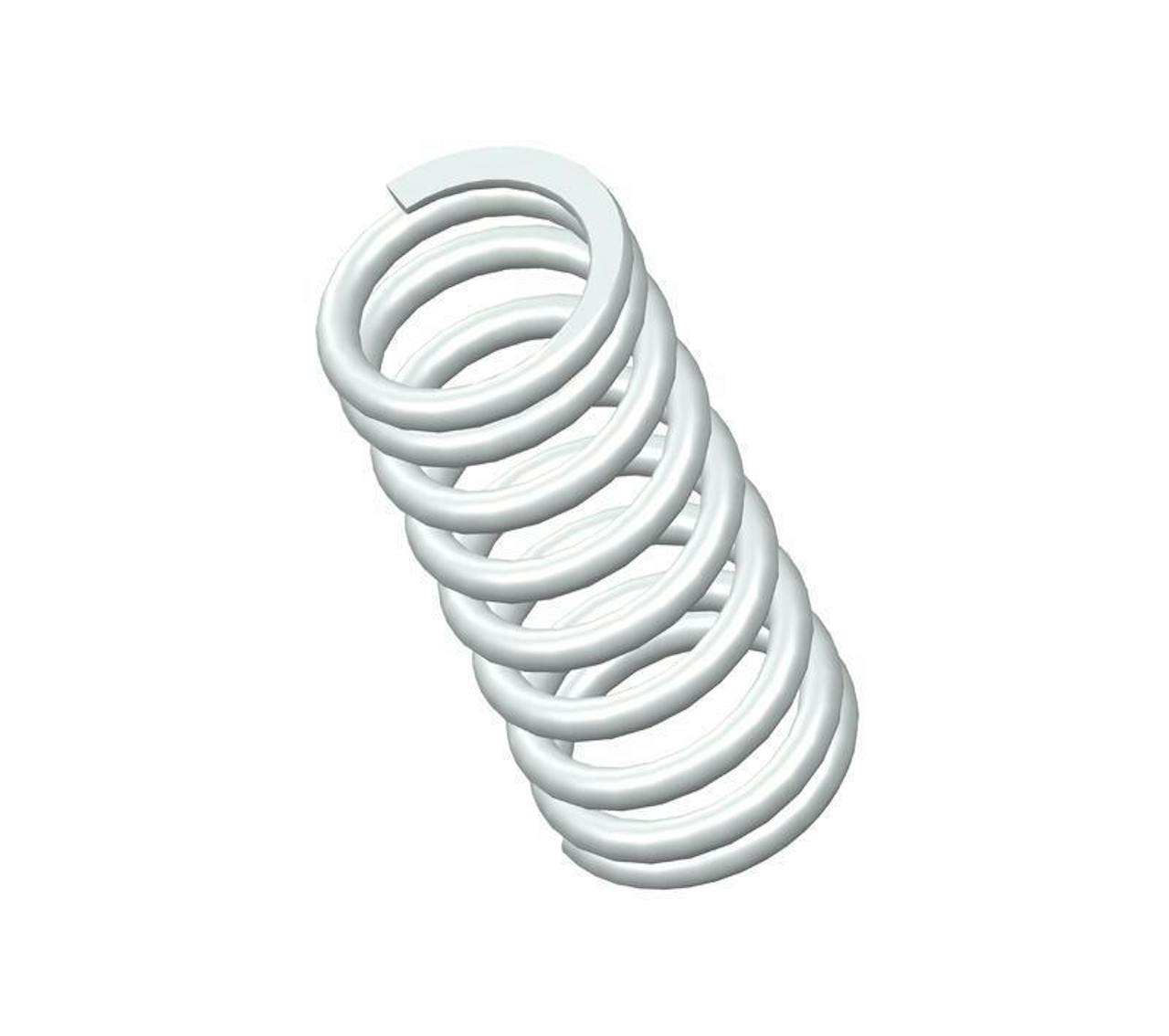

72609SCS - 2.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 8.75 coils and closed & ground ends. This spring features an O.D. of 1.1", and an I.D. of 0.816".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72609S
Ends Closed & Ground
Finish None
Free Length 2.5 in
Inside Diameter 0.816 in
Material 302/304 Stainless Steel
Outside Diameter 1.1 in
Part Type Standard
Rate 83 lbs/in
SKU 72609SCS
Solid Length 1.24 in
Suggested Max Deflection 0.85 in
Suggested Max Load 71 lbf
Total Coils 8.75
Wire Diameter 0.142 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72609S
Ends Closed & Ground
Finish None
Free Length 63.5 mm
Inside Diameter 20.73 mm
Material 302/304 Stainless Steel
Outside Diameter 27.94 mm
Part Type Standard
Rate 14.53 N/mm
SKU 72609SCS
Solid Length 31.5 mm
Suggested Max Deflection 21.59 mm
Suggested Max Load 315.81 N
Total Coils 8.75
Wire Diameter 3.61 mm
The compression spring 72609SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72609S compression spring design exhibits exceptional tensile strength and resilience.

The 72609S design is manufactured with a free length of 2.5", with an outer diameter of 1.1", an inner diameter of 0.816", and a total of 8.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 83 lbs/in.

The 72609SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72609S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
