Century Spring

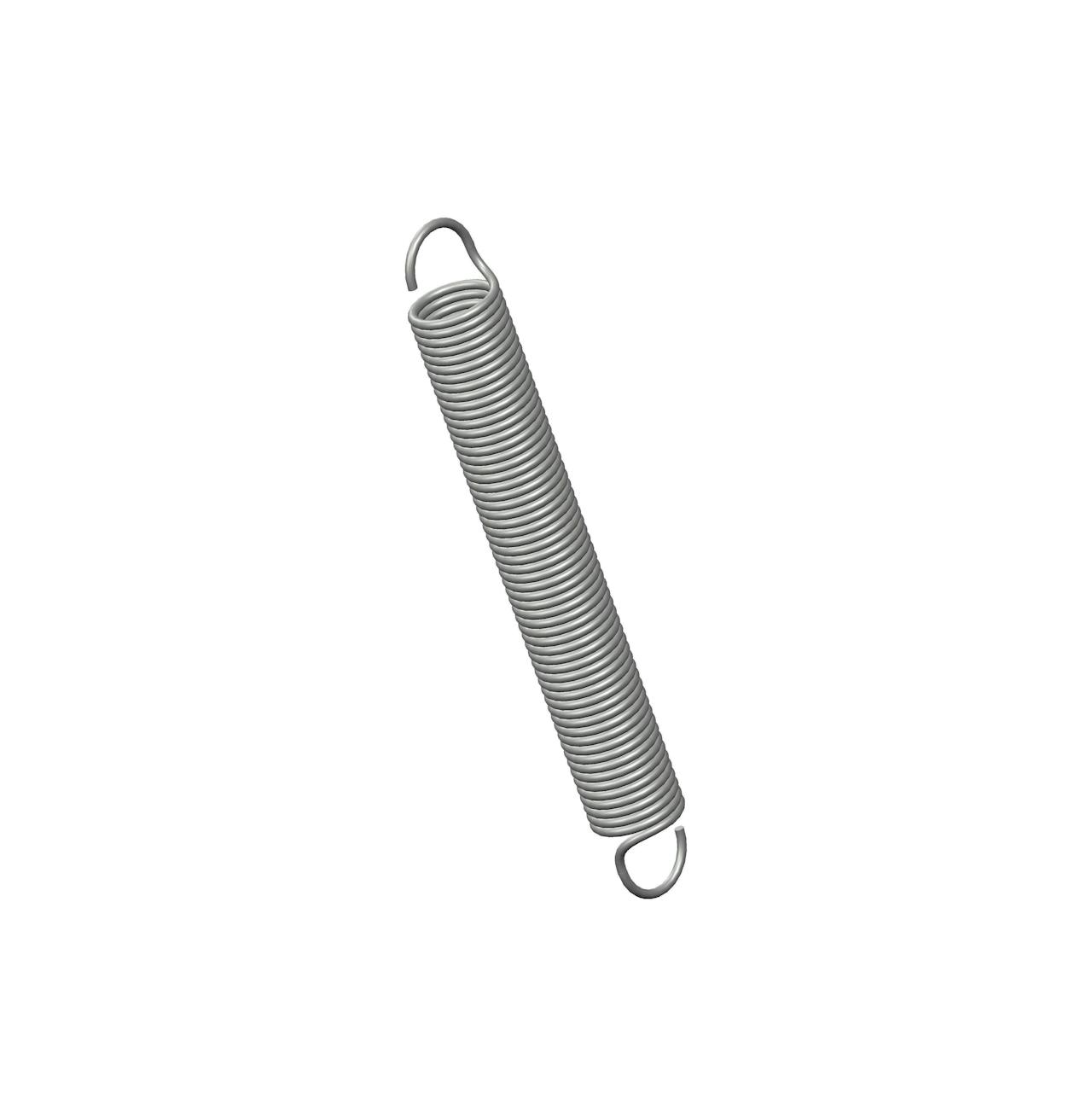

5063CS - 2.63 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.328 Inch and an initial tension of 0.7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5063
Ends Machine Hook
Finish Zinc
Initial Tension 0.7 lb
Length 2.63 in
Material Spring Steel
Outside Diameter 0.328 in
Part Type Standard
Rate 1.4 lbs/in
SKU 5063CS
Sugg Max Deflection 2.9 in
Sugg Max Load 4.6 lbf
Wind Direction Left
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5063
Ends Machine Hook
Finish Zinc
Initial Tension 0.32 kg
Length 66.8 mm
Material Spring Steel
Outside Diameter 8.33 mm
Part Type Standard
Rate 0.25 N/mm
SKU 5063CS
Sugg Max Deflection 73.66 mm
Sugg Max Load 20.46 N
Wind Direction Left
Wire Diameter 0.89 mm
