Century Spring

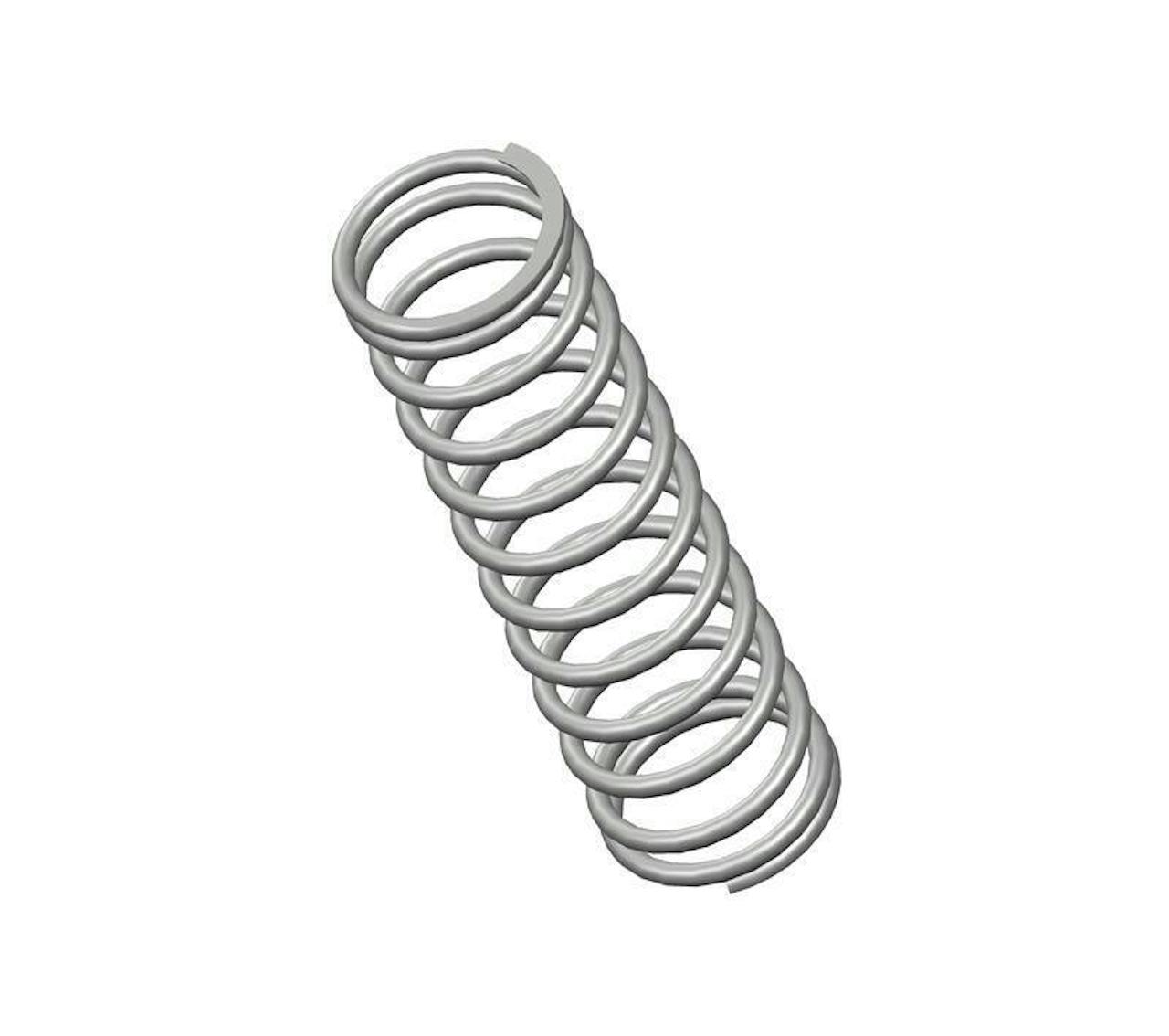

72558CS - 4" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 12.4 coils and closed & ground ends. This spring features an O.D. of 1.1", and an I.D. of 0.89".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72558
Ends Closed & Ground
Finish None
Free Length 4 in
Inside Diameter 0.89 in
Material Music Wire
Outside Diameter 1.1 in
Part Type Standard
Rate 17 lbs/in
SKU 72558CS
Solid Length 1.3 in
Suggested Max Deflection 2.7 in
Suggested Max Load 46 lbf
Total Coils 12.4
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72558
Ends Closed & Ground
Finish None
Free Length 101.6 mm
Inside Diameter 22.61 mm
Material Music Wire
Outside Diameter 27.94 mm
Part Type Standard
Rate 2.98 N/mm
SKU 72558CS
Solid Length 33.02 mm
Suggested Max Deflection 68.58 mm
Suggested Max Load 204.61 N
Total Coils 12.4
Wire Diameter 2.67 mm
The 72558 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 72558CS compression spring is designed with a free length of 3.5" total of 11 coils, and a rate of 17 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 72558 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
