354-ACS - 1" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

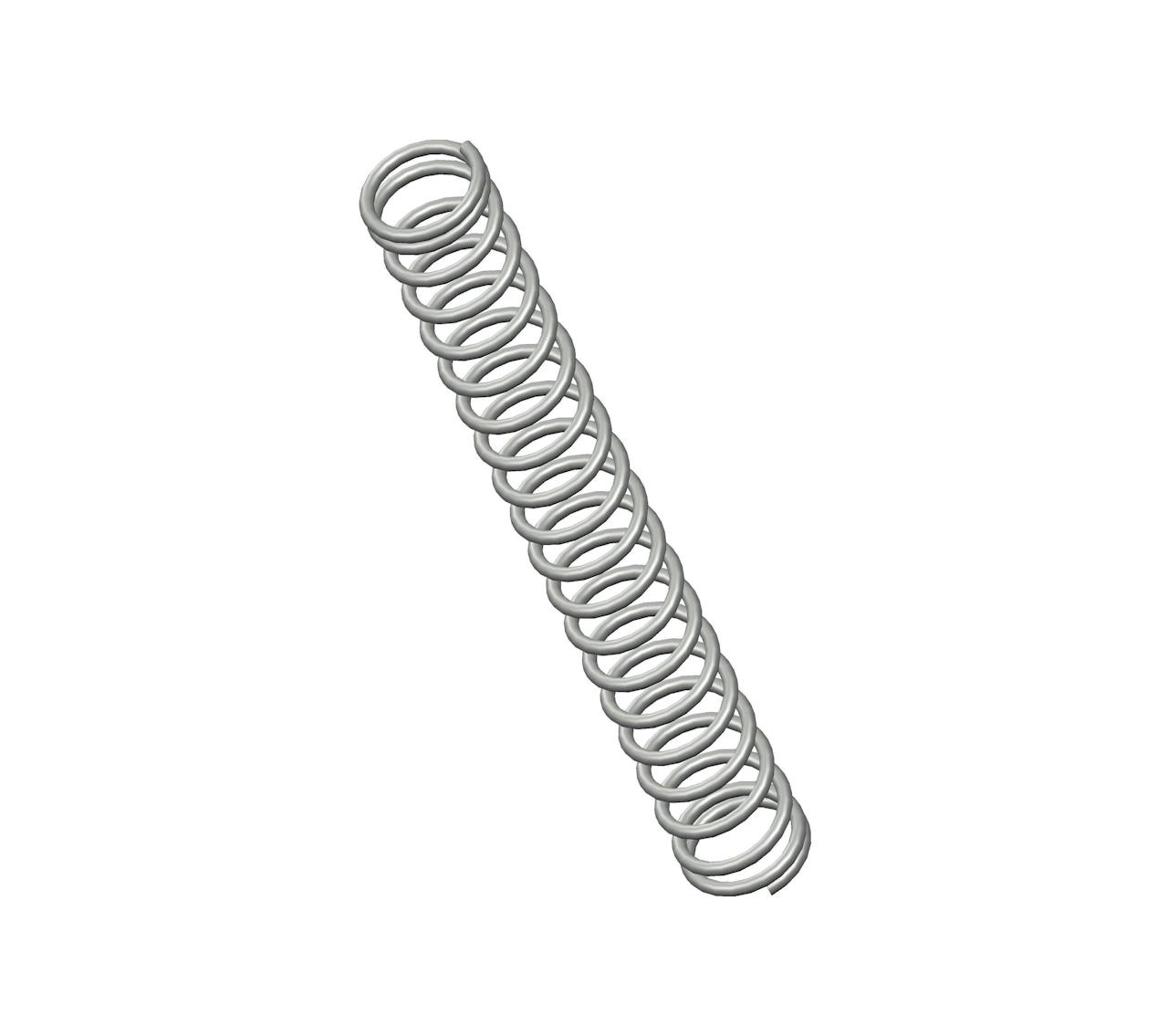

Compression spring manufactured from music wire with 20.3 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.097".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 354-A |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1 in |
| Inside Diameter | 0.097 in |
| Material | Music Wire |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 2.2 lbs/in |
| SKU | 354-ACS |
| Solid Length | 0.3 in |
| Suggested Max Deflection | 0.64 in |
| Suggested Max Load | 1.4 lbf |
| Total Coils | 20.3 |
| Wire Diameter | 0.014 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 354-A |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 25.4 mm |
| Inside Diameter | 2.46 mm |
| Material | Music Wire |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 0.39 N/mm |
| SKU | 354-ACS |
| Solid Length | 7.62 mm |
| Suggested Max Deflection | 16.26 mm |
| Suggested Max Load | 6.23 N |
| Total Coils | 20.3 |
| Wire Diameter | 0.36 mm |
The compression spring 354-ACS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 354-A compression spring design exhibits exceptional tensile strength and resilience.
The 354-A design is manufactured with a free length of 1", with an outer diameter of 0.125", an inner diameter of 0.097", and a total of 20.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.2 lbs/in.
The 354-ACS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 354-A design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 354-A design is manufactured with a free length of 1", with an outer diameter of 0.125", an inner diameter of 0.097", and a total of 20.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.2 lbs/in.
The 354-ACS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 354-A design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
