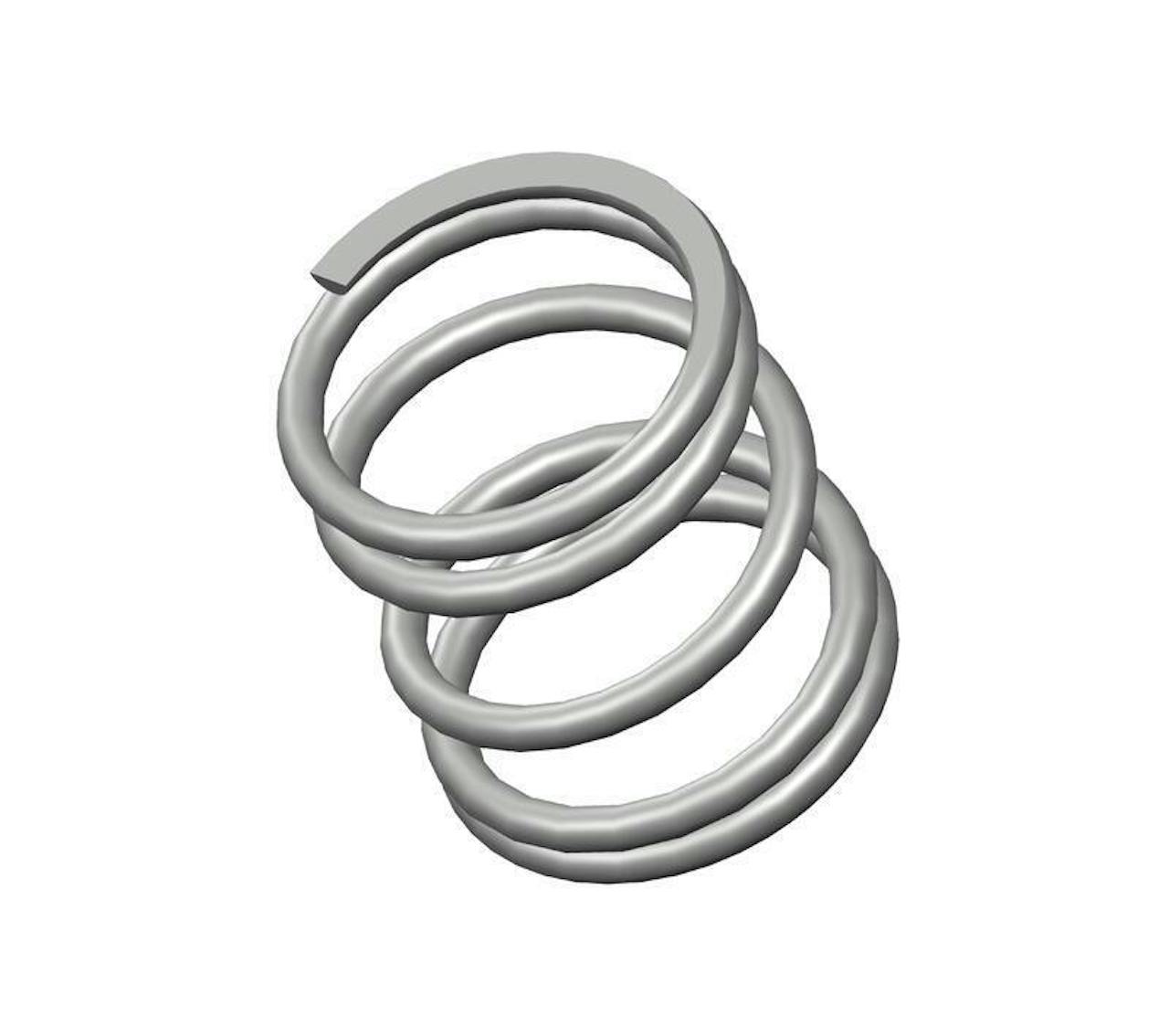

72551CS - 1.25" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 4.88 coils and closed & ground ends. This spring features an O.D. of 1.1", and an I.D. of 0.89".

Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72551
Ends Closed & Ground
Finish None
Free Length 1.25 in
Inside Diameter 0.89 in
Material Music Wire
Outside Diameter 1.1 in
Part Type Standard
Rate 62 lbs/in
SKU 72551CS
Solid Length 0.51 in
Suggested Max Deflection 0.74 in
Suggested Max Load 46 lbf
Total Coils 4.88
Wire Diameter 0.105 in
The 72551CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.105" diameter music wire, the 72551 spring design exhibits reliable strength across its 4.88 active coils, withstanding repeated compression cycles with a maximum load of 46 lbf without succumbing to fatigue.

We manufacture the 72551 design to provide a compression spring that is 1.25" long at rest and provides a consistent rate of 62 lbs/in along its recommended maximum of 0.74" deflection. For best results, your application should fully accommodate the inner (0.89") and outer (1.1") diameters of this spring and be designed for its closed & ground end configuration.
