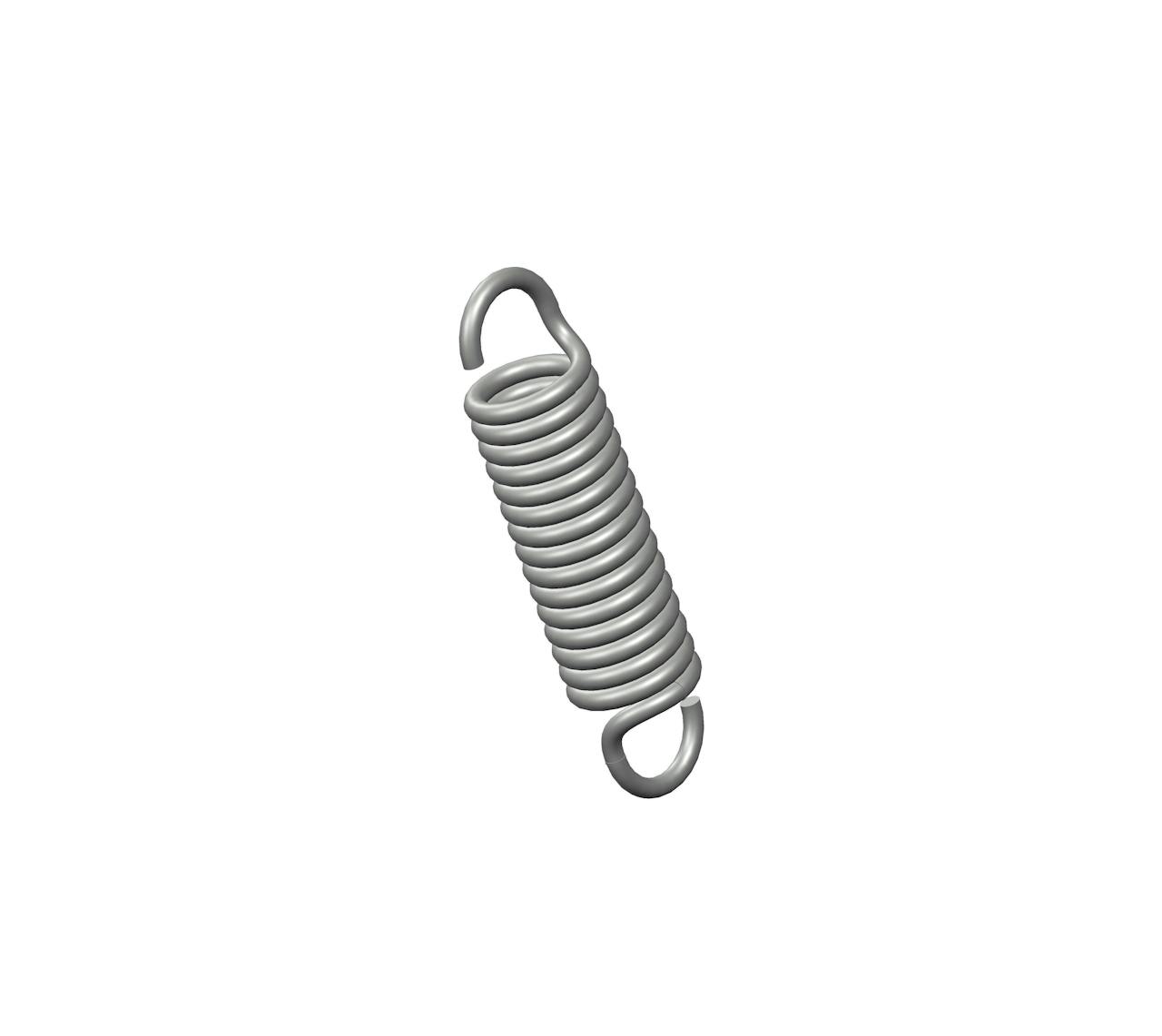

5558CS - 2.63 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.593 Inch and an initial tension of 14 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5558
Ends Machine Hook
Finish Zinc
Initial Tension 14 lb
Length 2.63 in
Material Spring Steel
Outside Diameter 0.593 in
Part Type Standard
Rate 55 lbs/in
SKU 5558CS
Sugg Max Deflection 0.67 in
Sugg Max Load 51 lbf
Wire Diameter 0.097 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5558
Ends Machine Hook
Finish Zinc
Initial Tension 6.35 kg
Length 66.8 mm
Material Spring Steel
Outside Diameter 15.06 mm
Part Type Standard
Rate 9.63 N/mm
SKU 5558CS
Sugg Max Deflection 17.02 mm
Sugg Max Load 226.85 N
Wire Diameter 2.46 mm
