72260SCS - 4" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

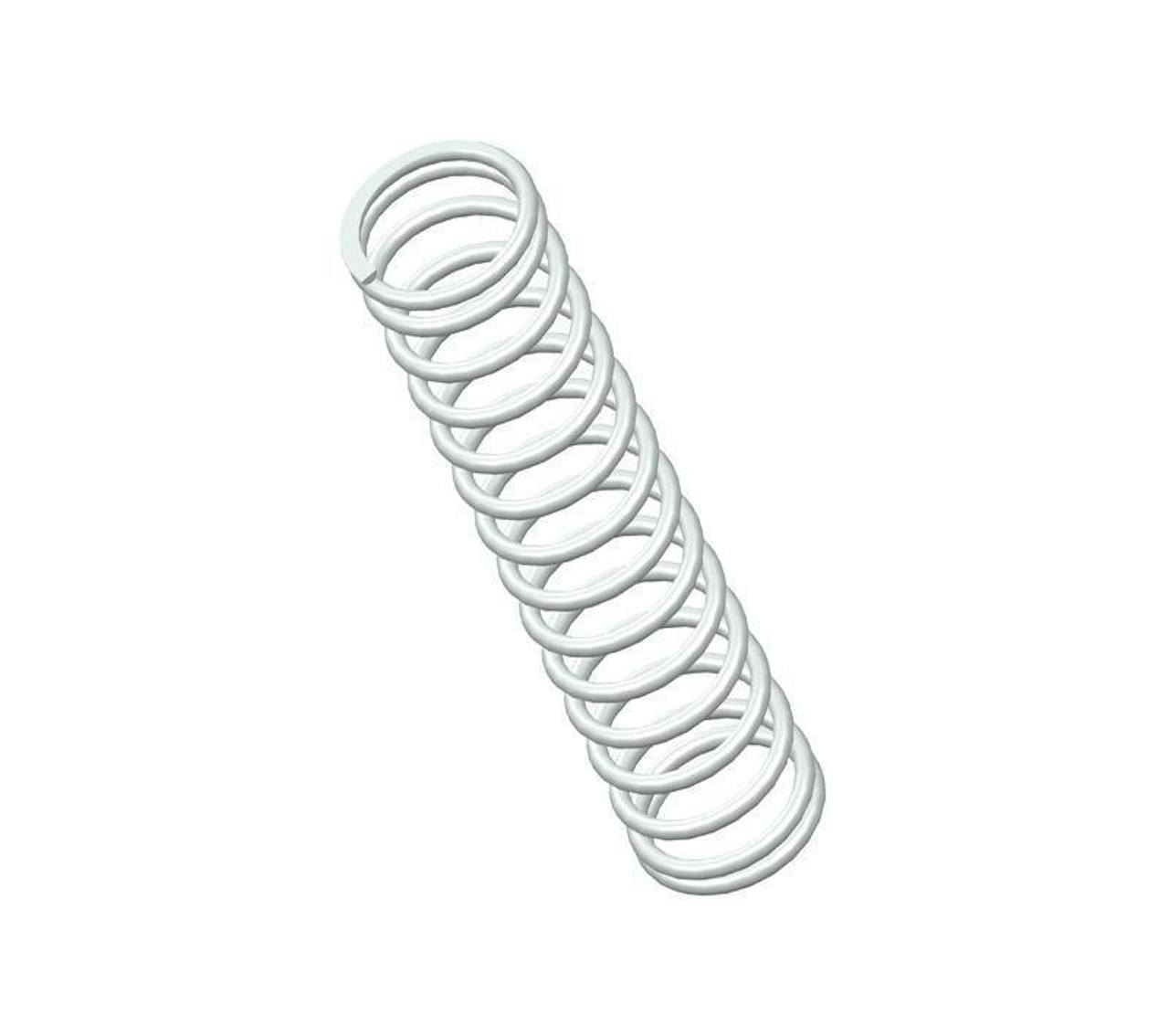

Compression spring manufactured from 302/304 stainless steel with 15.3 coils and closed & ground ends. This spring features an O.D. of 0.85", and an I.D. of 0.68".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72260S
Ends Closed & Ground
Finish None
Free Length 4 in
Inside Diameter 0.68 in
Material 302/304 Stainless Steel
Outside Diameter 0.85 in
Part Type Standard
Rate 11 lbs/in
SKU 72260SCS
Solid Length 1.3 in
Suggested Max Deflection 2.1 in
Suggested Max Load 23 lbf
Total Coils 15.3
Wire Diameter 0.085 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72260S
Ends Closed & Ground
Finish None
Free Length 101.6 mm
Inside Diameter 17.27 mm
Material 302/304 Stainless Steel
Outside Diameter 21.59 mm
Part Type Standard
Rate 1.93 N/mm
SKU 72260SCS
Solid Length 33.02 mm
Suggested Max Deflection 53.34 mm
Suggested Max Load 102.3 N
Total Coils 15.3
Wire Diameter 2.16 mm
The compression spring 72260SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72260S compression spring design exhibits exceptional tensile strength and resilience.

The 72260S design is manufactured with a free length of 4", with an outer diameter of 0.85", an inner diameter of 0.68", and a total of 15.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 11 lbs/in.

The 72260SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72260S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
