Century Spring

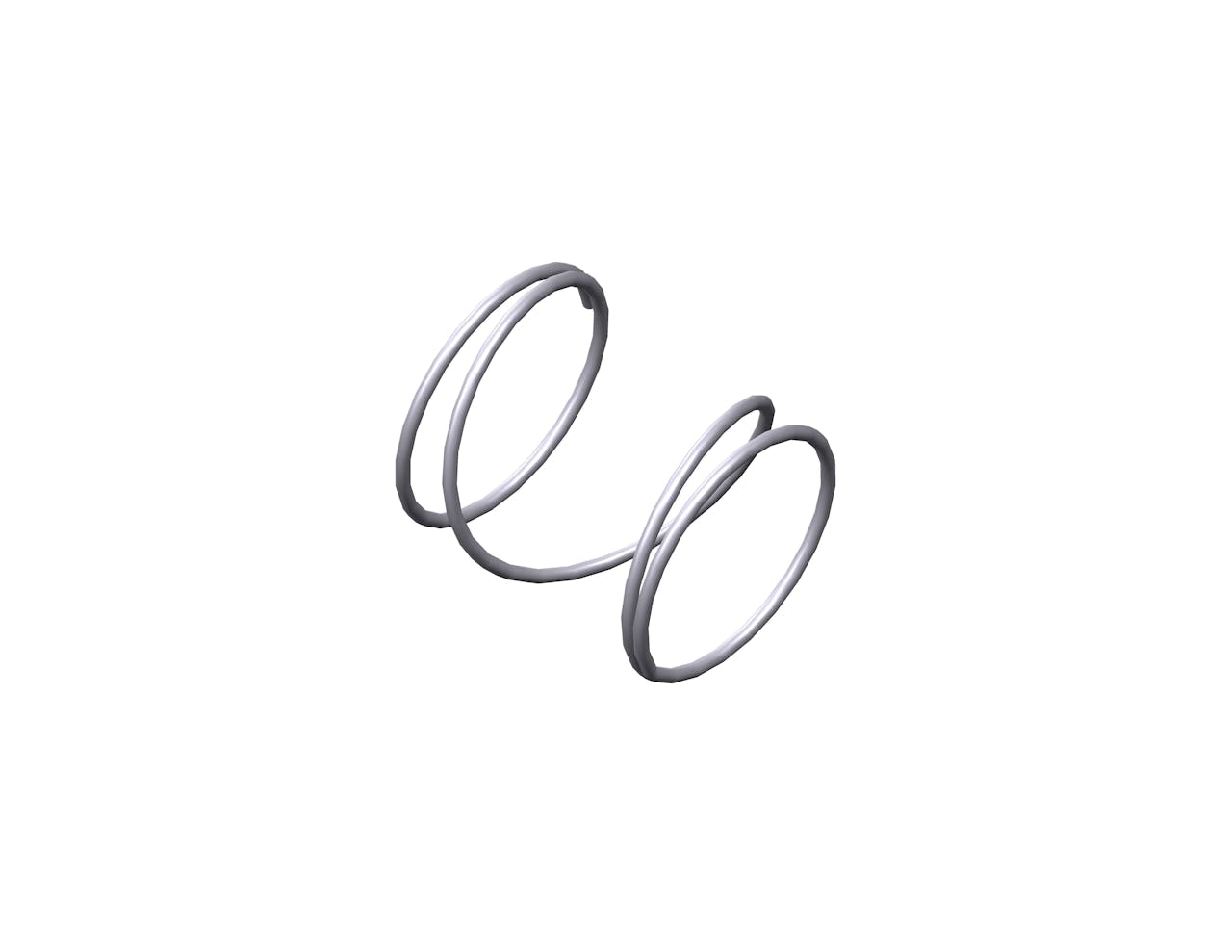

60367SCS - 0.25" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 3.5 coils and closed ends. This spring features an O.D. of 0.218", and an I.D. of 0.196".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60367S
Ends Closed
Finish Passivated
Free Length 0.25 in
Inside Diameter 0.196 in
Material 316 Stainless Steel
Outside Diameter 0.218 in
Part Type Standard
Rate 1.31 lbs/in
SKU 60367SCS
Solid Length 0.05 in
Suggested Max Deflection 0.154 in
Suggested Max Load 0.202 lbf
Total Coils 3.5
Wire Diameter 0.011 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 60367S
Ends Closed
Finish Passivated
Free Length 6.35 mm
Inside Diameter 4.98 mm
Material 316 Stainless Steel
Outside Diameter 5.54 mm
Part Type Standard
Rate 0.23 N/mm
SKU 60367SCS
Solid Length 1.27 mm
Suggested Max Deflection 3.91 mm
Suggested Max Load 0.9 N
Total Coils 3.5
Wire Diameter 0.28 mm
The compression spring 60367SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 60367S compression spring design exhibits exceptional tensile strength and resilience.

The 60367S design is manufactured with a free length of 0.25", with an outer diameter of 0.218", an inner diameter of 0.196", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.31 lbs/in.

The 60367SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 60367S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
