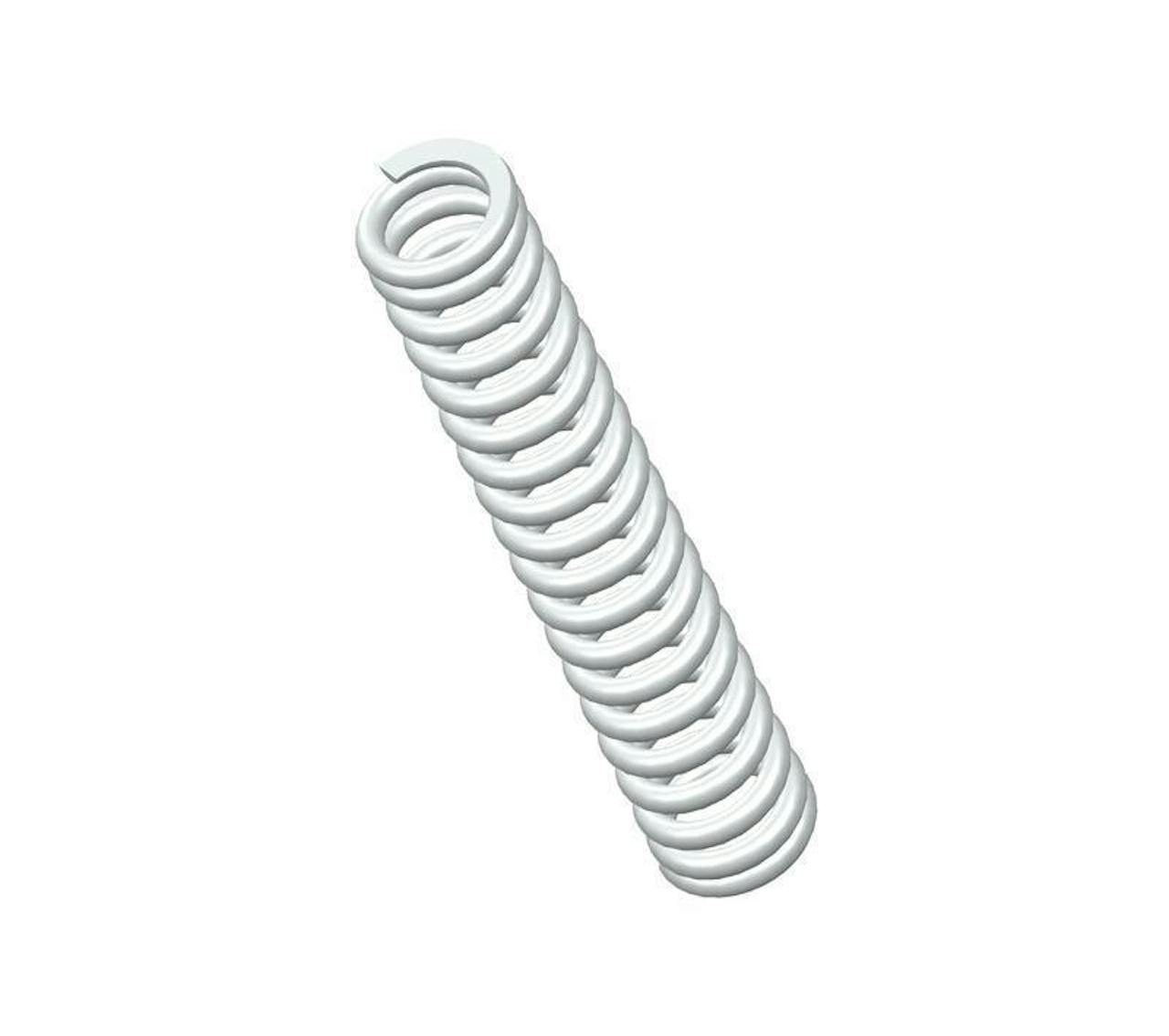

71629SCS - 2.75" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 19.9 coils and closed & ground ends. This spring features an O.D. of 0.48", and an I.D. of 0.318".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71629S
Ends Closed & Ground
Finish None
Free Length 2.75 in
Inside Diameter 0.318 in
Material 302/304 Stainless Steel
Outside Diameter 0.48 in
Part Type Standard
Rate 50 lbs/in
SKU 71629SCS
Solid Length 1.634 in
Suggested Max Deflection 0.694 in
Suggested Max Load 35 lbf
Total Coils 19.9
Wire Diameter 0.082 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71629S
Ends Closed & Ground
Finish None
Free Length 69.85 mm
Inside Diameter 8.08 mm
Material 302/304 Stainless Steel
Outside Diameter 12.19 mm
Part Type Standard
Rate 8.76 N/mm
SKU 71629SCS
Solid Length 41.5 mm
Suggested Max Deflection 17.63 mm
Suggested Max Load 155.68 N
Total Coils 19.9
Wire Diameter 2.08 mm
The compression spring 71629SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 71629S compression spring design exhibits exceptional tensile strength and resilience.

The 71629S design is manufactured with a free length of 2.75", with an outer diameter of 0.48", an inner diameter of 0.318", and a total of 19.9 coils, expertly designed to deliver consistent compression characteristics including a rate of 50 lbs/in.

The 71629SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 71629S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
