HH-9CS - 1.38" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

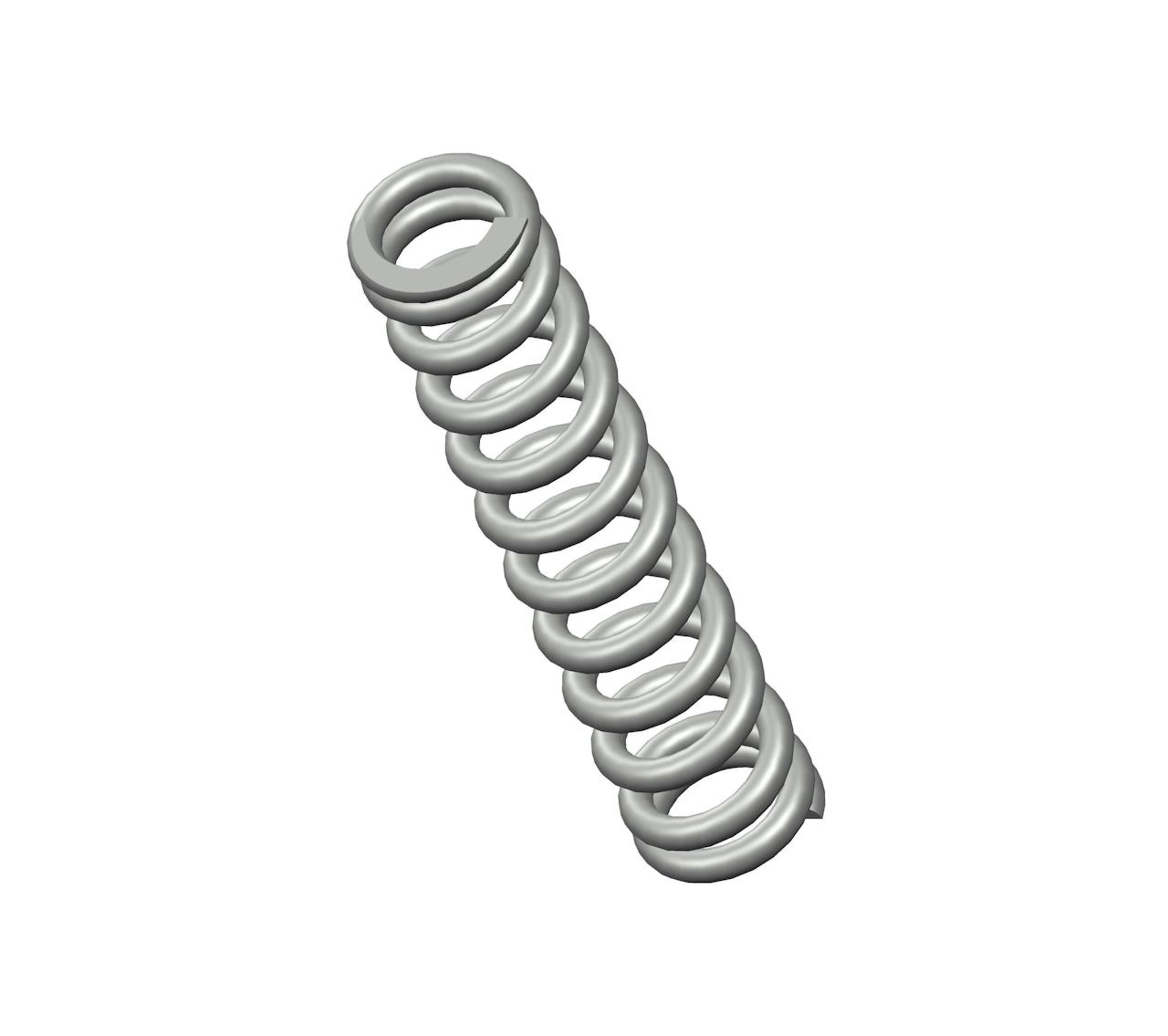

Compression spring manufactured from spring steel with 12 coils and closed & ground ends. This spring features an O.D. of 0.281", and an I.D. of 0.181".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-9 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.38 in |
| Inside Diameter | 0.181 in |
| Material | Spring Steel |
| Outside Diameter | 0.281 in |
| Part Type | Standard |
| Rate | 73 lbs/in |
| SKU | HH-9CS |
| Solid Length | 0.6 in |
| Suggested Max Deflection | 0.21 in |
| Suggested Max Load | 15 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.05 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-9 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 35.05 mm |
| Inside Diameter | 4.6 mm |
| Material | Spring Steel |
| Outside Diameter | 7.14 mm |
| Part Type | Standard |
| Rate | 12.78 N/mm |
| SKU | HH-9CS |
| Solid Length | 15.24 mm |
| Suggested Max Deflection | 5.33 mm |
| Suggested Max Load | 66.72 N |
| Total Coils | 12 |
| Wire Diameter | 1.27 mm |
The HH-9 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The HH-9CS compression spring is designed with a free length of 1.13" total of 13 coils, and a rate of 0.82 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The HH-9 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The HH-9CS compression spring is designed with a free length of 1.13" total of 13 coils, and a rate of 0.82 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The HH-9 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
