71385SCS - 2.5" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

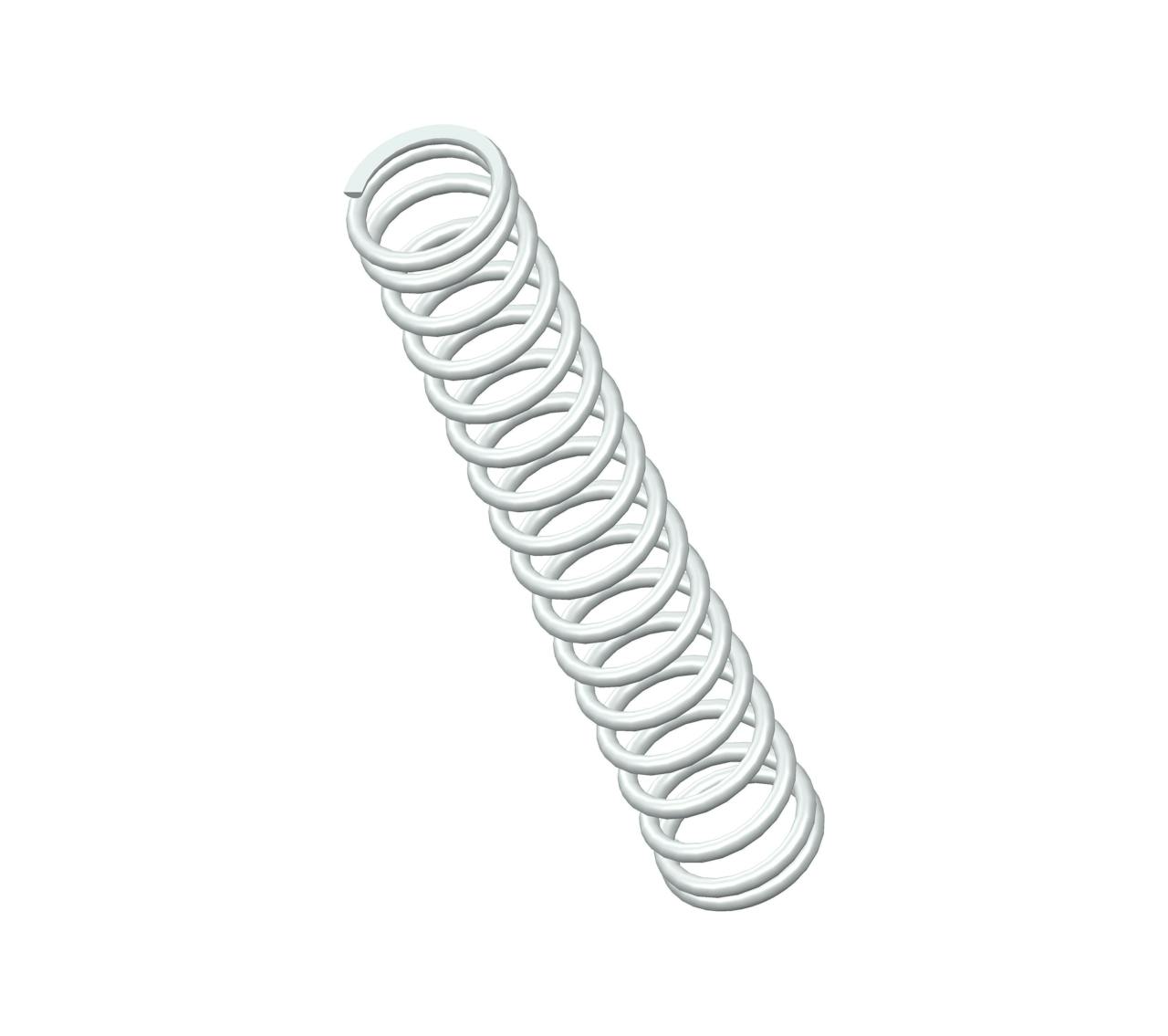

Compression spring manufactured from 302/304 stainless steel with 16.7 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.324".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71385S
Ends Closed & Ground
Finish None
Free Length 2.5 in
Inside Diameter 0.324 in
Material 302/304 Stainless Steel
Outside Diameter 0.42 in
Part Type Standard
Rate 8.4 lbs/in
SKU 71385SCS
Solid Length 0.791 in
Suggested Max Deflection 1.06 in
Suggested Max Load 8.9 lbf
Total Coils 16.7
Wire Diameter 0.0475 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71385S
Ends Closed & Ground
Finish None
Free Length 63.5 mm
Inside Diameter 8.23 mm
Material 302/304 Stainless Steel
Outside Diameter 10.67 mm
Part Type Standard
Rate 1.47 N/mm
SKU 71385SCS
Solid Length 20.09 mm
Suggested Max Deflection 26.92 mm
Suggested Max Load 39.59 N
Total Coils 16.7
Wire Diameter 1.21 mm
The 71385SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0475" diameter 302/304 stainless steel, the 71385S spring design exhibits reliable strength across its 16.7 active coils, withstanding repeated compression cycles with a maximum load of 8.9 lbf without succumbing to fatigue.

We manufacture the 71385S design to provide a compression spring that is 2.5" long at rest and provides a consistent rate of 8.4 lbs/in along its recommended maximum of 1.06" deflection. For best results, your application should fully accommodate the inner (0.324") and outer (0.42") diameters of this spring and be designed for its closed & ground end configuration.
