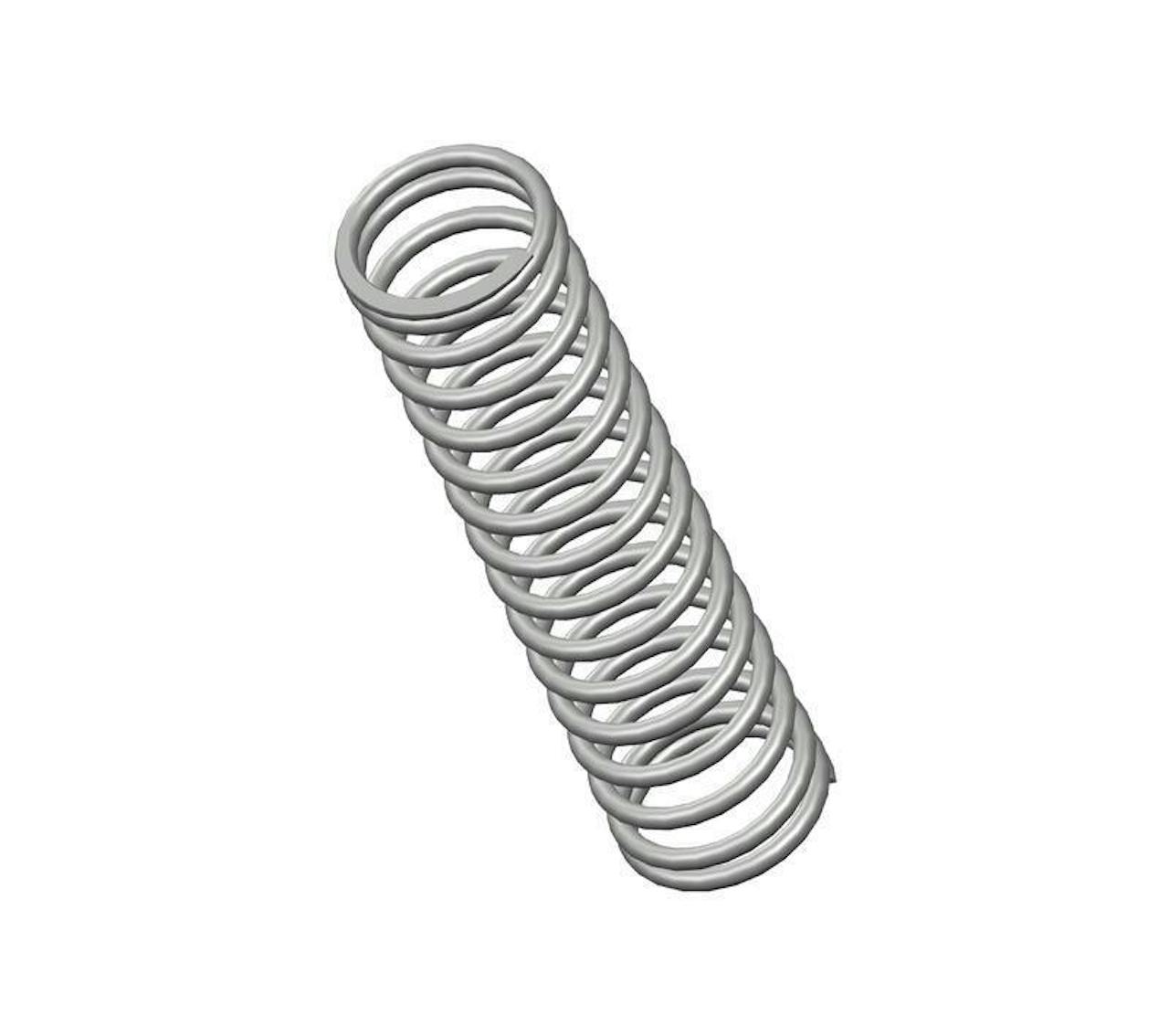

73434CS - 16" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 15.9 coils and closed & ground ends. This spring features an O.D. of 3.906", and an I.D. of 3.12".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73434
Ends Closed & Ground
Finish None
Free Length 16 in
Inside Diameter 3.12 in
Material Oil Tempered
Outside Diameter 3.906 in
Part Type Standard
Rate 57 lbs/in
SKU 73434CS
Solid Length 6.24 in
Suggested Max Deflection 7.6 in
Suggested Max Load 433 lbf
Total Coils 15.9
Wire Diameter 0.393 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73434
Ends Closed & Ground
Finish None
Free Length 406.4 mm
Inside Diameter 79.25 mm
Material Oil Tempered
Outside Diameter 99.21 mm
Part Type Standard
Rate 9.98 N/mm
SKU 73434CS
Solid Length 158.5 mm
Suggested Max Deflection 193.04 mm
Suggested Max Load 1925.98 N
Total Coils 15.9
Wire Diameter 9.98 mm
The compression spring 73434CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73434 compression spring design exhibits exceptional tensile strength and resilience.

The 73434 design is manufactured with a free length of 16", with an outer diameter of 3.906", an inner diameter of 3.12", and a total of 15.9 coils, expertly designed to deliver consistent compression characteristics including a rate of 57 lbs/in.

The 73434CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73434 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
