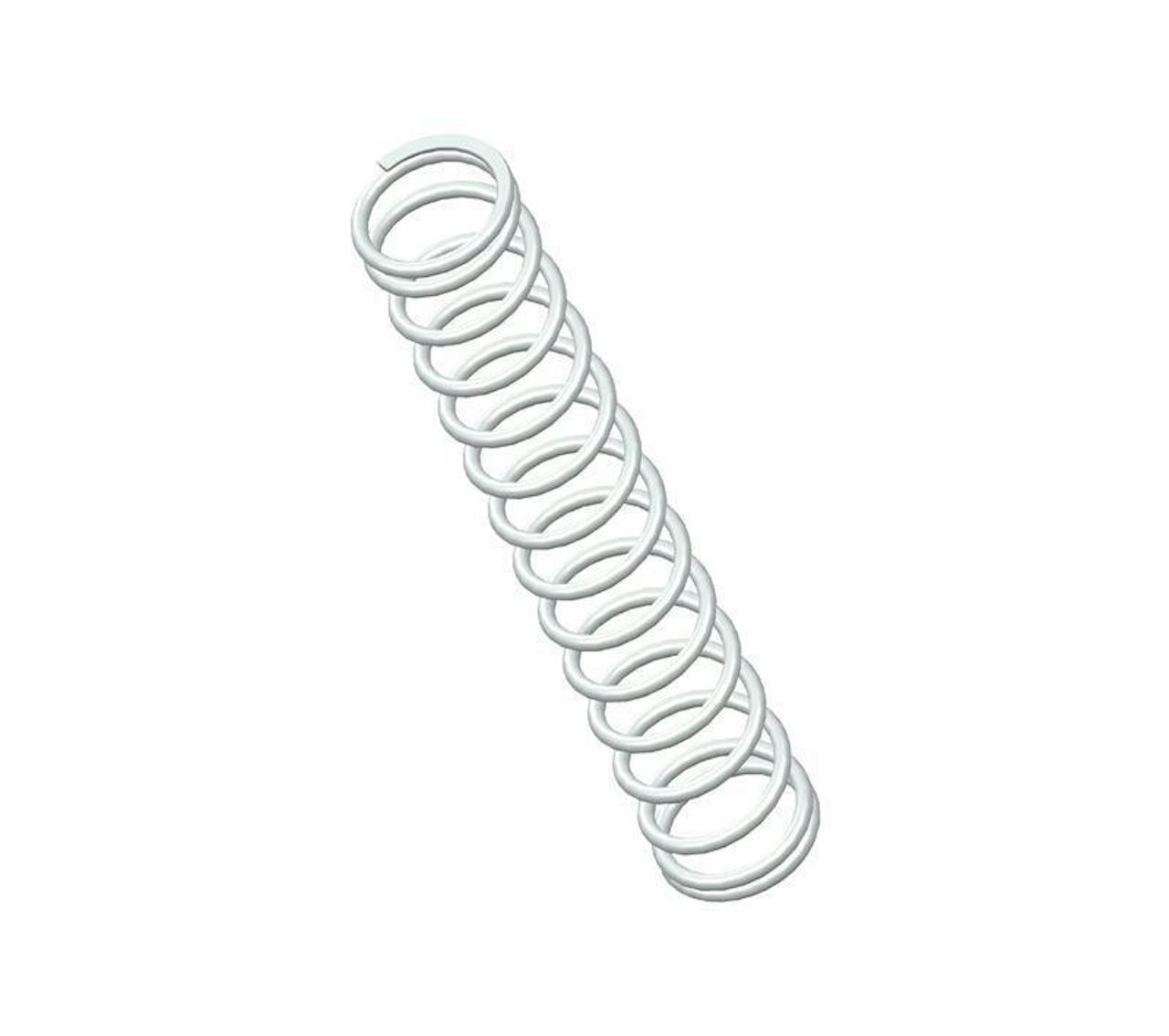

70842SCS - 1.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 14.8 coils and closed & ground ends. This spring features an O.D. of 0.3", and an I.D. of 0.24".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 70842S
Ends Closed & Ground
Finish None
Free Length 1.75 in
Inside Diameter 0.24 in
Material 302/304 Stainless Steel
Outside Diameter 0.3 in
Part Type Standard
Rate 4 lbs/in
SKU 70842SCS
Solid Length 0.44 in
Suggested Max Deflection 0.85 in
Suggested Max Load 3.4 lbf
Total Coils 14.8
Wire Diameter 0.03 in
The 70842SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.03" diameter 302/304 stainless steel, the 70842S spring design exhibits reliable strength across its 14.8 active coils, withstanding repeated compression cycles with a maximum load of 3.4 lbf without succumbing to fatigue.

We manufacture the 70842S design to provide a compression spring that is 1.75" long at rest and provides a consistent rate of 4 lbs/in along its recommended maximum of 0.85" deflection. For best results, your application should fully accommodate the inner (0.24") and outer (0.3") diameters of this spring and be designed for its closed & ground end configuration.
