B11-57CS - 0.84" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

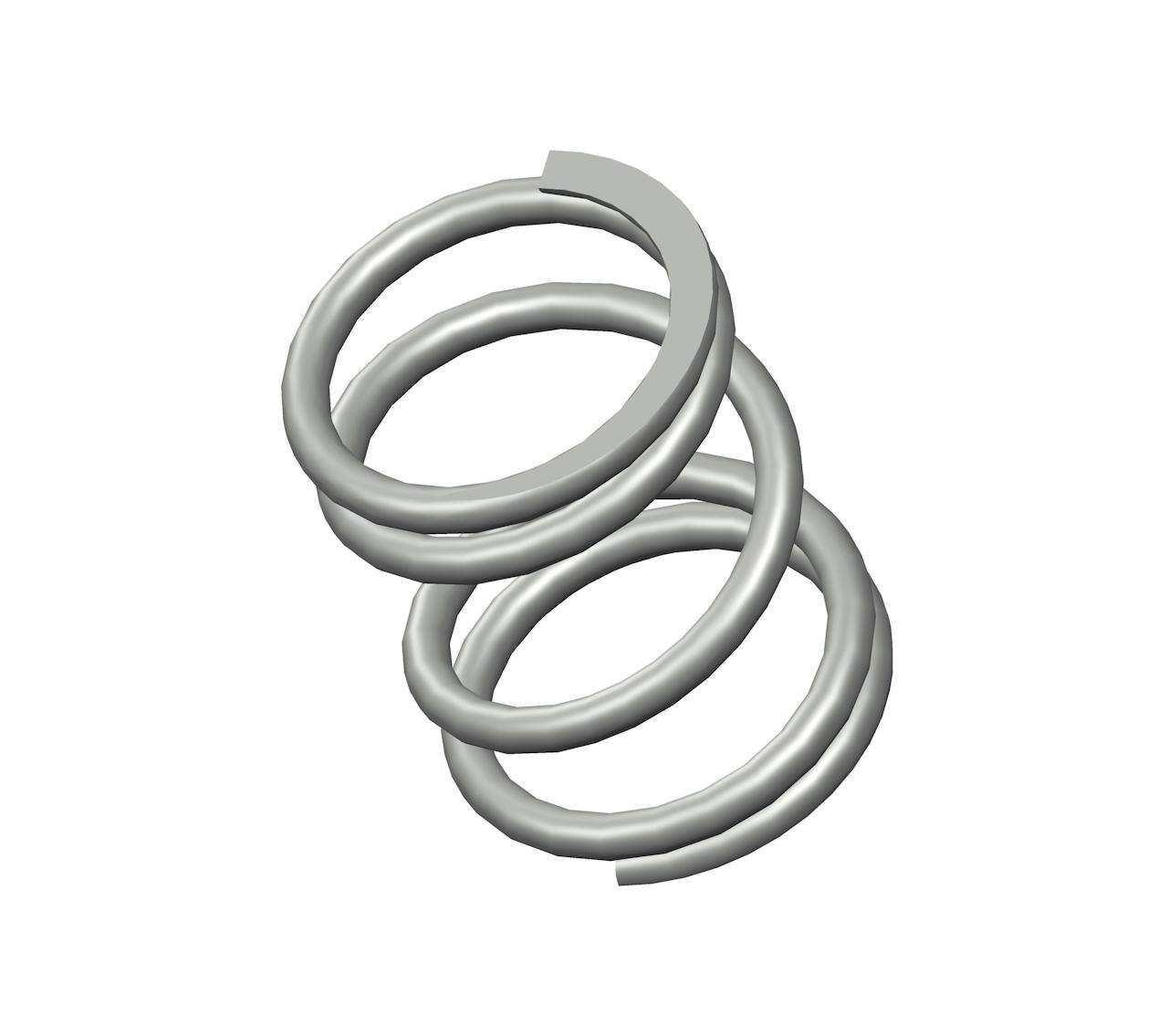

Compression spring manufactured from spring steel with 4.5 coils and closed & ground ends. This spring features an O.D. of 0.656", and an I.D. of 0.52".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B11-57 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.84 in |
| Inside Diameter | 0.52 in |
| Material | Spring Steel |
| Outside Diameter | 0.656 in |
| Part Type | Standard |
| Rate | 60 lbs/in |
| SKU | B11-57CS |
| Solid Length | 0.31 in |
| Suggested Max Deflection | 0.28 in |
| Suggested Max Load | 17 lbf |
| Total Coils | 4.5 |
| Wire Diameter | 0.068 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B11-57 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 21.34 mm |
| Inside Diameter | 13.21 mm |
| Material | Spring Steel |
| Outside Diameter | 16.66 mm |
| Part Type | Standard |
| Rate | 10.51 N/mm |
| SKU | B11-57CS |
| Solid Length | 7.87 mm |
| Suggested Max Deflection | 7.11 mm |
| Suggested Max Load | 75.62 N |
| Total Coils | 4.5 |
| Wire Diameter | 1.73 mm |
The compression spring B11-57CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B11-57 compression spring design exhibits exceptional tensile strength and resilience.
The B11-57 design is manufactured with a free length of 0.84", with an outer diameter of 0.656", an inner diameter of 0.52", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 60 lbs/in.
The B11-57CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B11-57 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B11-57 design is manufactured with a free length of 0.84", with an outer diameter of 0.656", an inner diameter of 0.52", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 60 lbs/in.
The B11-57CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B11-57 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
