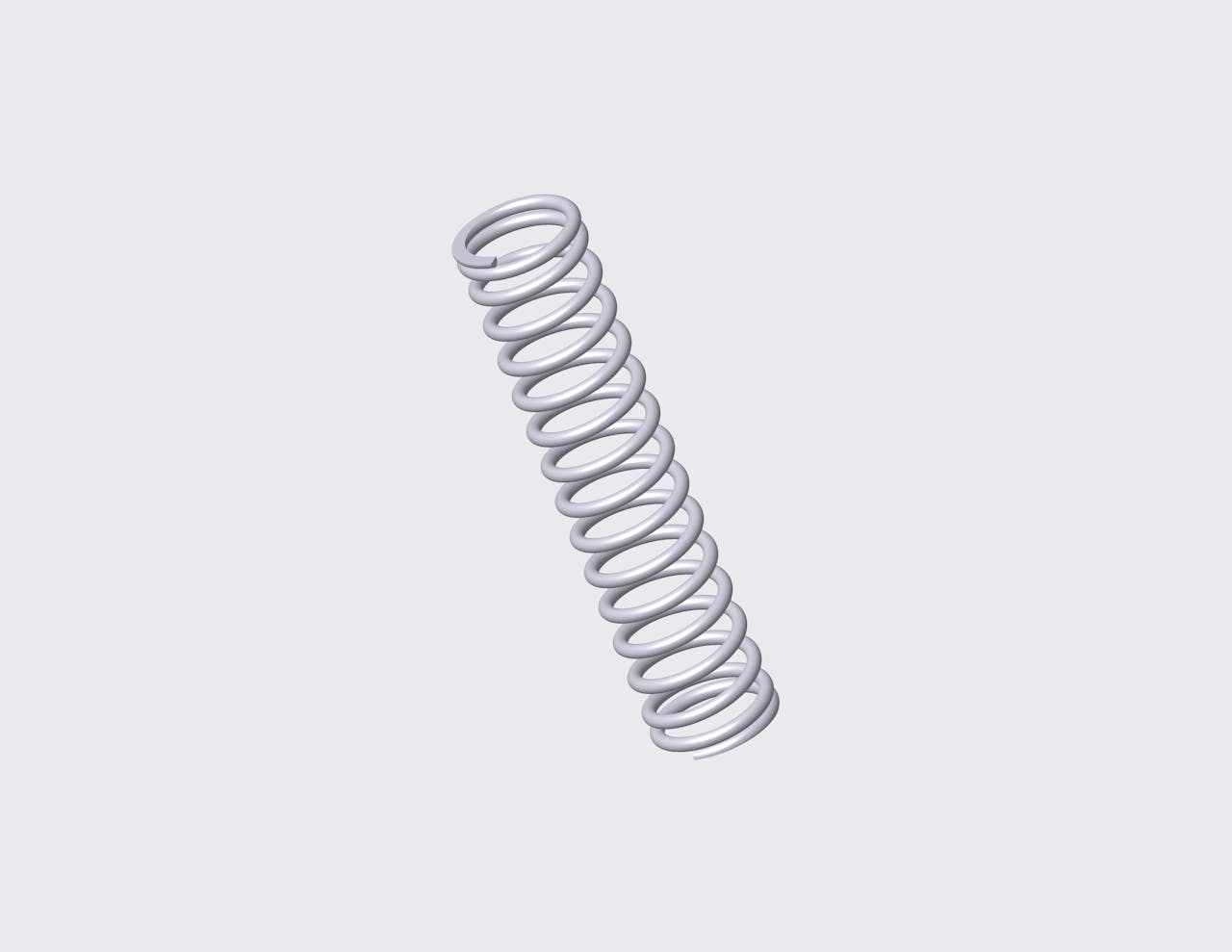

68401SCS - 1.38" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 16 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.242".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 68401S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 1.38 in |
| Inside Diameter | 0.242 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 6.304 lbs/in |
| SKU | 68401SCS |
| Solid Length | 0.595 in |
| Suggested Max Deflection | 0.668 in |
| Suggested Max Load | 4.211 lbf |
| Total Coils | 16 |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 68401S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 35.05 mm |
| Inside Diameter | 6.15 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 1.1 N/mm |
| SKU | 68401SCS |
| Solid Length | 15.11 mm |
| Suggested Max Deflection | 16.97 mm |
| Suggested Max Load | 18.73 N |
| Total Coils | 16 |
| Wire Diameter | 0.89 mm |
The 68401SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.035" diameter 316 stainless steel, the 68401S spring design exhibits reliable strength across its 16 active coils, withstanding repeated compression cycles with a maximum load of 4.211 lbf without succumbing to fatigue.
We manufacture the 68401S design to provide a compression spring that is 1.38" long at rest and provides a consistent rate of 6.304 lbs/in along its recommended maximum of 0.668" deflection. For best results, your application should fully accommodate the inner (0.242") and outer (0.312") diameters of this spring and be designed for its closed end configuration.
We manufacture the 68401S design to provide a compression spring that is 1.38" long at rest and provides a consistent rate of 6.304 lbs/in along its recommended maximum of 0.668" deflection. For best results, your application should fully accommodate the inner (0.242") and outer (0.312") diameters of this spring and be designed for its closed end configuration.
