Century Spring

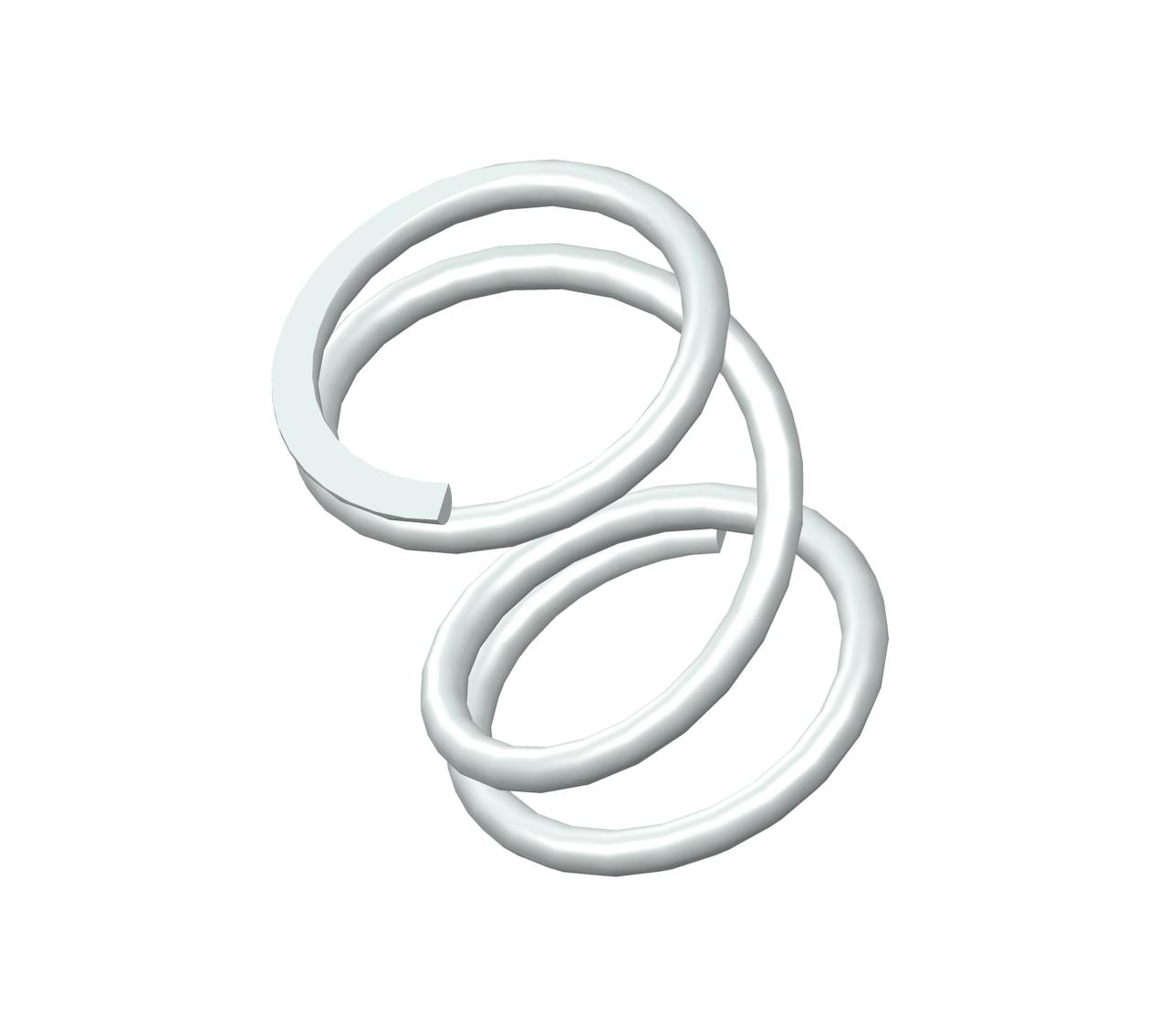

S-58CS - 0.78" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 3.6 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.501".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-58
Ends Closed & Ground
Finish None
Free Length 0.78 in
Inside Diameter 0.501 in
Material 302/304 Stainless Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 69 lbs/in
SKU S-58CS
Solid Length 0.222 in
Suggested Max Deflection 0.19 in
Suggested Max Load 13.1 lbf
Total Coils 3.6
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-58
Ends Closed & Ground
Finish None
Free Length 19.81 mm
Inside Diameter 12.73 mm
Material 302/304 Stainless Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 12.08 N/mm
SKU S-58CS
Solid Length 5.64 mm
Suggested Max Deflection 4.83 mm
Suggested Max Load 58.27 N
Total Coils 3.6
Wire Diameter 1.59 mm
The S-58CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0625" diameter 302/304 stainless steel, the S-58 spring design exhibits reliable strength across its 3.6 active coils, withstanding repeated compression cycles with a maximum load of 13.1 lbf without succumbing to fatigue.

We manufacture the S-58 design to provide a compression spring that is 0.78" long at rest and provides a consistent rate of 69 lbs/in along its recommended maximum of 0.19" deflection. For best results, your application should fully accommodate the inner (0.501") and outer (0.625") diameters of this spring and be designed for its closed & ground end configuration.
