Century Spring

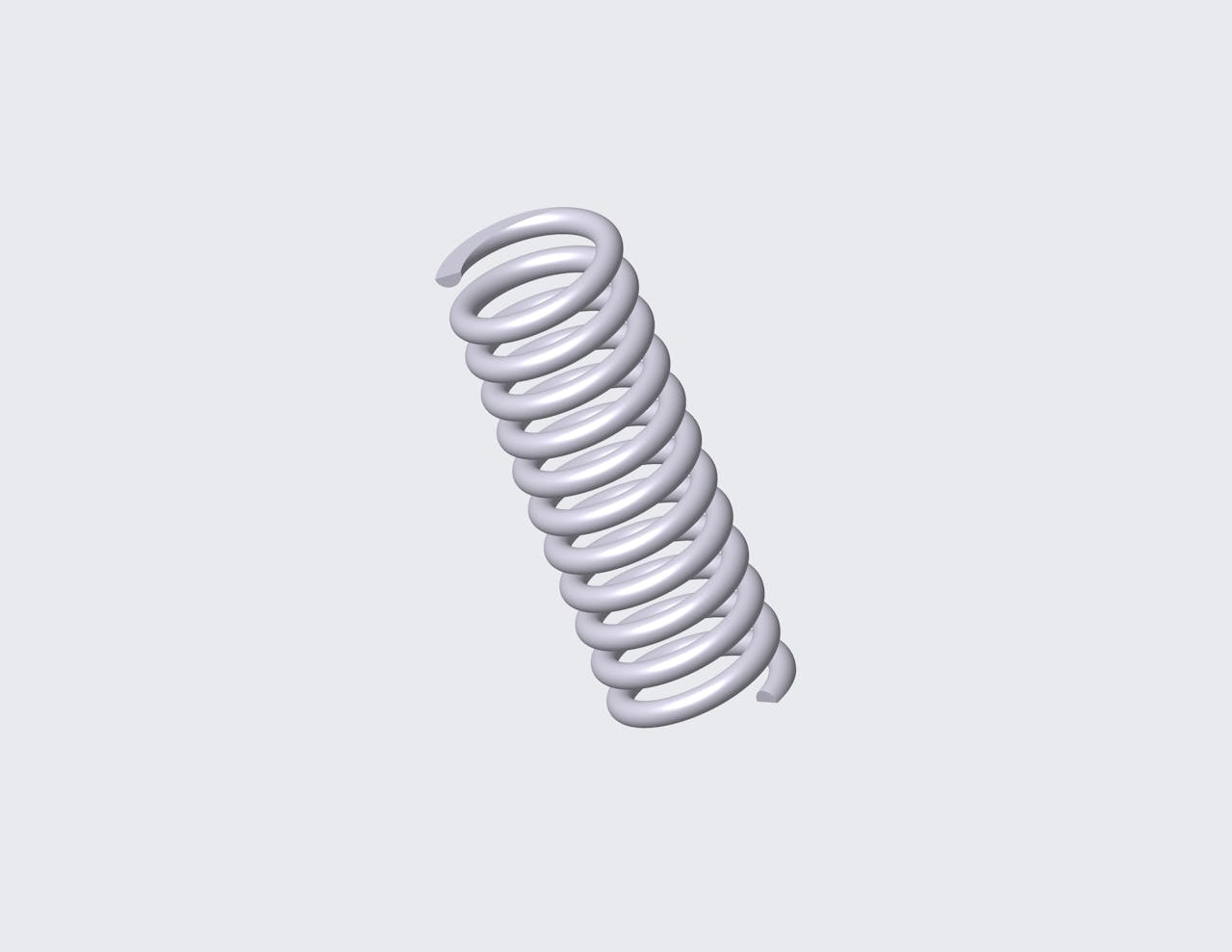

68250SCS - 0.78" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 11 coils and closed & ground ends. This spring features an O.D. of 0.281", and an I.D. of 0.201".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 68250S
Ends Closed & Ground
Finish Passivated
Free Length 0.78 in
Inside Diameter 0.201 in
Material 316 Stainless Steel
Outside Diameter 0.281 in
Part Type Standard
Rate 25.401 lbs/in
SKU 68250SCS
Solid Length 0.44 in
Suggested Max Deflection 0.27 in
Suggested Max Load 6.858 lbf
Total Coils 11
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 68250S
Ends Closed & Ground
Finish Passivated
Free Length 19.81 mm
Inside Diameter 5.11 mm
Material 316 Stainless Steel
Outside Diameter 7.14 mm
Part Type Standard
Rate 4.45 N/mm
SKU 68250SCS
Solid Length 11.18 mm
Suggested Max Deflection 6.86 mm
Suggested Max Load 30.5 N
Total Coils 11
Wire Diameter 1.02 mm
The 68250SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.04" diameter 316 stainless steel, the 68250S spring design exhibits reliable strength across its 11 active coils, withstanding repeated compression cycles with a maximum load of 6.858 lbf without succumbing to fatigue.

We manufacture the 68250S design to provide a compression spring that is 0.78" long at rest and provides a consistent rate of 25.401 lbs/in along its recommended maximum of 0.27" deflection. For best results, your application should fully accommodate the inner (0.201") and outer (0.281") diameters of this spring and be designed for its closed & ground end configuration.
