Century Spring

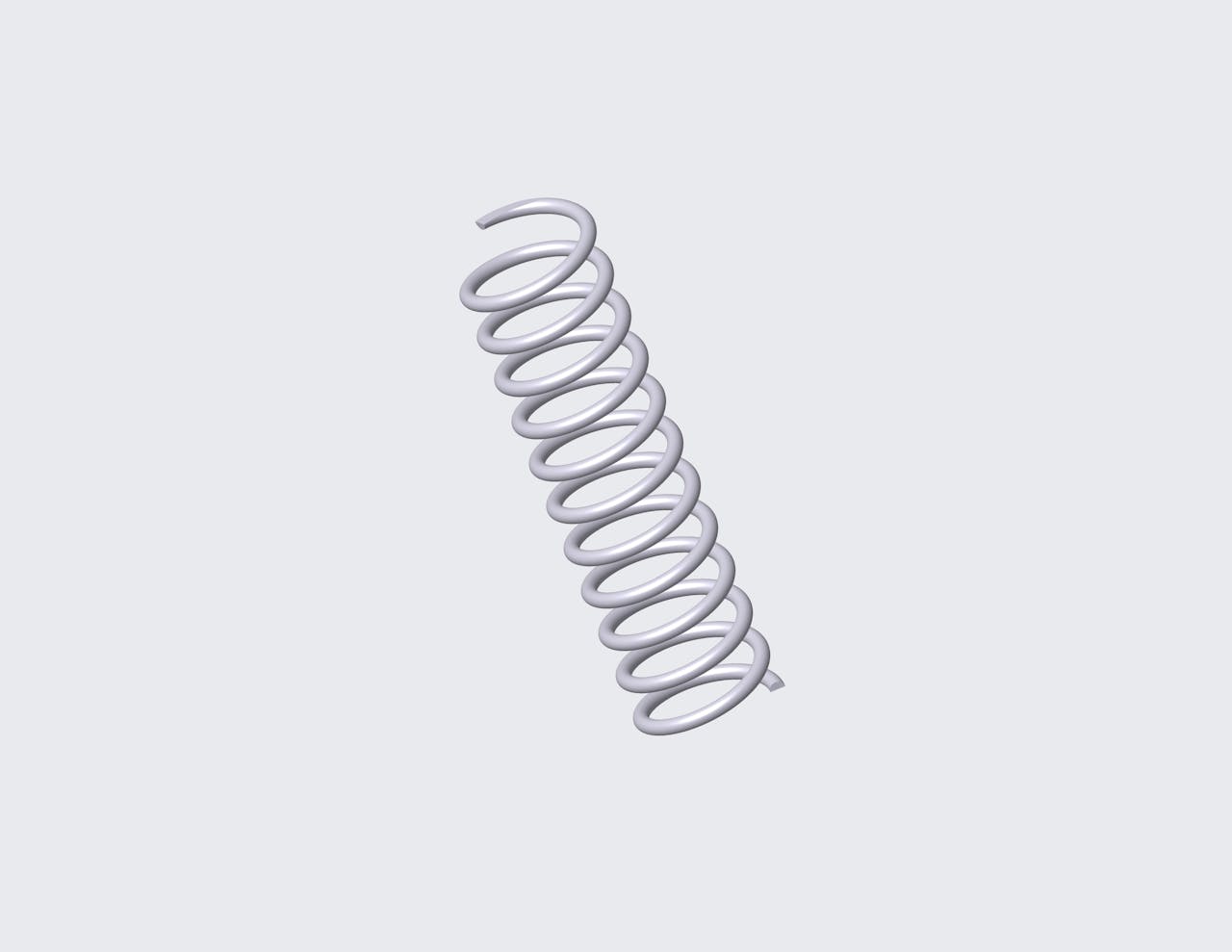

67598SCS - 1.34" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 11 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.284".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67598S
Ends Closed & Ground
Finish Passivated
Free Length 1.34 in
Inside Diameter 0.284 in
Material 316 Stainless Steel
Outside Diameter 0.36 in
Part Type Standard
Rate 8.674 lbs/in
SKU 67598SCS
Solid Length 0.42 in
Suggested Max Deflection 0.541 in
Suggested Max Load 4.693 lbf
Total Coils 11
Wire Diameter 0.038 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67598S
Ends Closed & Ground
Finish Passivated
Free Length 34.04 mm
Inside Diameter 7.21 mm
Material 316 Stainless Steel
Outside Diameter 9.14 mm
Part Type Standard
Rate 1.52 N/mm
SKU 67598SCS
Solid Length 10.67 mm
Suggested Max Deflection 13.74 mm
Suggested Max Load 20.87 N
Total Coils 11
Wire Diameter 0.97 mm
The 67598S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 67598SCS compression spring is designed with a free length of 1.28" total of 13 coils, and a rate of 2.216 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 67598S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
