Century Spring

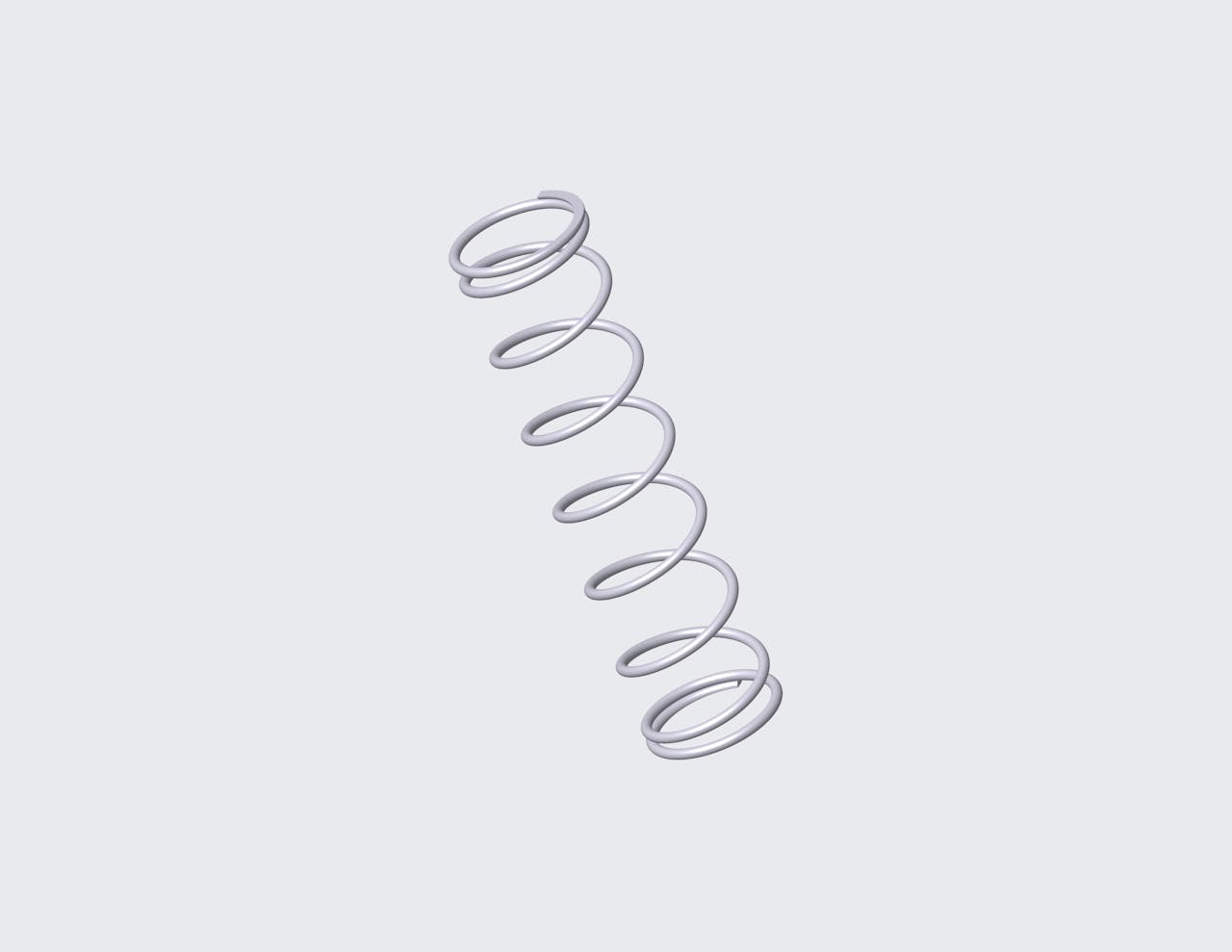

67410SCS - 1.25" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 9 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.264".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67410S
Ends Closed
Finish Passivated
Free Length 1.25 in
Inside Diameter 0.264 in
Material 316 Stainless Steel
Outside Diameter 0.312 in
Part Type Standard
Rate 2.48 lbs/in
SKU 67410SCS
Solid Length 0.24 in
Suggested Max Deflection 0.558 in
Suggested Max Load 1.384 lbf
Total Coils 9
Wire Diameter 0.024 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67410S
Ends Closed
Finish Passivated
Free Length 31.75 mm
Inside Diameter 6.71 mm
Material 316 Stainless Steel
Outside Diameter 7.92 mm
Part Type Standard
Rate 0.43 N/mm
SKU 67410SCS
Solid Length 6.1 mm
Suggested Max Deflection 14.17 mm
Suggested Max Load 6.16 N
Total Coils 9
Wire Diameter 0.61 mm
The compression spring 67410SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 67410S compression spring design exhibits exceptional tensile strength and resilience.

The 67410S design is manufactured with a free length of 1.25", with an outer diameter of 0.312", an inner diameter of 0.264", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.48 lbs/in.

The 67410SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 67410S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
