Century Spring

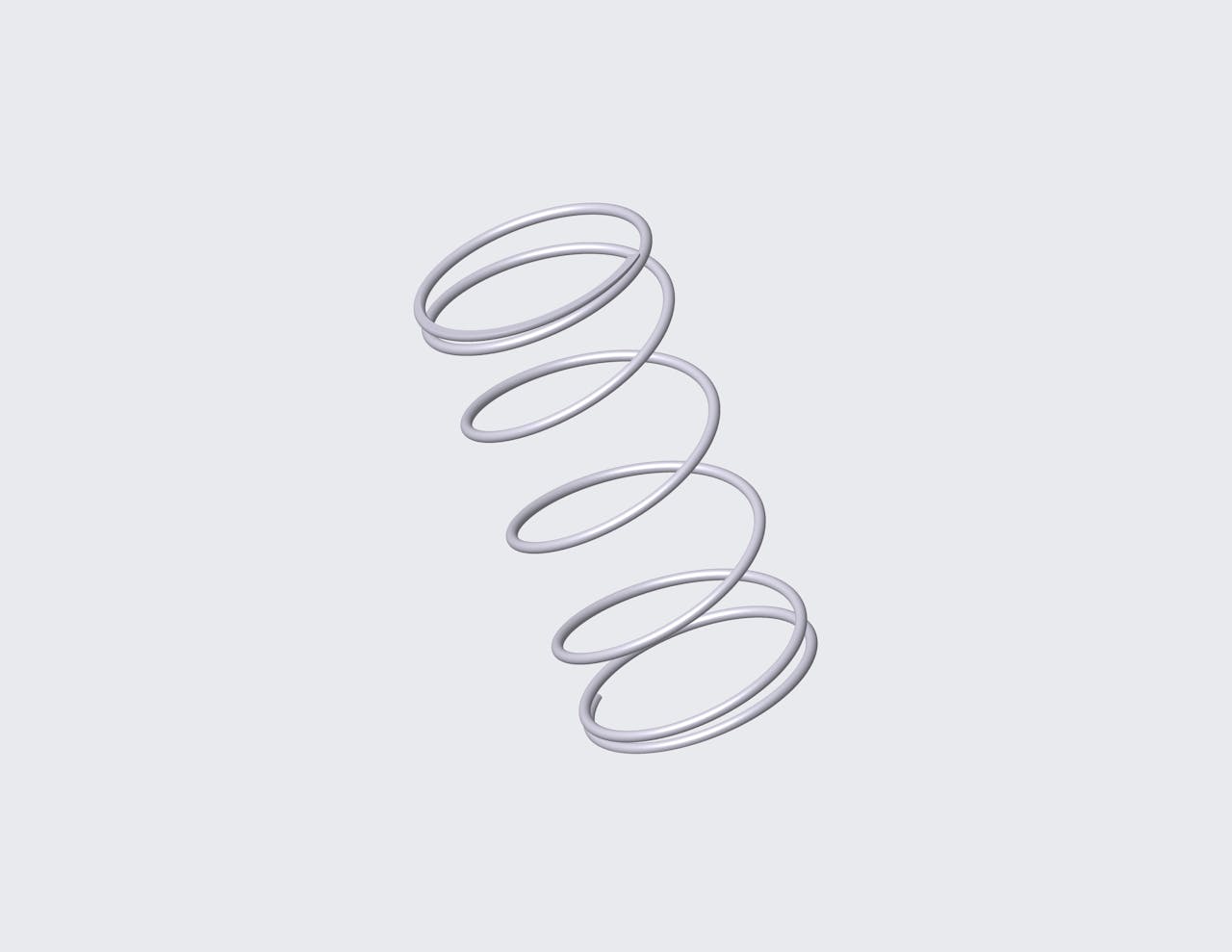

67278SCS - 0.59" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 6.5 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.268".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67278S
Ends Closed
Finish Passivated
Free Length 0.59 in
Inside Diameter 0.268 in
Material 316 Stainless Steel
Outside Diameter 0.296 in
Part Type Standard
Rate 0.476 lbs/in
SKU 67278SCS
Solid Length 0.11 in
Suggested Max Deflection 0.485 in
Suggested Max Load 0.231 lbf
Total Coils 6.5
Wire Diameter 0.014 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67278S
Ends Closed
Finish Passivated
Free Length 14.99 mm
Inside Diameter 6.81 mm
Material 316 Stainless Steel
Outside Diameter 7.52 mm
Part Type Standard
Rate 0.08 N/mm
SKU 67278SCS
Solid Length 2.79 mm
Suggested Max Deflection 12.32 mm
Suggested Max Load 1.03 N
Total Coils 6.5
Wire Diameter 0.36 mm
The 67278SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.014" diameter 316 stainless steel, the 67278S spring design exhibits reliable strength across its 6.5 active coils, withstanding repeated compression cycles with a maximum load of 0.231 lbf without succumbing to fatigue.

We manufacture the 67278S design to provide a compression spring that is 0.59" long at rest and provides a consistent rate of 0.476 lbs/in along its recommended maximum of 0.485" deflection. For best results, your application should fully accommodate the inner (0.268") and outer (0.296") diameters of this spring and be designed for its closed end configuration.
