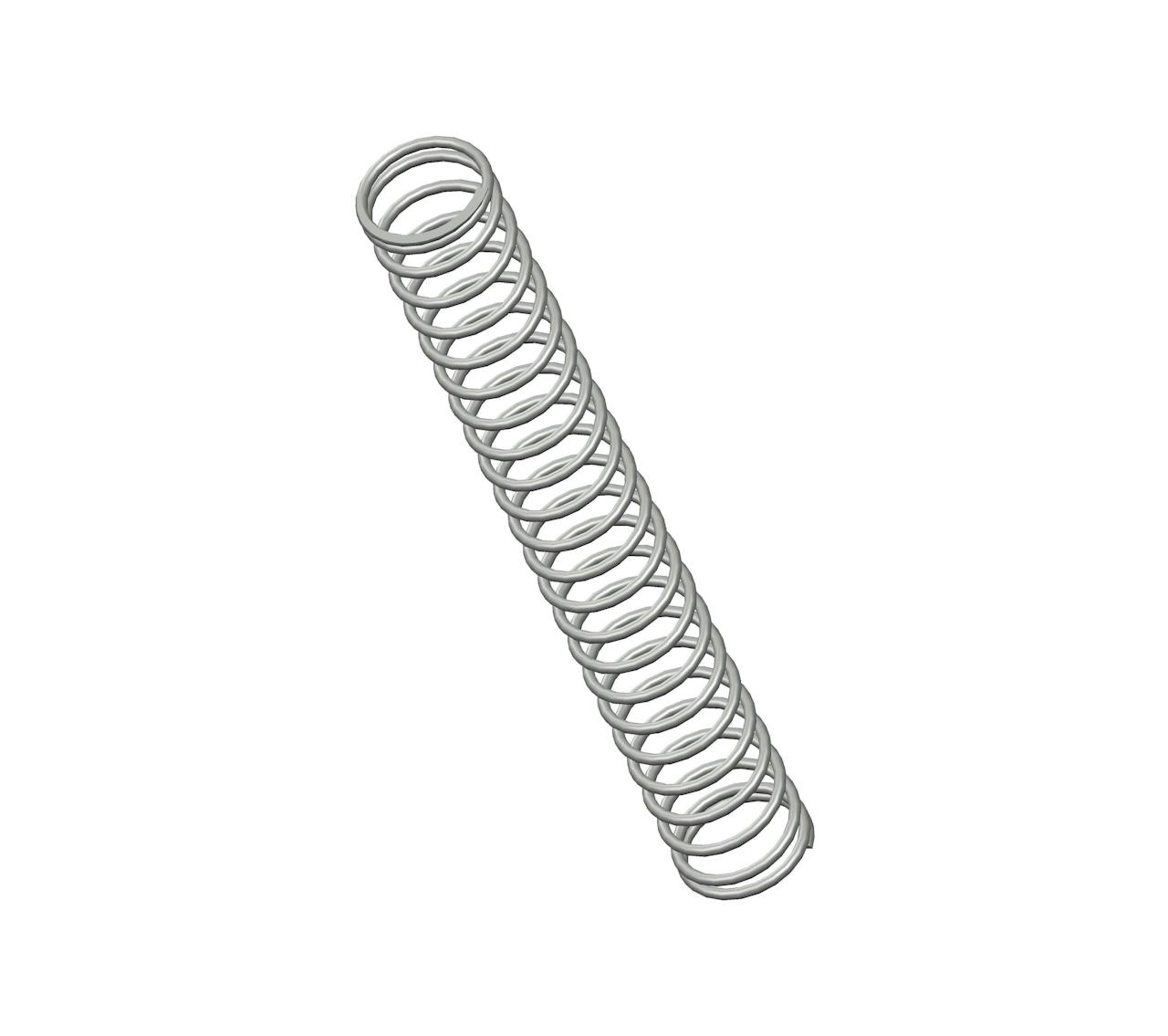

3377CS - 9.38" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 24 coils and closed ends. This spring features an O.D. of 1.266", and an I.D. of 1.052".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3377
Ends Closed
Finish Zinc
Free Length 9.38 in
Inside Diameter 1.052 in
Material Spring Steel
Outside Diameter 1.266 in
Part Type Standard
Rate 5.5 lbs/in
SKU 3377CS
Solid Length 2.68 in
Suggested Max Deflection 5.8 in
Suggested Max Load 32 lbf
Total Coils 24
Wire Diameter 0.107 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3377
Ends Closed
Finish Zinc
Free Length 238.25 mm
Inside Diameter 26.72 mm
Material Spring Steel
Outside Diameter 32.16 mm
Part Type Standard
Rate 0.96 N/mm
SKU 3377CS
Solid Length 68.07 mm
Suggested Max Deflection 147.32 mm
Suggested Max Load 142.34 N
Total Coils 24
Wire Diameter 2.72 mm
The 3377CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.107" diameter spring steel, the 3377 spring design exhibits reliable strength across its 24 active coils, withstanding repeated compression cycles with a maximum load of 32 lbf without succumbing to fatigue.

We manufacture the 3377 design to provide a compression spring that is 9.38" long at rest and provides a consistent rate of 5.5 lbs/in along its recommended maximum of 5.8" deflection. For best results, your application should fully accommodate the inner (1.052") and outer (1.266") diameters of this spring and be designed for its closed end configuration.
