Century Spring

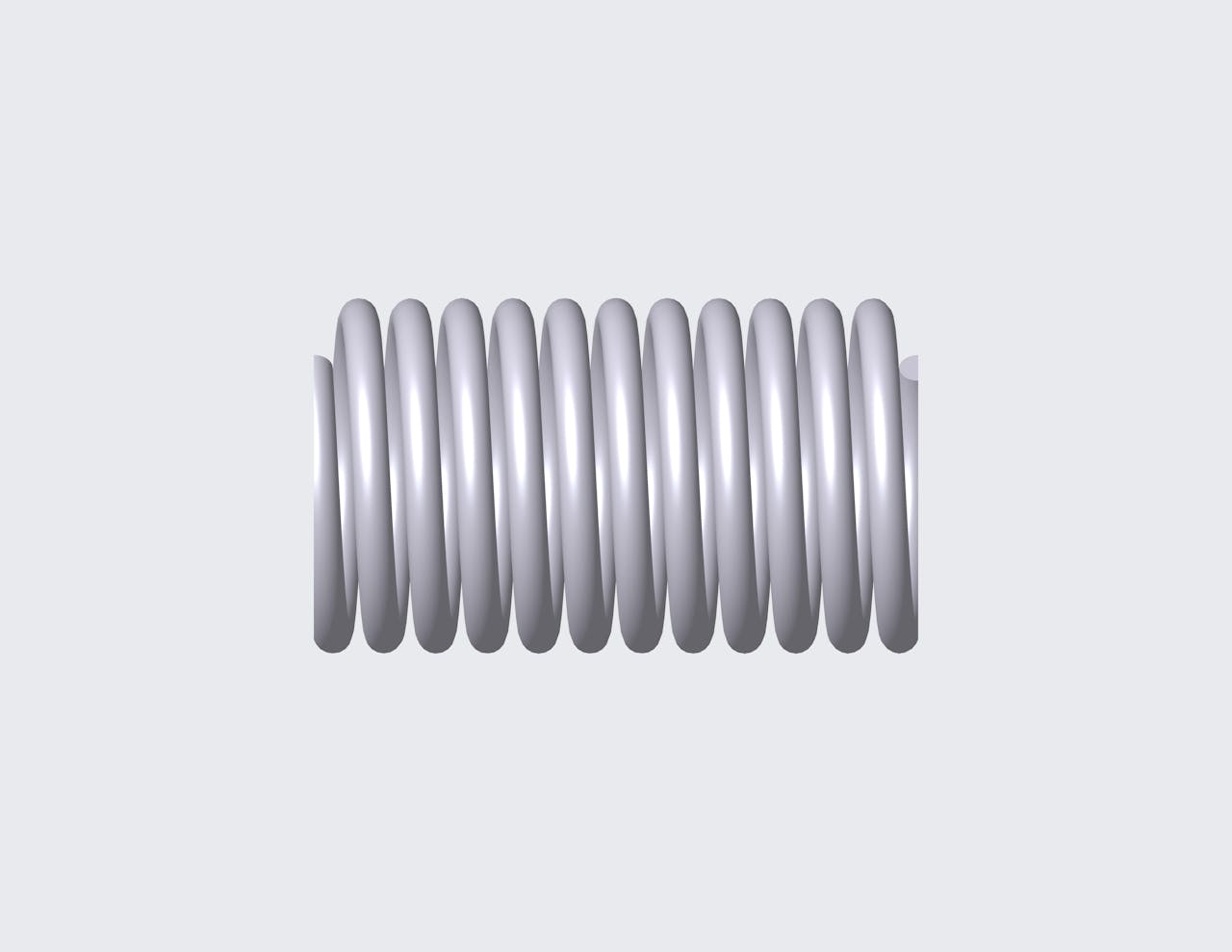

66695SCS - 1.63" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 29 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.128".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 66695S
Ends Closed
Finish Passivated
Free Length 1.63 in
Inside Diameter 0.128 in
Material 316 Stainless Steel
Outside Diameter 0.188 in
Part Type Standard
Rate 9.507 lbs/in
SKU 66695SCS
Solid Length 0.9 in
Suggested Max Deflection 0.45 in
Suggested Max Load 4.278 lbf
Total Coils 29
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 66695S
Ends Closed
Finish Passivated
Free Length 41.4 mm
Inside Diameter 3.25 mm
Material 316 Stainless Steel
Outside Diameter 4.78 mm
Part Type Standard
Rate 1.66 N/mm
SKU 66695SCS
Solid Length 22.86 mm
Suggested Max Deflection 11.43 mm
Suggested Max Load 19.03 N
Total Coils 29
Wire Diameter 0.76 mm
The compression spring 66695SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 66695S compression spring design exhibits exceptional tensile strength and resilience.

The 66695S design is manufactured with a free length of 1.63", with an outer diameter of 0.188", an inner diameter of 0.128", and a total of 29 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.507 lbs/in.

The 66695SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 66695S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
